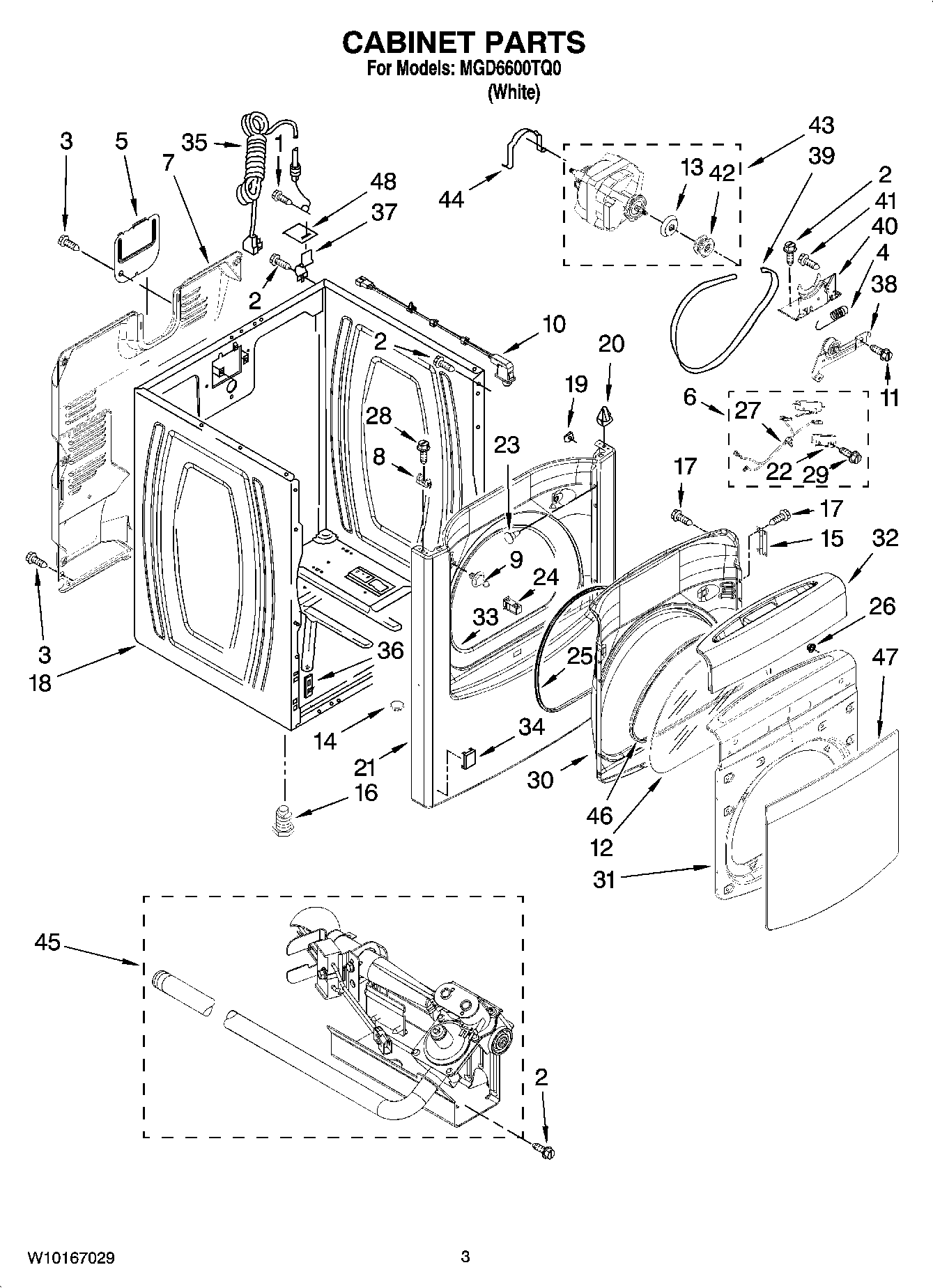

MGD6600TQ0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8533974
2	SCREW
3	Screw
4	MAY 3387374
5	MAY 8558833
6	MAY 8566208
7	MAY W10140148
8	LOCATOR, SNAP-DOWN
9	MAY 8572983
10	MAY 3978977
11	SCREW
12	MAY 8565015
13	MAY 8578538
14	Plug, Hole
15	HINGE ASSEMBLY (WHITE)
16	MAY 279810
16	MAY 3392100
17	MAY 342055
18	Cabinet (White)
19	Clip, Ground (2)
20	Lock-Top Front (2)
21	MAY 8565033
22	MAY 8564011
23	PLUG, HINGE HOLES
24	Catch, Door Assembly
25	MAY 8575027
26	WP308499 Whirlpool Nut
28	MAY W10100830
29	MAY 8539897
30	MAY 8565037
31	MAY W10116925
32	MAY W10111249
33	MAY W10044490
34	PLUG, FRONT PANEL (WHITE)
35	MAY 344020
36	MAY 3394083
37	MAY 238088
38	MAY 8547174
39	MAY 8547168
40	MAY 8547166
41	Bolt, 6-20 x 1 1/4
42	MAY 8578565
43	MAY 8566152
44	MAY 660658
45	Burner, Assembly 60 HZ (See Pages 7 & For Further Burner Breakdown )
46	MAY W10076060
47	MAY W10116398
48	Pad, Top Hinge (2)
