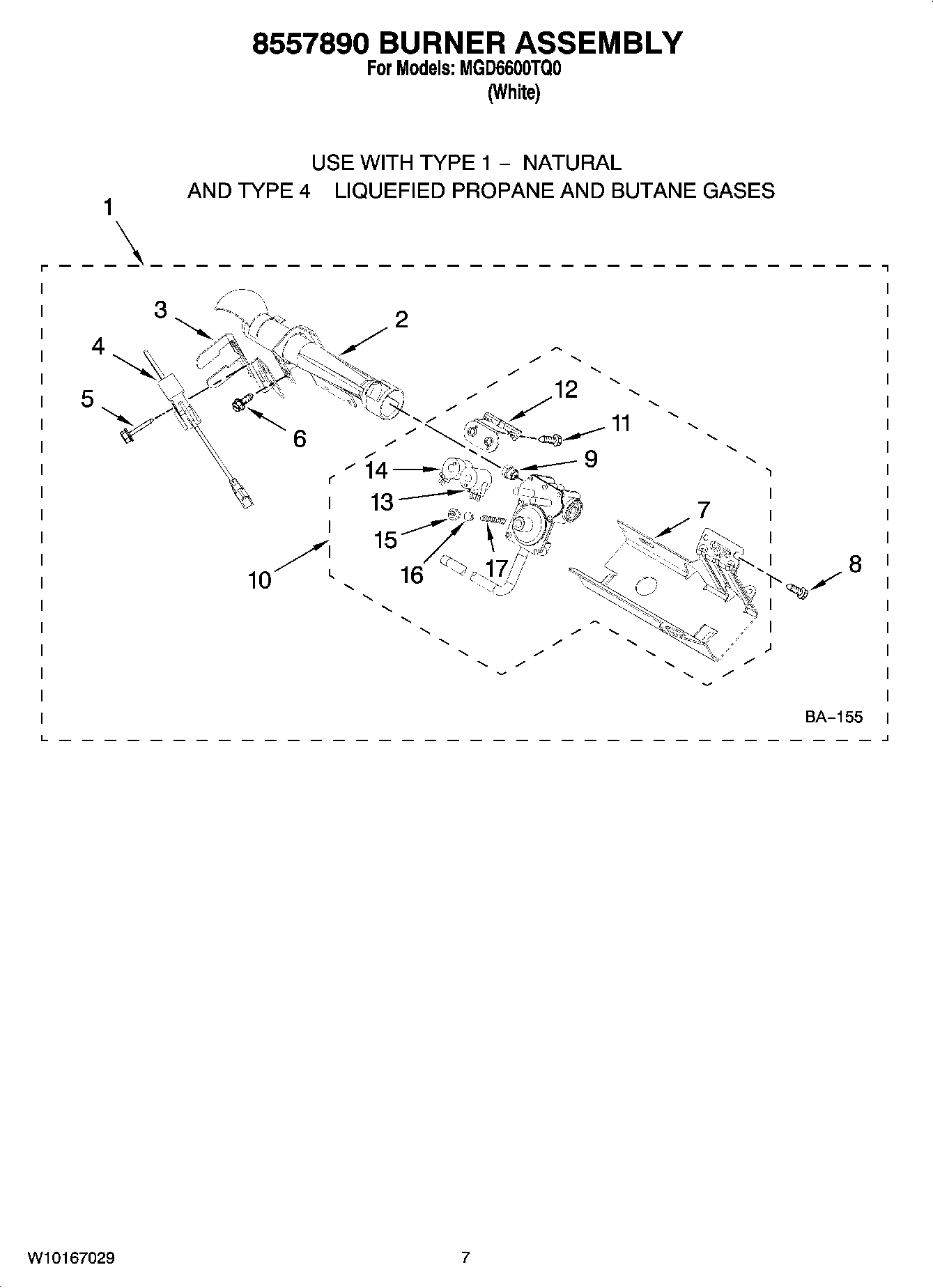

MGD6600TQ0 04 – 8557890 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 49572
NI	HOUS-CNTRL
NI	Connector, Hose
NI	Hose, Inlet 1 Ft. Hose
NI	MAY 8544761
NI	Hose, Inlet 6 Ft. Hose With Elbow
NI	Side Venting
NI	MAY W10071550
NI	ACCESSORY PARTS, WASHER, INLET HOSE
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	ACCESSORY PARTS, KIT, HOLD DOWN
1	Burner, Assembly 60 HZ (See Pages 7 & For Further Burner Breakdown )
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 8544751
8	SCREW
9	TYPE 1 (NATURAL)
9	MAY 234868
9	Orifice, Burner (Type 4 (Propane))
10	MAY 8281924
11	SCREW, COIL
12	MAY 8182790
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
