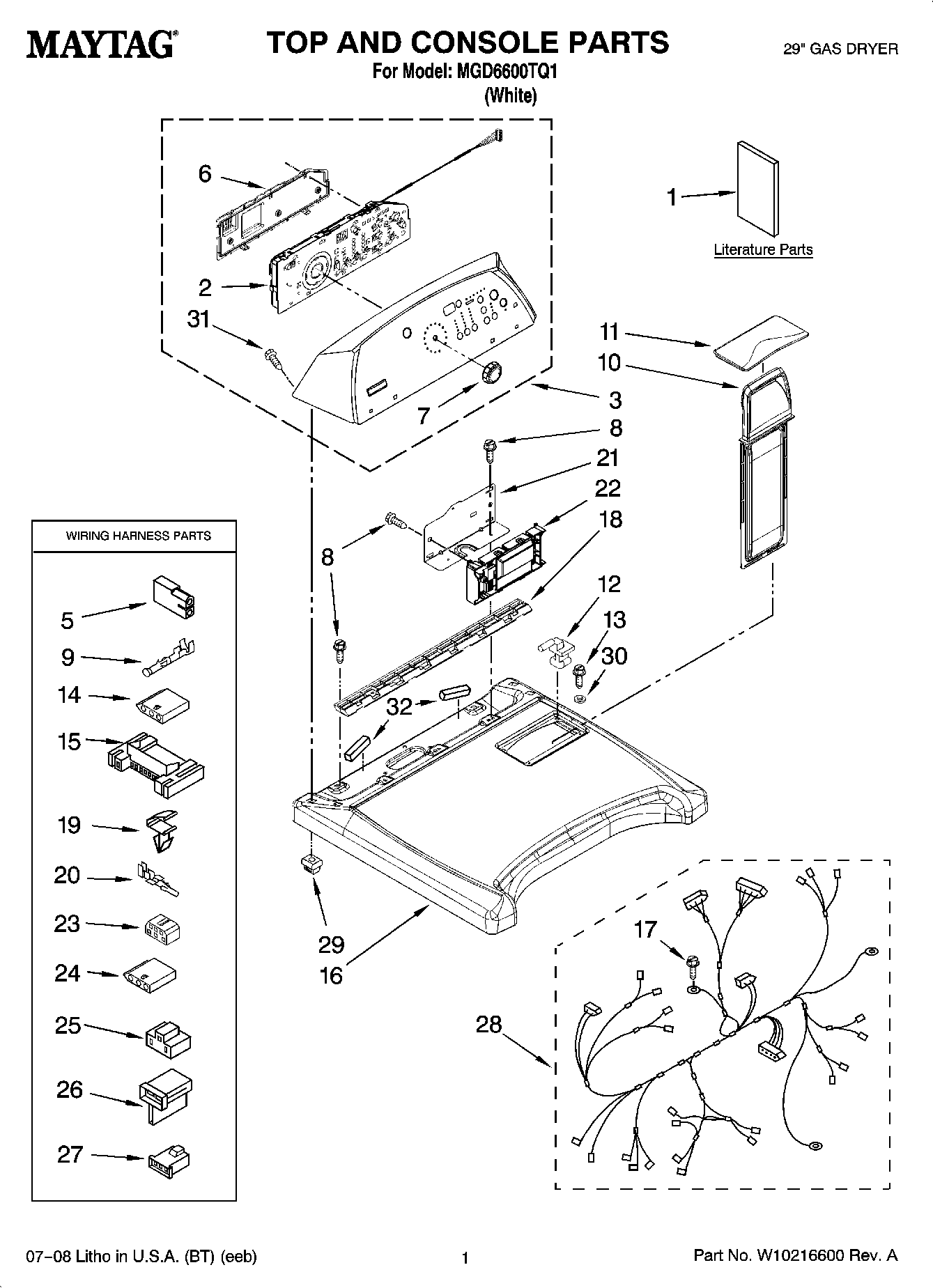

MGD6600TQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10156041
1	MAY W10165147
1	MAY W10160249
1	MAY W10160248
1	MAY W10160251
2	MAY W10051167
3	MAY W10131472
4	Screw, 6-19 x 3/64
5	Plug, 2-Way Terminal
6	Cover, Rear
7	MAY W10110196
8	Screw, 8-18 x 3/4
9	Terminal
10	MAY 8572270
11	MAY W10168227
12	MAY W10044470
12	MAY W10044480
13	Screw
14	MAY 3936144
15	CONNECTOR (MOTOR)
16	Top (White)
17	SCREW
18	MAY 8558863
19	CLIP, HARNESS
20	Terminal
21	MAY 8563853
22	MAY W10111616
23	Connector
24	Connector Sensor
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	MAY W10141981
29	SCREW, GROMMET
30	Washer (Top/Chute)
31	Screw
32	Seal-Foam
