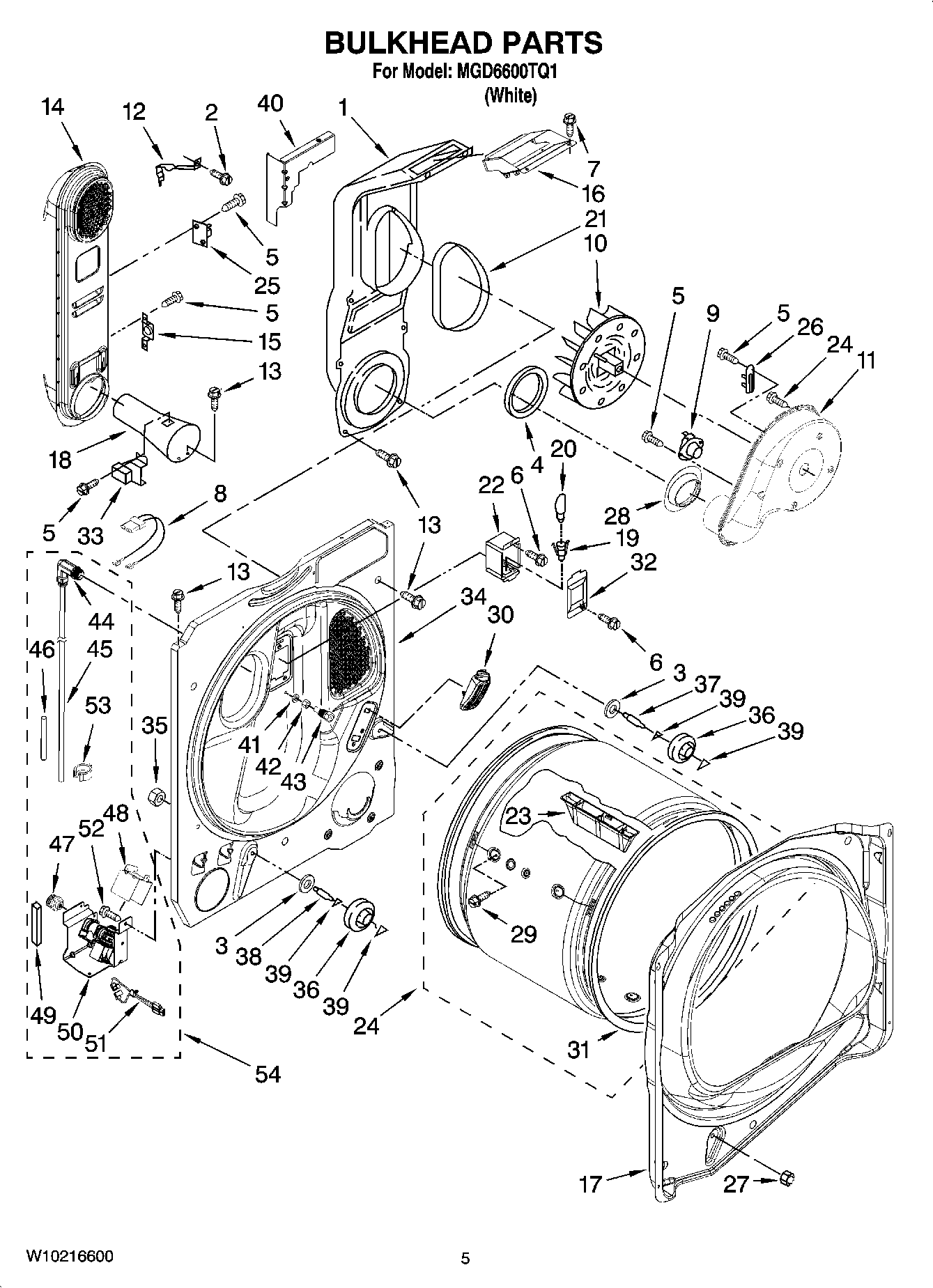

MGD6600TQ1 03 – BULKHEAD PARTSadmin2025-04-26T13:05:38+00:00MGD6600TQ1 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8544805 |
| 2 | Screw |
| 3 | WASHER |
| 4 | MAY 347139 |
| 5 | SCREW,8-18 X 3/8 |
| 6 | MAY 487909 |
| 7 | Screw |
| 8 | MAY 8539889 |
| 9 | THERMISTOR |
| 10 | Wheel, Blower |
| 11 | MAY 8577230 |
| 12 | MAY 8546149 |
| 13 | SCREW |
| 14 | MAY 8544803 |
| 15 | Thermostat, 205 F (96C) |
| 16 | MAY 8544810 |
| 17 | MAY 8558890 |
| 18 | FUNNEL, BURNER LIGHT |
| 19 | Socket Assembly |
| 20 | MAY 3406126 |
| 21 | MAY 8544813 |
| 22 | MAY 3977373 |
| 23 | MAY 8565688 |
| 24 | MAY 8557270 |
| 25 | MAY 280010 |
| 26 | Fuse, Thermal (91 C) |
| 27 | NUT, HEX |
| 28 | MAY 8573836 |
| 29 | MAY W10109200 |
| 30 | MAY 8576468 |
| 31 | MAY 8557277 |
| 32 | MAY 3402841 |
| 33 | MAY 338906 |
| 34 | MAY W10131528 |
| 35 | NUT, HEX (LEFT HAND THREAD) |
| 36 | MAY 8536973 |
| 37 | MAY 8575324 |
| 38 | MAY 8575325 |
| 39 | WASHER, TRI RING |
| 40 | MAY W10053480 |
| 41 | MAY W10044579 |
| 42 | Nut, Brass 9/16 - 24 x 1/2 |
| 43 | MAY W10044629 |
| 44 | Nozzle & Hose Assembly (Includes Items 33,34,42,46) |
| 45 | Hose Assembly (Not Servicable) |
| 46 | MAY W10153865 |
| 47 | MAY W10044605 |
| 48 | MAY W10160575 |
| 49 | Foam, Bracket |
| 50 | MAY W10146150 |
| 51 | Harness, Water Valve |
| 52 | Screw |
| 53 | Clip, Push-To-Connect |
| 54 | Valve & Hose Assembly |
