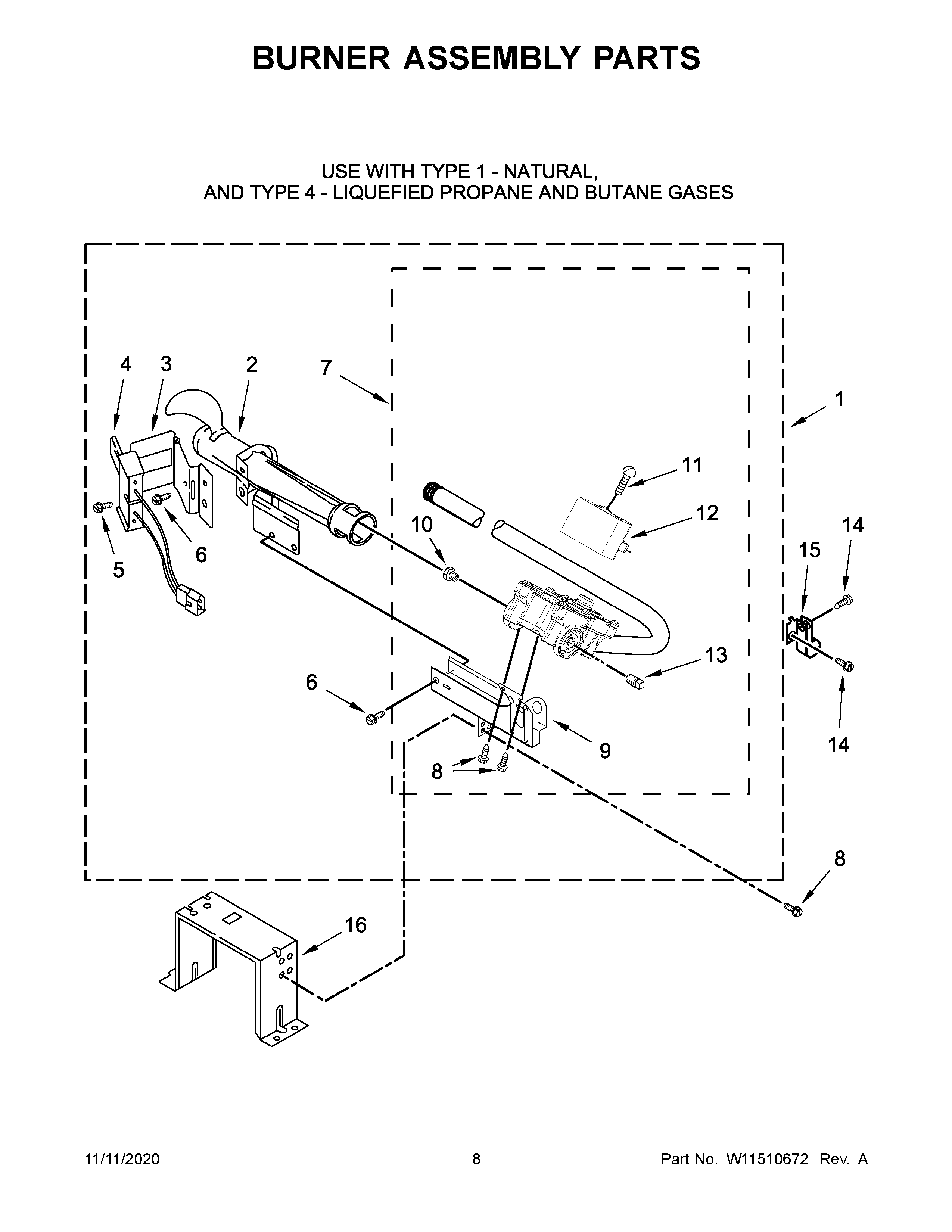

MGD6630HC2 05 – BURNER ASSEMBLY PARTS

MGD6630HC2 05 – BURNER ASSEMBLY PARTS

Written by

in

MGD6630HC2 05 – BURNER ASSEMBLY PARTS

Products

PositionProduct
NIW11581317 Whirlpool LP Gas Connector
NICABINET (NOT A SERVICEABLE PART)
1W11309727 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7W11331937 Whirlpool Gas Valve
8WP693995 Whirlpool Screw
9Base, Burner
10BWP229742 Whirlpool Gas Orifice
10AOrifice, Burner (Type 4 (Butane))
10WP15418 Whirlpool Gas Orifice
11326049536 Whirlpool Screw
12WPW10328463 Whirlpool Valve Coil
13W10295523 Whirlpool Plug
14WP488729 Whirlpool Refrigerator Door Screw
153387561 Whirlpool Clamp
16Bracket, Support
