MGD6630HC3 06 – DOOR PARTS – Aparts

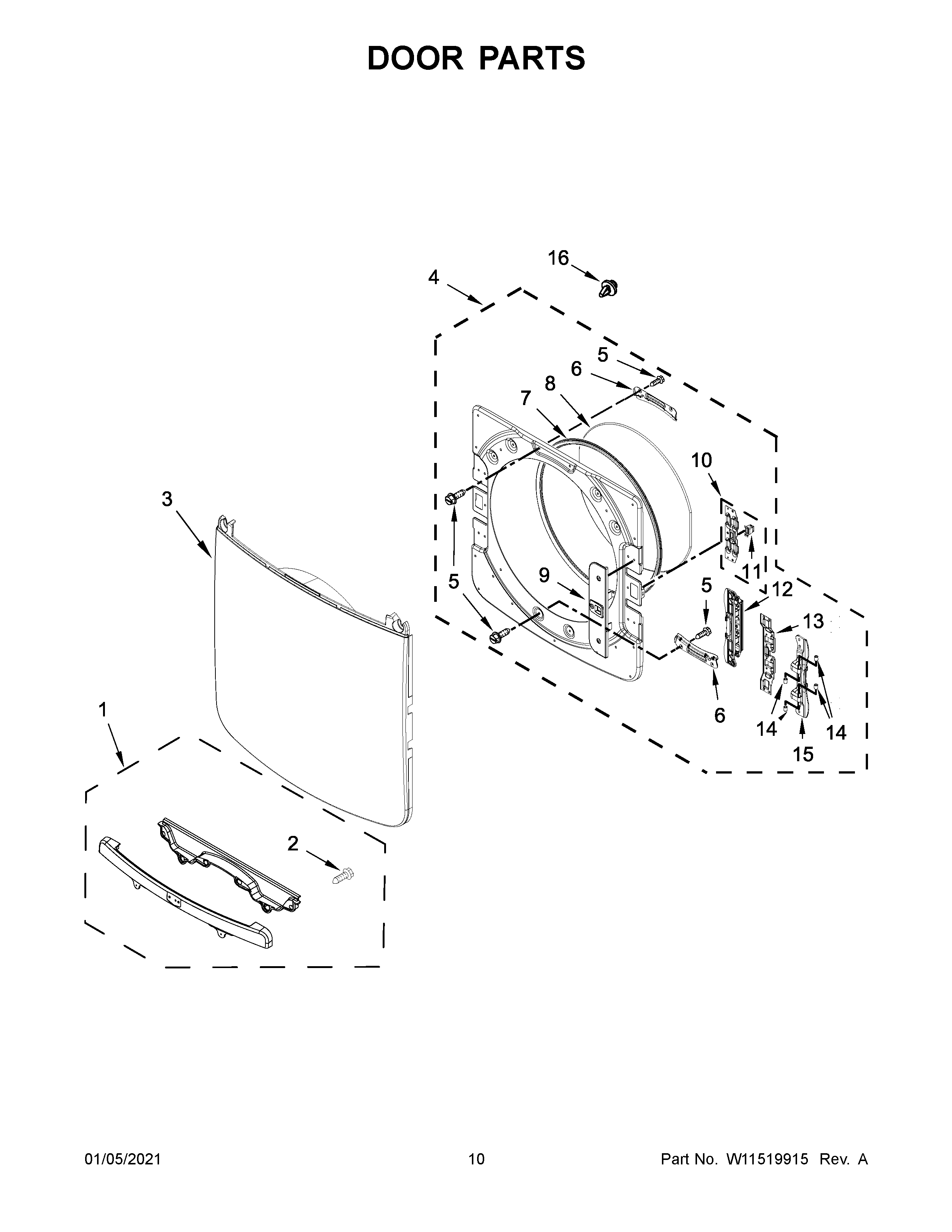

MGD6630HC3 06 – DOOR PARTS

Products

Position	Product
1	W10626039 Whirlpool Handle
2	SCREW
3	W11310052 Whirlpool Door
4	W11465962 Whirlpool Door Assembly
5	SCREW
6	BRACKET, GLASS
7	W11310035 Whirlpool Seal
8	W11310036 Whirlpool Door Glass
9	W11310050 Whirlpool Cover Assembly
10	WPW10208254 Whirlpool Catch
11	W11240283 Whirlpool Catch Assembly
12	HINGE
13	HINGE
14	WPW10208398 Whirlpool Hinge Pin Cap
15	WPW10208419 Whirlpool Plate
16	W11310051 Whirlpool Bumper
