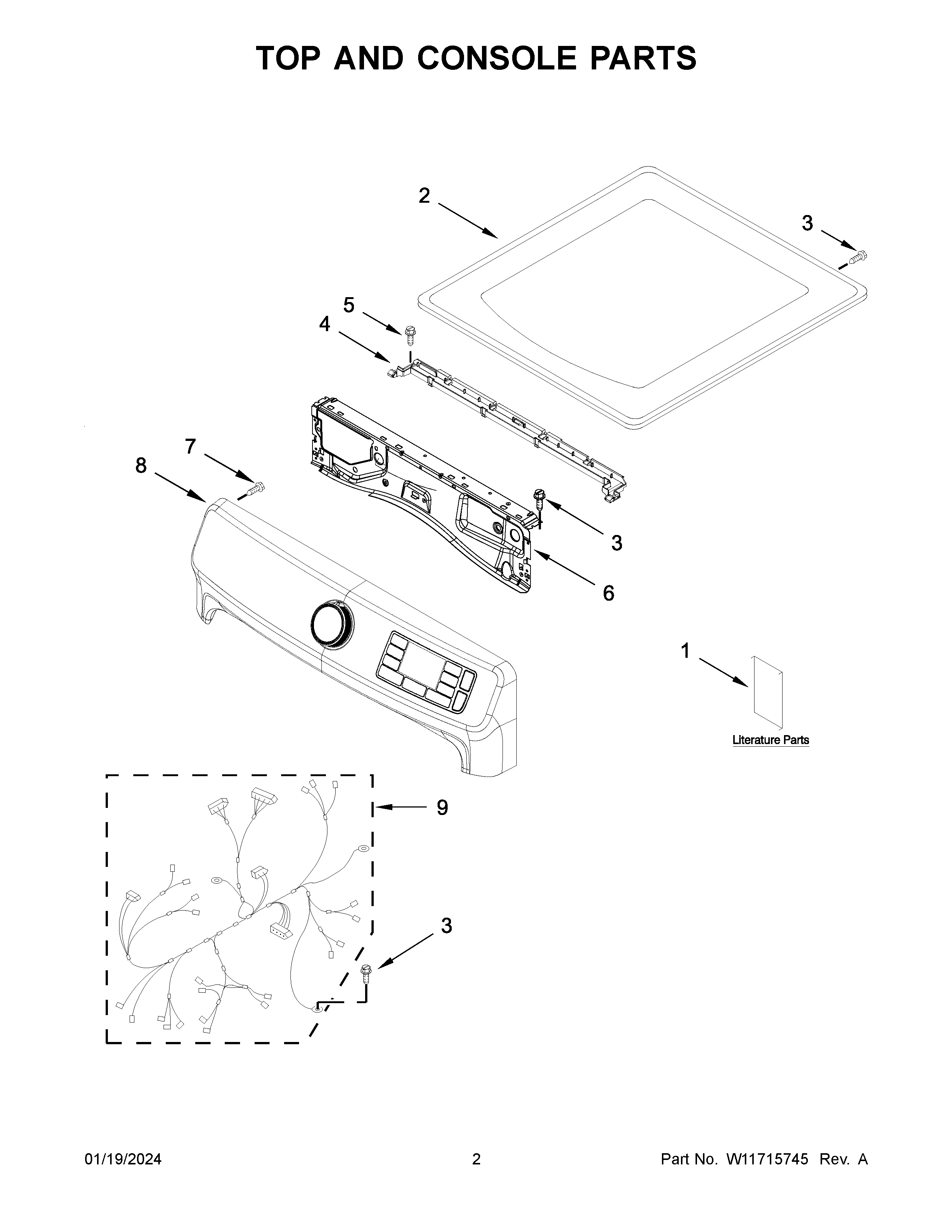

MGD6630HW4 02 – TOP AND CONSOLE PARTS

MGD6630HW4 02 – TOP AND CONSOLE PARTS

Written by

in

MGD6630HW4 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1ATECH SHEET
1CQUICK START GUIDE
1OWNERS MANUAL
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7WP8533993 Whirlpool Refrigerator Screw
8AW11384513 Whirlpool Console + Core
8W11397843 Whirlpool Console + Core
9W11157861 Whirlpool Wire Harness
