MGD7000AG0 05 – BURNER ASSEMBLY – Aparts

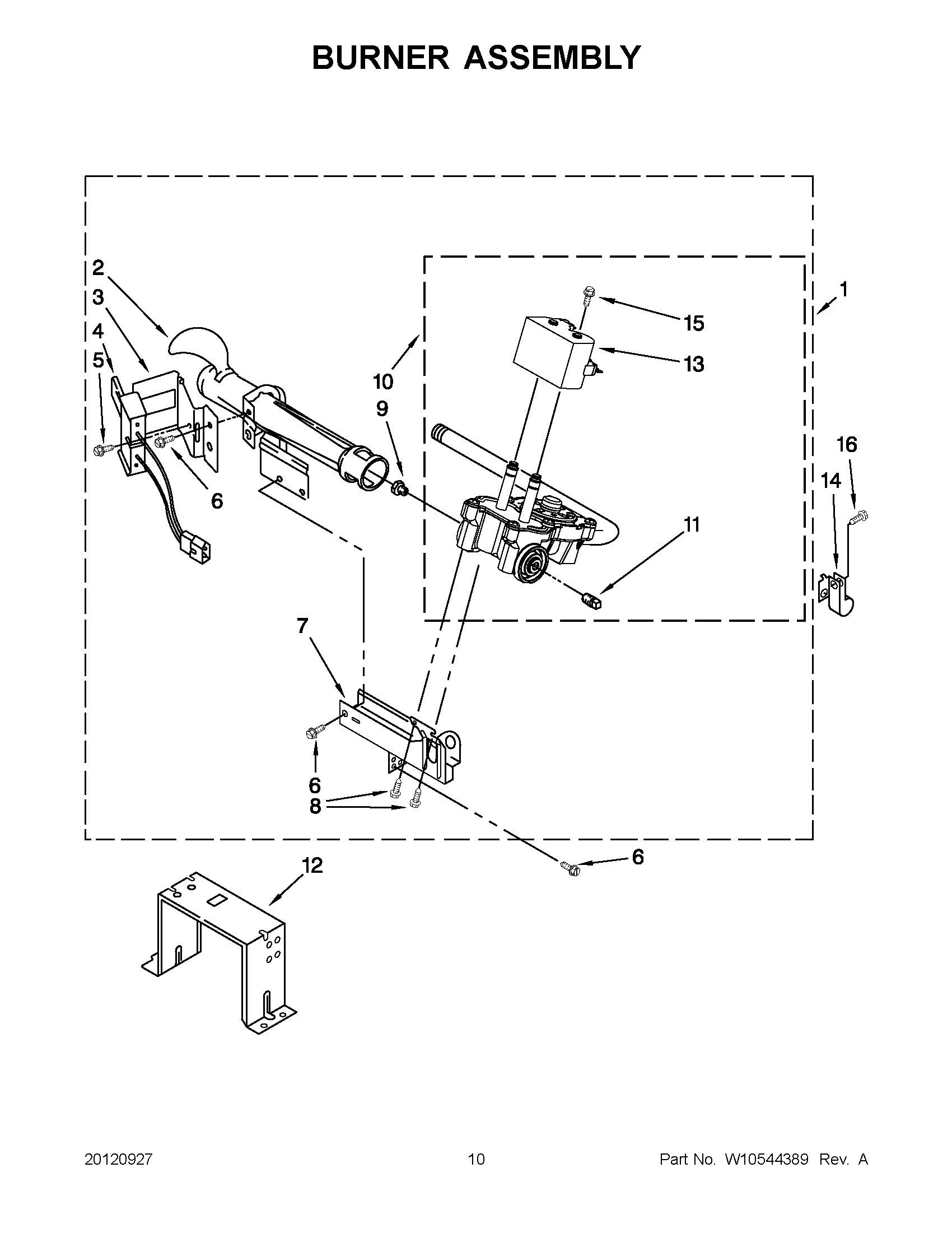

MGD7000AG0 05 – BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10307153
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10307147
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	TYPE 1 (NATURAL)
10	MAY W10175144
11	MAY W10295523
12	MAY 3389889
13	MAY W10328463
14	MAY 3978776
15	MAY 326049536
16	SCREW
