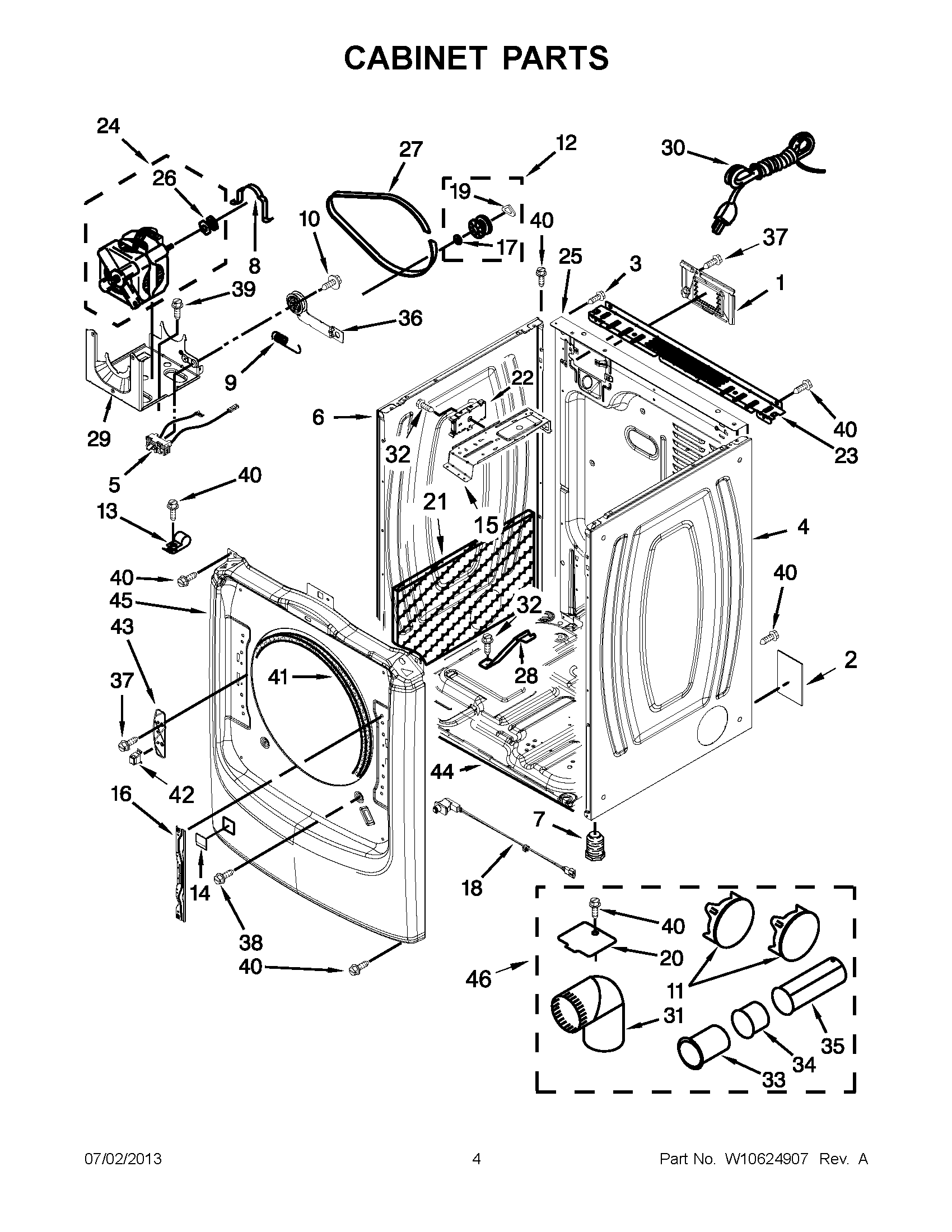

MGD7000AG1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8317339
2	MAY W10504381
3	MAY 8533974
4	PANEL, SIDE (RIGHT) (GRANITE)
4	PANEL, SIDE (RIGHT) (WHITE)
5	MAY W10411936
6	MAY W10468495
6	PANEL, SIDE (COSMETALLIC)
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY W10446781
10	SCREW
11	PLUG, MULTIVENT (MIDNIGHT GREY)
12	MAY W10468057
13	MAY 3978776
14	PLUG, FRONT PANEL (WHITE)
14	PLUG, FRONT PANEL (COSMETALLIC)
15	MAY W10259611
16	MAY W10315109
17	MAY W10121334
18	MAY W10569114
19	WASHER, TRI RING
20	MAY W10354249
21	MAY W10123956
22	MAY W10542001
23	MAY W10208382
24	ASSEMBLY, MOTOR
25	MAY W10487430
26	MAY W10460106
27	MAY W10112954
28	MAY 8529757
29	MAY W10242878
30	MAY W10440461
31	MAY W10416072
32	Screw
33	PIPE, EXHAUST (MEDIUM)
34	PIPE, EXHAUST (SHORT)
35	PIPE, EXHAUST (LONG)
36	ASSEMBLY, IDLER
37	MAY W10288126
38	SCREW
39	SCREW
40	SCREW
41	MAY 3387242
42	MAY W10208401
43	MAY W10208250
44	MAY 8565046
45	PANEL, FRONT (COSMETALLIC)
45	MAY W10363954
46	KIT, 4-WAY VENT
