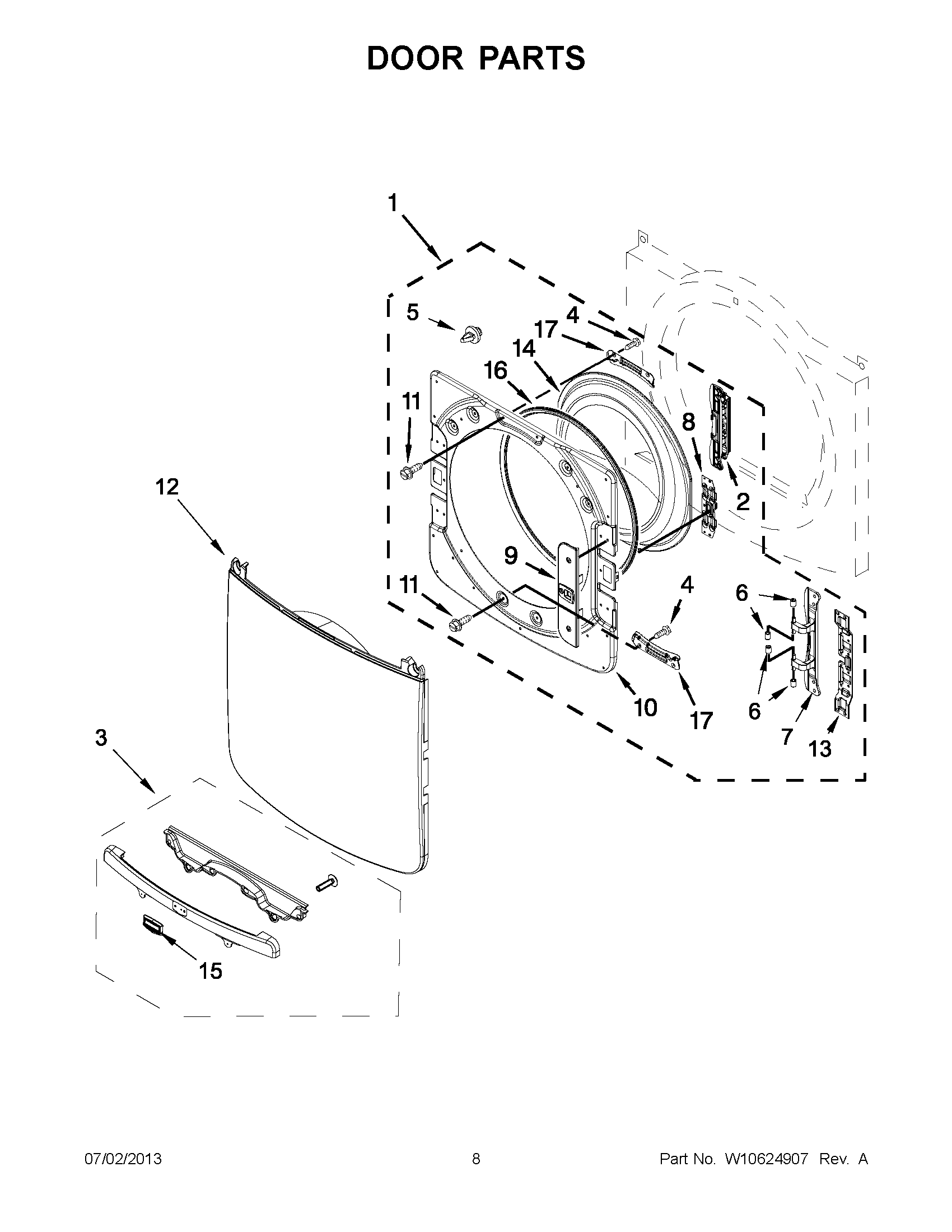

MGD7000AG1 04 – DOOR PARTS
Written by
in
MGD7000AG1 04 – DOOR PARTS
Products
Position
Product
1
ASSEMBLY, INNER DOOR
2
DOOR HINGE ASSEMBLY
3
MAY W10466618
4
Screw
5
MAY 8572266
6
MAY W10208398
7
HINGE BASE
8
MAY W10208254
9
MAY W10272404
10
DOOR, INNER
11
MAY W10288126
12
ASSEMBLY, OUTER DOOR
13
MAY W10208419
14
MAY W10208417
15
MAY W10424964
16
MAY W10329710
17
MAY W10208252
←
