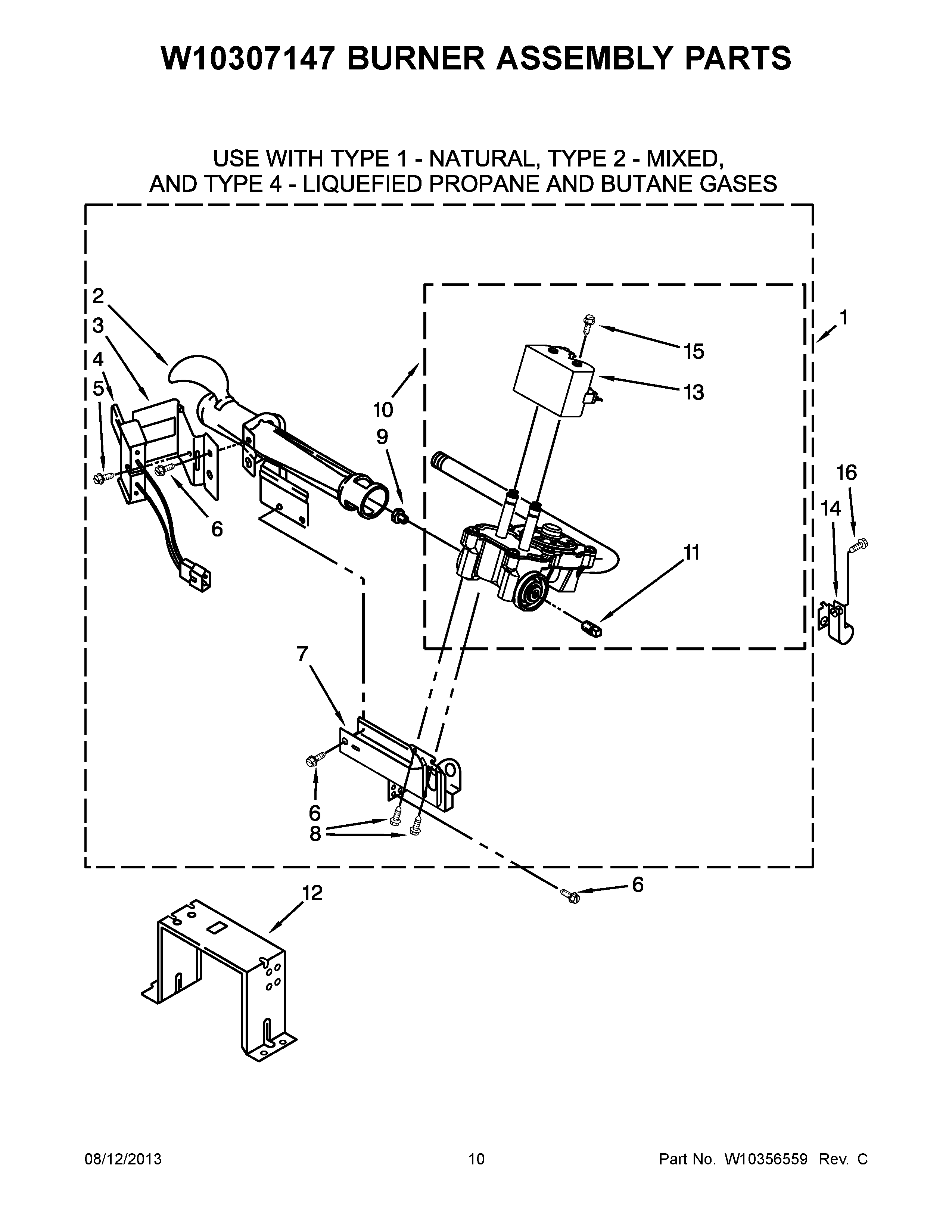

MGD7000XG0 06 – W10307147 BURNER ASSEMBLY PARTS
Written by
in
MGD7000XG0 06 – W10307147 BURNER ASSEMBLY PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
MAY W10307153
1
MAY W10307147
2
MAY 688617
3
MAY 694298
4
MAY 686590
5
MAY 3393909
6
SCREW
7
MAY 3389871
8
SCREW
9
ORIFICE, BURNER (TYPE 1 (NATURAL))
10
MAY W10175144
11
MAY W10295523
12
MAY 3389889
13
MAY W10328463
14
MAY 3978776
15
MAY 326049536
16
SCREW
←
