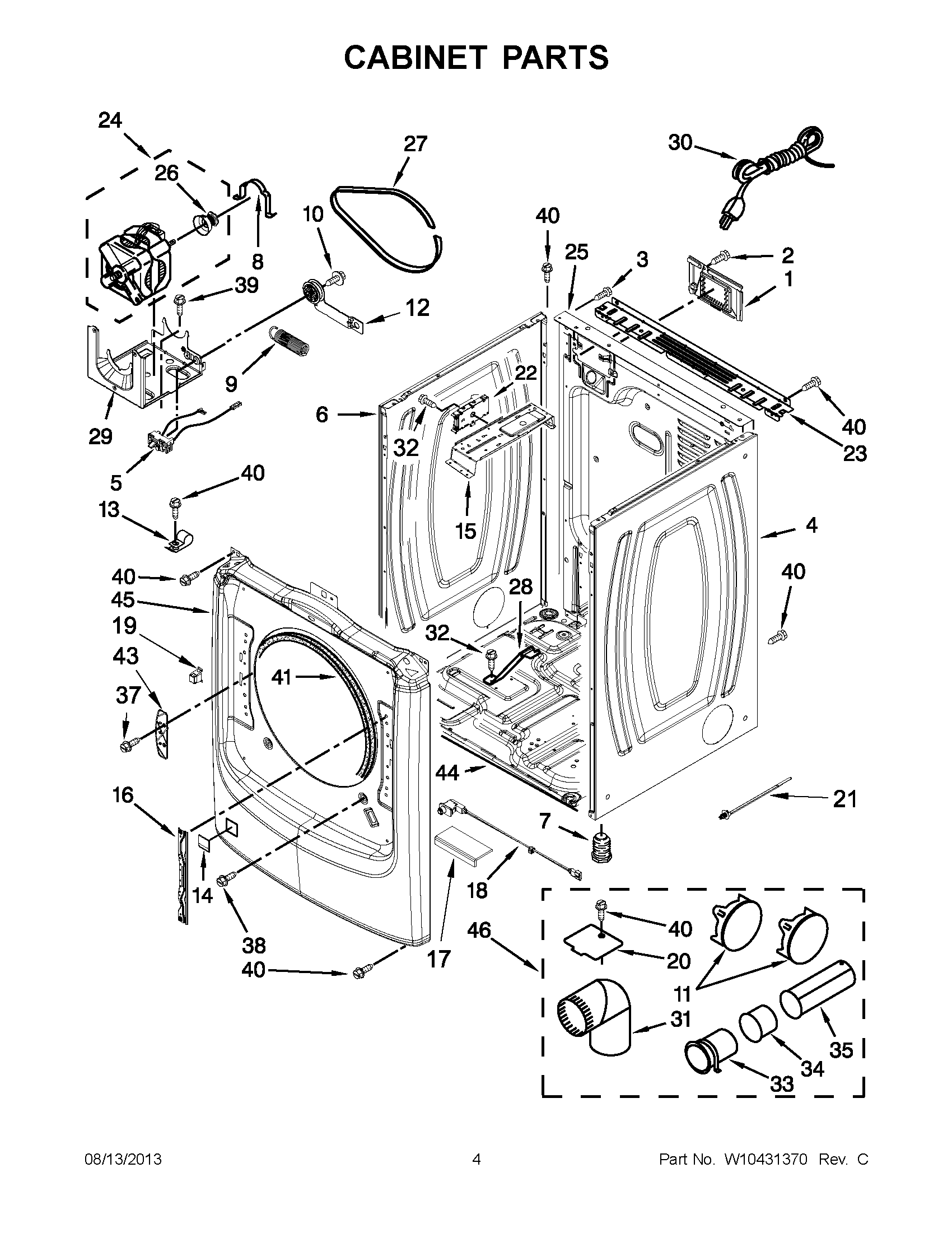

MGD7000XG1 02 – CABINET PARTS

MGD7000XG1 02 – CABINET PARTS

Written by

in

MGD7000XG1 02 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
1MAY 8317339
2SCREW
3MAY 8533974
4PANEL, SIDE (RIGHT) (GRANITE)
4PANEL, SIDE (RIGHT) (WHITE)
4MAY W10469590
5MAY W10411936
6MAY W10468502
6MAY W10468495
6PANEL, SIDE (COSMETALLIC)
7MAY 3392100
8CLAMP, MOTOR MOUNT
9MAY W10446781
10SCREW
11PLUG, MULTIVENT (MIDNIGHT GREY)
12ASSEMBLY, IDLER
13MAY 3978776
14PLUG, FRONT PANEL (WHITE)
14PLUG, FRONT PANEL (COSMETALLIC)
14MAY W10256411
15MAY W10259611
16MAY W10315109
17MAY W10215725
18MAY W10295361
19MAY W10208401
20MAY W10354249
21MAY W10267532
22MAY W10378252
23MAY W10208382
24ASSEMBLY, MOTOR
25MAY W10487430
26MAY W10460106
27MAY W10112954
28MAY 8529757
29MAY W10242878
30MAY W10440461
31MAY W10416072
32Screw
33PIPE, EXHAUST (MEDIUM)
34PIPE, EXHAUST (SHORT)
35PIPE, EXHAUST (LONG)
37MAY W10288126
38SCREW
39SCREW
40SCREW
41MAY 3387242
43MAY W10208250
44MAY 8565046
45MAY W10294349
45MAY W10301067
45MAY W10337786
46KIT, 4-WAY VENT
