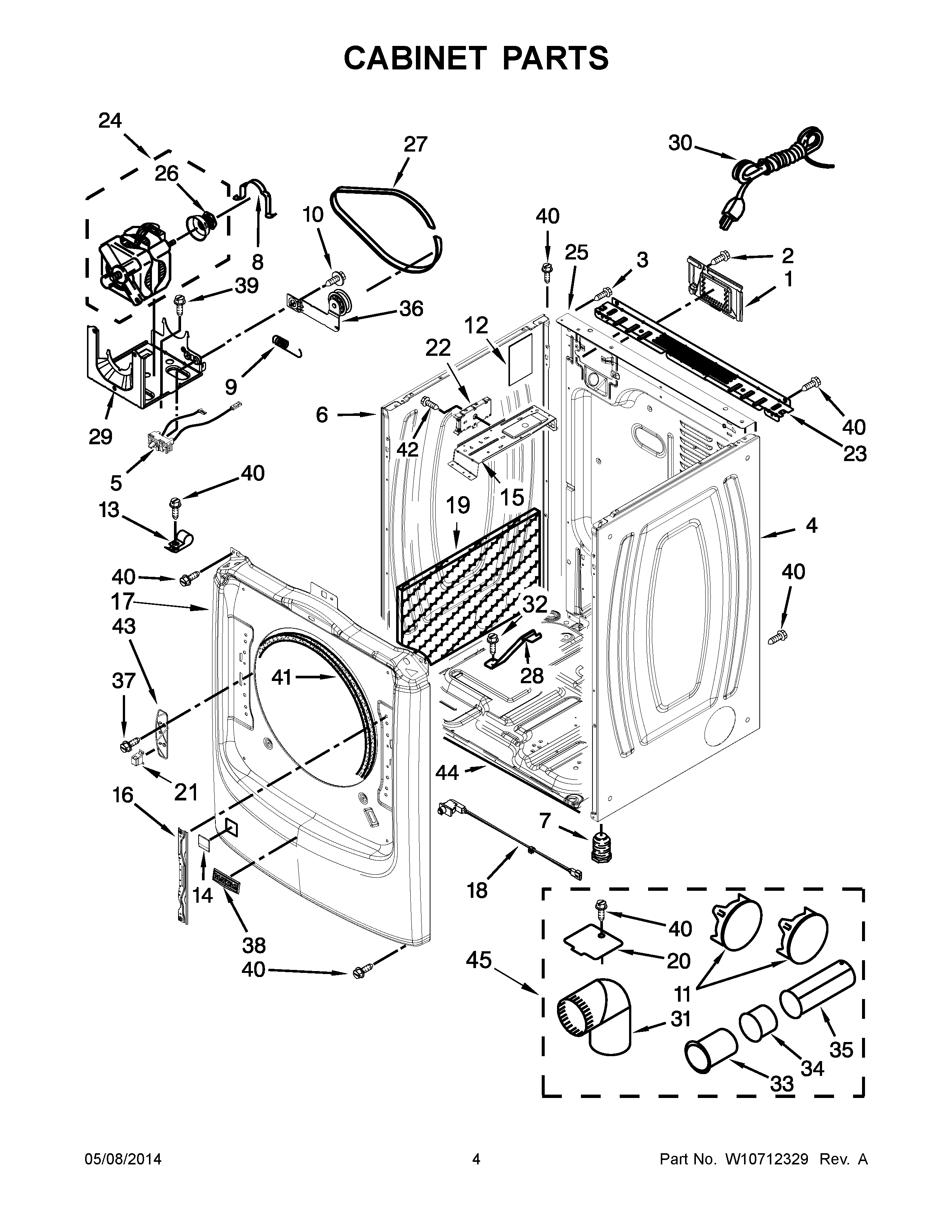

MGD7100DC0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8317339
2	MAY W10219342
3	MAY 8533974
4	PANEL, SIDE (RIGHT) (CHROME SHADOW)
4	PANEL, SIDE (RIGHT) (WHITE)
5	MAY W10411936
6	PANEL, SIDE (CHROME SHADOW)
6	MAY W10468495
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY W10446781
10	SCREW
11	PLUG, MULTIVENT (MIDNIGHT GREY)
12	MAY W10504381
13	MAY 3978776
14	PLUG, FRONT PANEL (WHITE)
14	PLUG, FRONT PANEL (CHROME SHADOW)
15	MAY W10259611
16	MAY W10315109
17	PANEL, FRONT (CHROME SHADOW)
17	PANEL, FRONT (WHITE)
18	DOOR SWITCH, SNAP IN
19	MAY W10123956
20	MAY W10354249
21	MAY W10208401
22	BOARD, CONTROL
23	MAY W10208382
24	MAY W10620757
25	MAY W10487430
26	Pulley, Motor
27	MAY W10112954
28	MAY 8529757
29	MAY W10242878
30	MAY 3401401
31	MAY W10416072
33	PIPE, EXHAUST (MEDIUM)
34	PIPE, EXHAUST (SHORT)
35	PIPE, EXHAUST (LONG)
36	ASSEMBLY, IDLER
37	MAY W10288126
38	BADGE, MAYTAG
39	SCREW
40	SCREW
41	MAY 3387242
42	Screw
43	MAY W10208250
44	MAY 8565046
45	KIT, 4-WAY VENT
