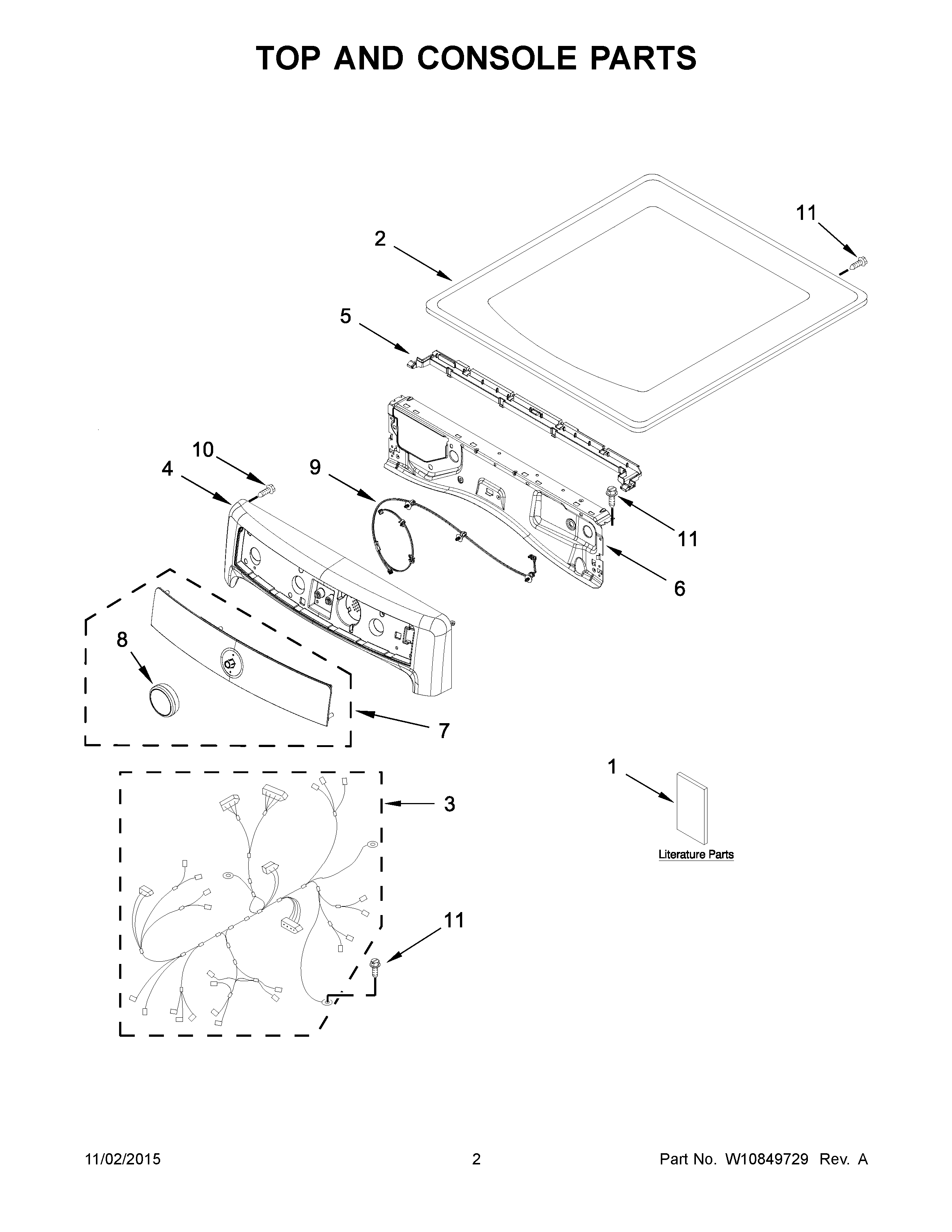

MGD7100DC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1DQUICK START GUIDE
1BTECH SHEET
1USE AND CARE GUIDE
1AMAY W10676163
2MAY W10208383
2ATOP (CHROME SHADOW)
3HARNESS, MAIN WIRING
4ACONSOLE ASSEMBLY (CHROME SHADOW)
4MAY W10391555
5WATER CHANNEL
6MAY W10208198
7AMAY W10800518
7MAY W10800517
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11Screw
