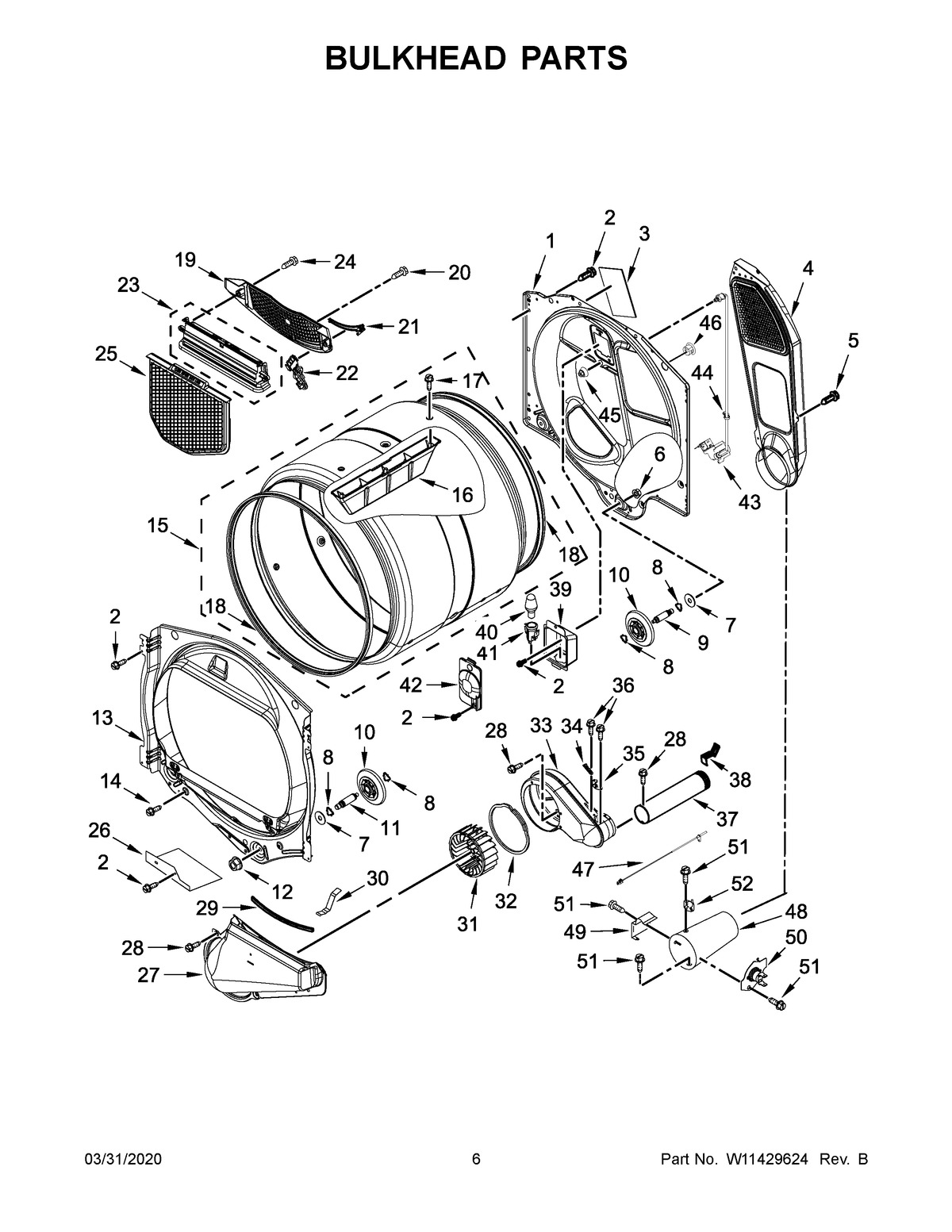

MGD7230HC0 04 – BULKHEAD PARTS

Products

Position	Product
NI	ACCESSORY PARTS, KIT, DRYER - PREMIUM STEAM HOSE (INCLUDES (1) 2' HOSE AND (1) 5' HOSE, (1) Y ADAPTER AND (5) RUBBER WAS
NI	ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INCLUDES (1) 2' HOSE, (1) 5' HOSE, (1) Y ADAPTER, (2) EXPORT (BRITISH) ADAPTER
NI	ACCESSORY PARTS, INLET HOSE, 5 FT (COLD WATER)
NI	ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INCLUDES (1) 3' HOSE, (1) 5' HOSE, (1) Y ADAPTER AND (4) RUBBER WASHERS.)
1	BULKHEAD, REAR
2	SCREW
3	MAY W10504381
4	ASSEMBLY, AIR DUCT
5	MAY 8533971
6	NUT, HEX (LEFT HAND THREAD)
7	WASHER
8	WASHER, TRI RING
9	SHAFT, DRUM ROLLER - LEFT HAND THREAD
10	ROLLER, SUPPORT
11	SHAFT, DRUM ROLLER RIGHT HAND THREAD
12	NUT, HEX
13	BULKHEAD, FRONT
14	SCREW
15	ASSEMBLY, DRUM
16	BAFFLE, DRUM
17	MAY W10219342
18	MAY W10521118
19	GRILL, OUTLET
20	Screw, 8-18 x 1/2
21	SENSOR, ELECTRODE
22	MAY W10298258
23	ASSEMBLY, OUTLET HOUSING
24	SCREW
25	LINT SCREEN (WHITE)
26	MAY W11257251
27	Lint Duct Assembly
28	Screw
29	MAY 697814
30	CLIP, SPRING
31	MAY 697772
32	SEAL, SPILL GUARD
33	MAY 8544362
34	FUSE, THERMAL (91C)
35	THERMISTOR
36	Screw
37	PIPE, EXHAUST
38	CLIP, EXHAUST
39	MAY 3977373
40	MAY 3406124
41	MAY W10214261
42	MAY 3402841
43	VALVE HOSE ASSY.
44	MAY 3391018
45	NOZZLE, CAP
46	MAY 8529007
47	THERMISTOR, GAS INLET
48	MAY 8573824
49	MAY 338906
50	CUT-OFF, THERMAL
51	SCREW,8-18 X 3/8
52	THERMOSTAT, HI LIMIT
