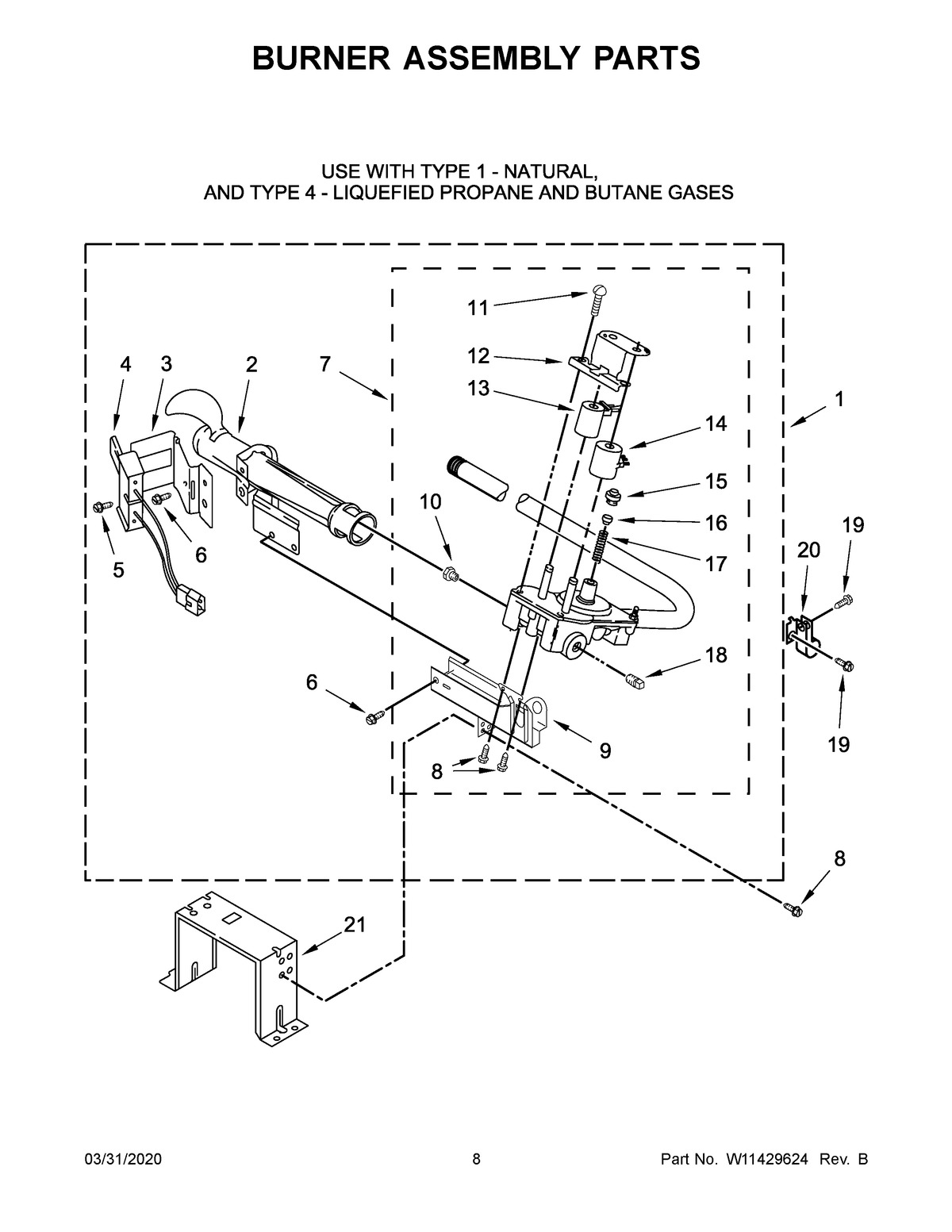

MGD7230HC0 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Conversion Kit (Type (1) to Type (4) LPG).
1	BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY W10366705
6	SCREW
7	VALVE, GAS 60 HZ. (COMPLETE)
8	SCREW
9	MAY 3389871
10	ORIFICE, BURNER (TYPE 1 (NATURAL))
10A	Orifice, Burner (Type 4 (Butane))
10B	Orifice, Burner (Type 4 (Propane))
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
18	MAY 239822
19	SCREW
20	MAY 3387561
21	MAY 3389889
