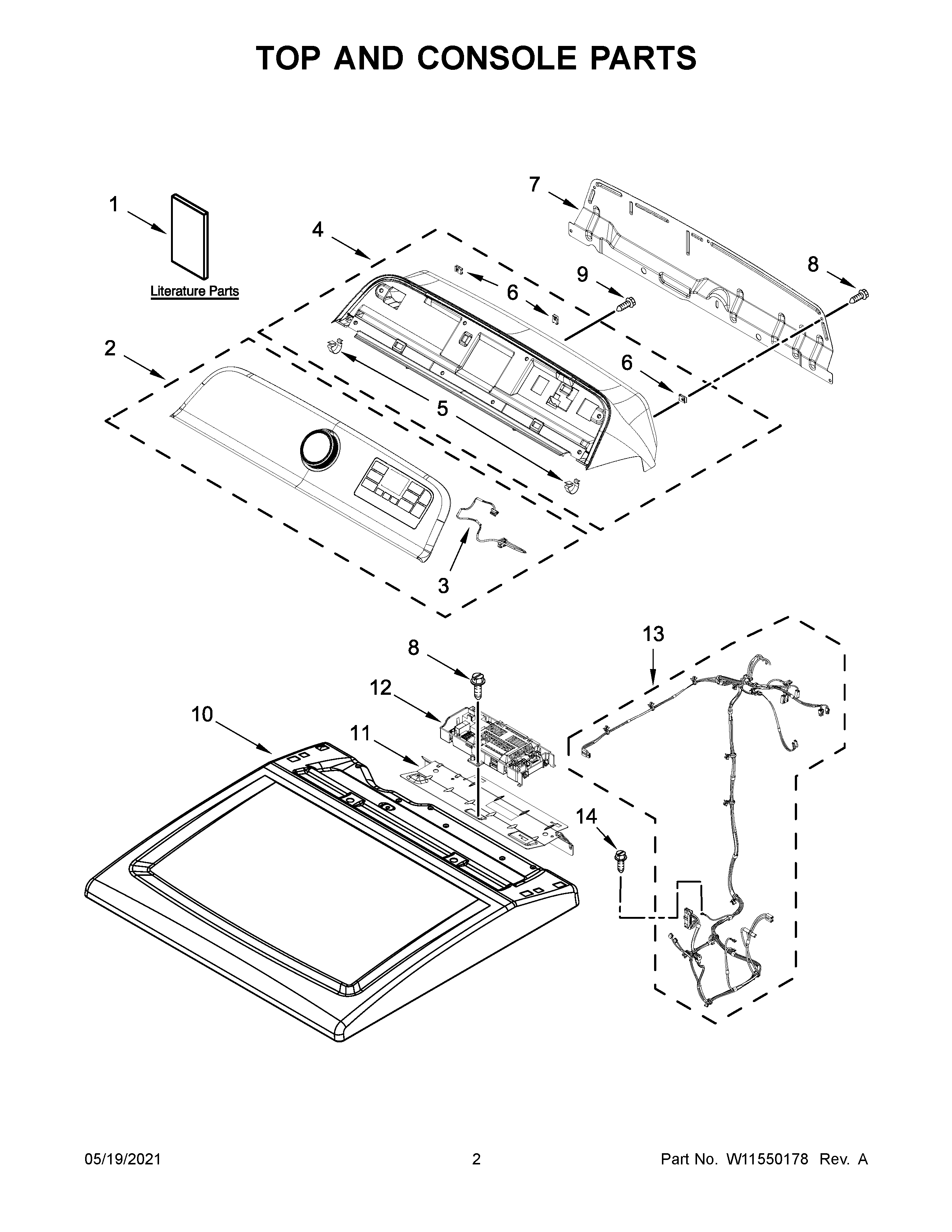

MGD7230HC1 02 – TOP AND CONSOLE PARTS

MGD7230HC1 02 – TOP AND CONSOLE PARTS

Written by

in

MGD7230HC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BQUICK START GUIDE
1INSTALLATION INSTRUCTIONS
1ATECH SHEET
2W11413567 Whirlpool Control Panel
3W11721377 Whirlpool Wire Harness
4AW11406679 Whirlpool Console
4W11406678 Whirlpool Console
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7W11433112 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP9740848 Whirlpool Dishwasher Screw
10AW11641122 Whirlpool Top
10TOP (WHITE)
11W11431865 Whirlpool Bracket
12W11618921-includeCORE Whirlpool W11618921 Electronic Control Board
13W11459149 Whirlpool Wire Harness
14W11693756 Whirlpool Screw Assembly
