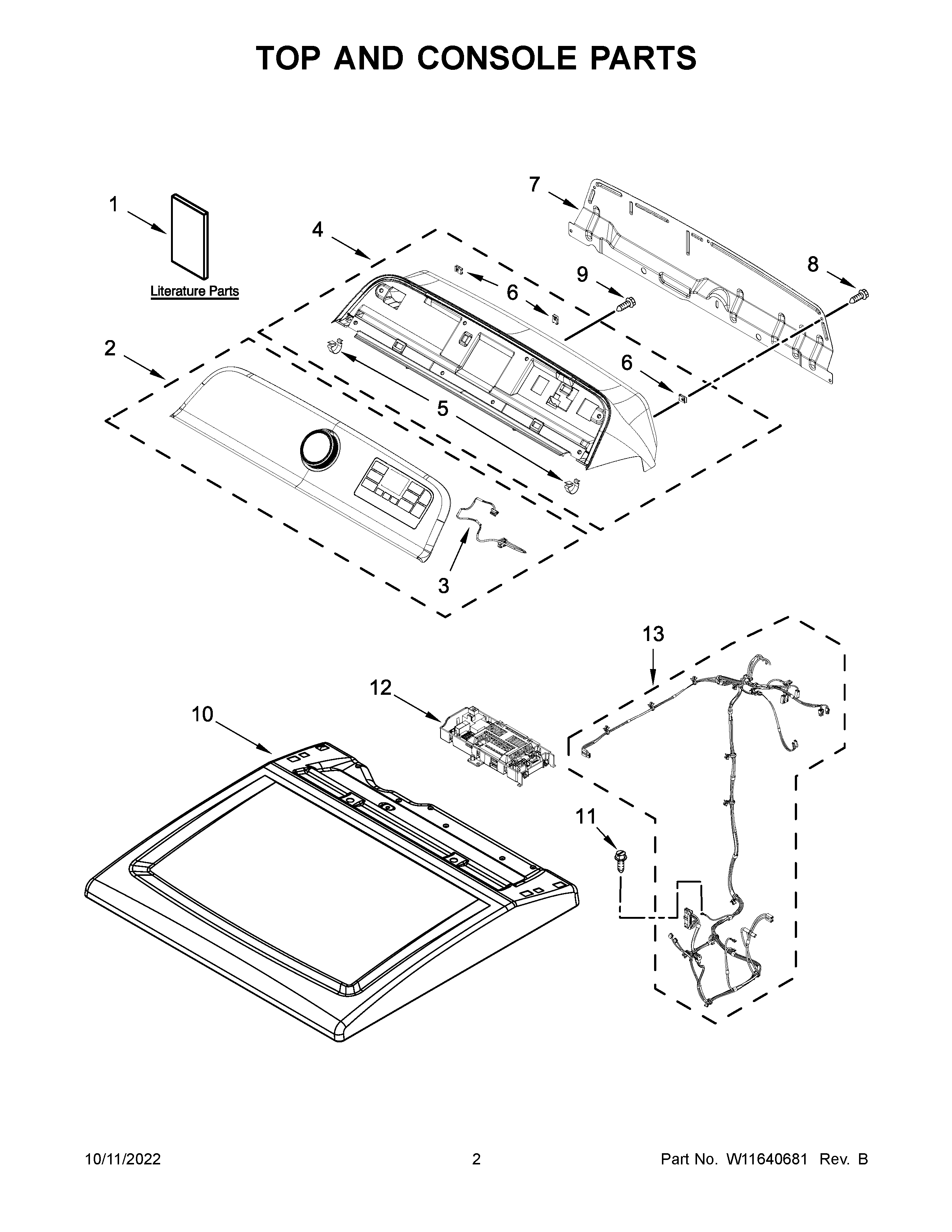

MGD7230HC3 02 – TOP AND CONSOLE PARTS
Written by
in
MGD7230HC3 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1A
TECH SHEET
1B
QUICK START GUIDE
1
INSTALLATIONIN STRUCTIONS
2
W11413567 Whirlpool Control Panel
3
W11721377 Whirlpool Wire Harness
4
W11406678 Whirlpool Console
4A
W11406679 Whirlpool Console
5
WP8312709 Whirlpool Endcap Clip
6
W11213336 Whirlpool Nut
7
W11433112 Whirlpool Rear Panel
8
WP488729 Whirlpool Refrigerator Door Screw
9
WP9740848 Whirlpool Dishwasher Screw
10A
W11641122 Whirlpool Top
10
W11641121 Whirlpool Dryer Top
11
W11693756 Whirlpool Screw Assembly
12
W11618921-includeCORE Whirlpool W11618921 Electronic Control Board
13
W11556660 Whirlpool Wire Harness
←
