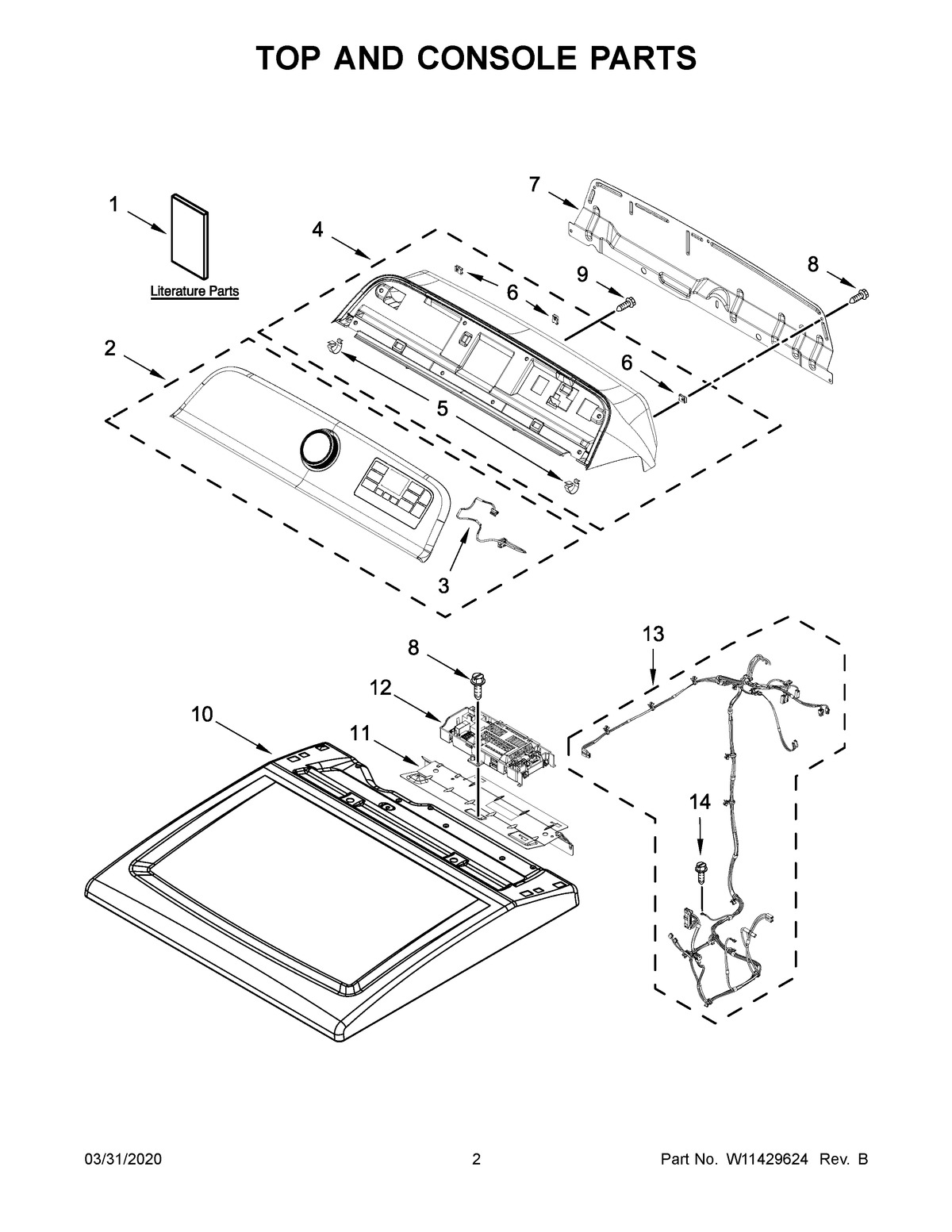

MGD7230HW0 02 – TOP AND CONSOLE PARTS

MGD7230HW0 02 – TOP AND CONSOLE PARTS

Written by

in

MGD7230HW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AMAY W11175222
1BQUICK START GUIDE
2ASSEMBLY, CONSOLE FASCIA (COMPLETE)
3HARNESS, USER INTERFACE (HMI)
4CONSOLE (WHITE)
4ACONSOLE (CHROME SHADOW)
5MAY 8312709
6NUT, "U"
7PANEL, REAR CONSOLE
8SCREW
9SCREW
10ATOP (CHROME SHADOW)
10TOP (WHITE)
11BRACKET, ELECTRONIC CONTROL
12APPLIANCE CONTROL UNIT (ACU)
13APPLIANCE CONTROL UNIT
14MAY 359625
