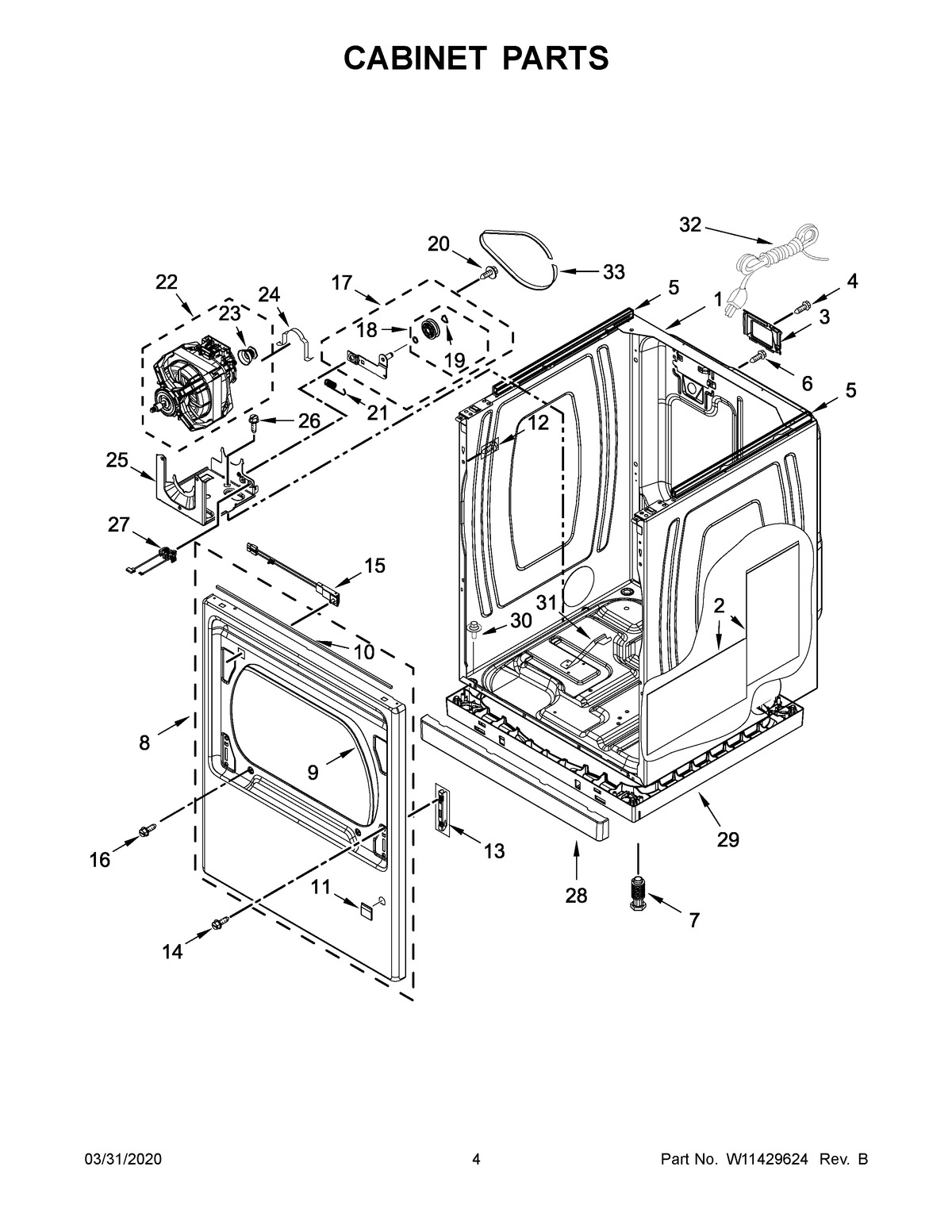

MGD7230HW0 03 – CABINET PARTS

Products

Position	Product
1A	CABINET (CHROME SHADOW)
1	CABINET (WHITE)
2	PANEL, DAMPENING
3	MAY 8317339
4	SCREW
5	SEAL, FOAM
6	SCREW
7	FOOT, DRYER
8A	PANEL, FRONT (CHROME SHADOW)
8	PANEL, FRONT (WHITE)
9	MAY 3387242
10	SEAL, FOAM
11A	PLUG, FRONT PANEL (CHROME SHADOW)
11	PLUG, FRONT PANEL (WHITE)
12	SCREW
13	HINGE, INNER DOOR (RECEPTACLE)
14	SCREW
15	ASSEMBLY, DOOR SWITCH
16	SCREW
17	ASSEMBLY, IDLER
18	MAY W10468057
19	WASHER, TRI RING
20	SCREW
21	MAY W10446781
22	ASSEMBLY, MOTOR
23	MAY W10460106
24	CLAMP, MOTOR MOUNT
25	MAY W10242878
26	SCREW
27	SWITCH, BROKEN BELT
28A	RISER, SKIRT (CHROME SHADOW)
28	RISER, SKIRT (WHITE)
29	RISER, WASHER (CHROME SHADOW)
30	SCREW W/WASHER
31	MAY 8529757
32	CORD, POWER
33	MAY 3387610
