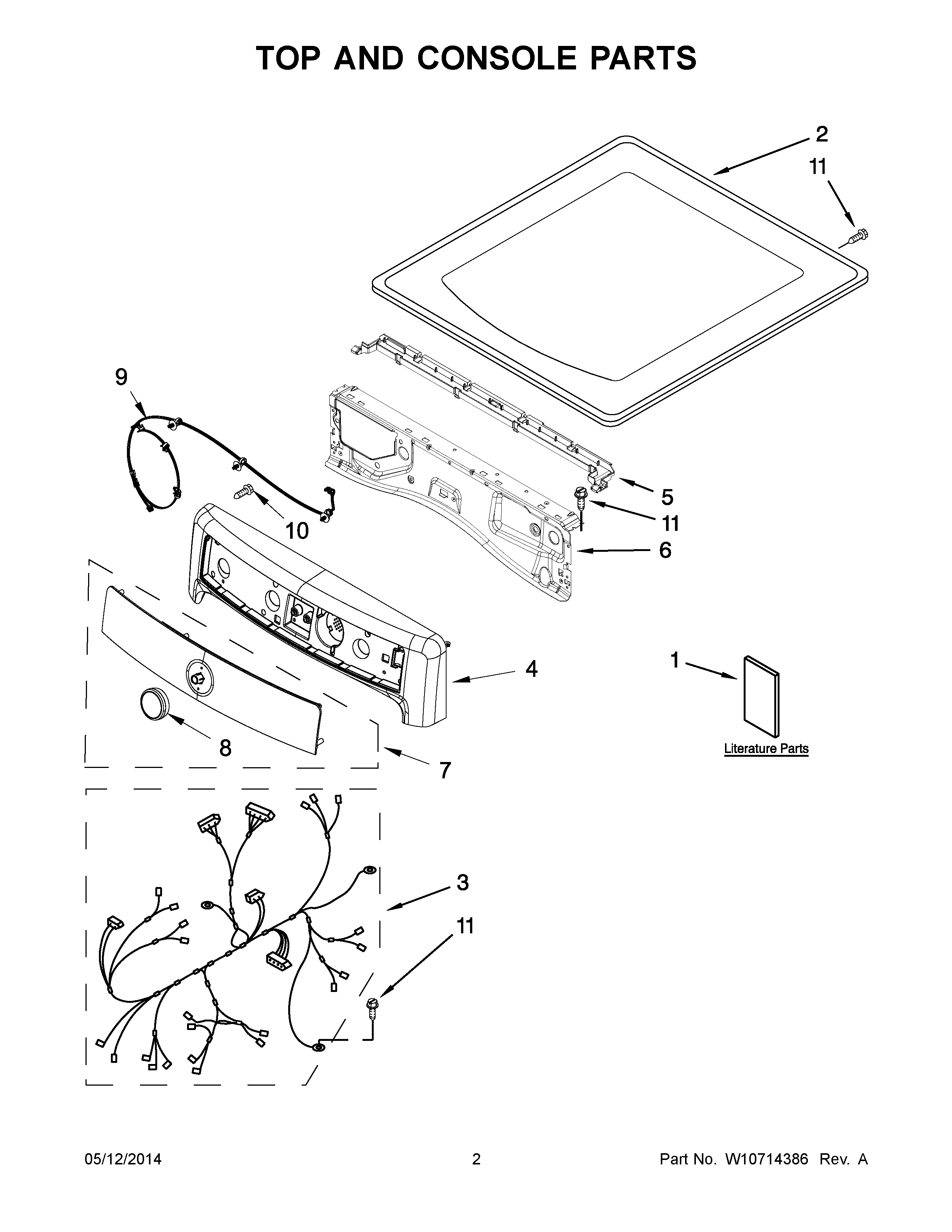

MGD8100DC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10676163
1MAY W10678962
1MAY W10606147
1MAY W10596022
1MAY W10504395
2MAY W10208383
2TOP (CHROME SHADOW)
3MAY W10651120
4MAY W10391555
4CONSOLE ASSEMBLY (CHROME SHADOW)
5WATER CHANNEL
6MAY W10208198
7MAY W10433020
7MAY W10433024
8MAY W10519048
9MAY W10540653
10MAY W10489172
11Screw
