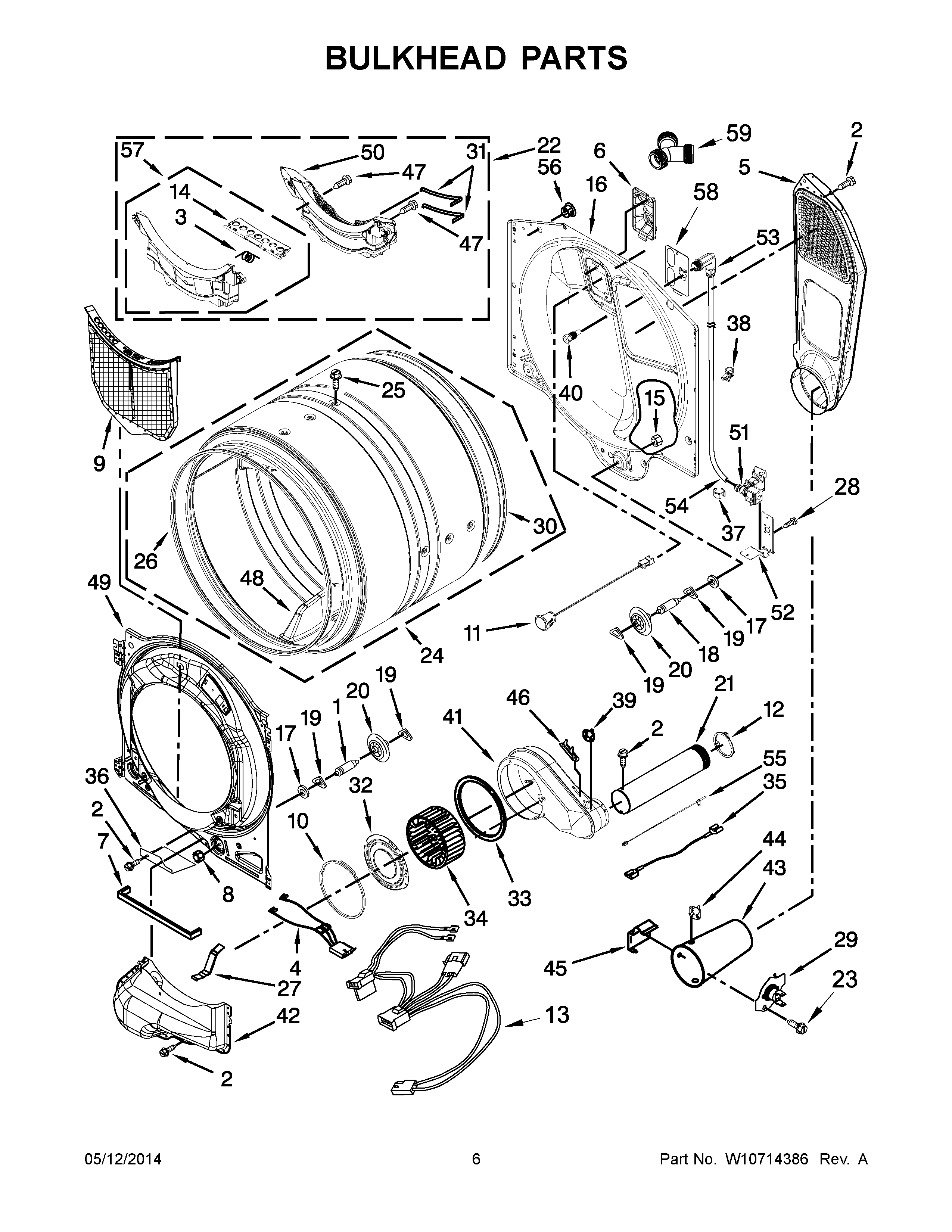

MGD8100DC0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	MAY W10219015
4	MAY W10298258
5	MAY W10295533
6	MAY W10208422
7	MAY W10211950
8	NUT, HEX
9	LINT SCREEN (WHITE)
10	MAY W10211899
11	MAY W10460935
12	MAY W10344699
13	MAY W10468426
14	DOOR, LINT SCREEN
15	NUT, HEX (LEFT HAND THREAD)
16	MAY 8520836
17	WASHER
18	SHAFT, DRUM ROLLER – LEFT HAND THREAD
19	WASHER, TRI RING
20	ROLLER, SUPPORT
21	MAY W10342188
22	ASSEMBLY, OUTLET GRILL AND HOUSING
23	Screw
24	MAY W10541656
25	MAY W10219342
26	MAY W10521122
27	MAY W10414388
28	Screw
29	CUT-OFF, THERMAL
30	MAY W10521118
31	SENSOR, ELECTRODE
32	MAY W10211901
33	SEAL, PLATE COVER
34	MAY W10211915
35	MAY W10525140
36	MAY W10128629
37	MAY W10044599
38	MAY 3391018
39	THERMISTOR
40	MAY W10277503
41	MAY W10211911
42	MAY W10211896
43	MAY 8573824
44	THERMOSTAT, HI LIMIT
45	MAY 338906
46	Fuse, Thermal (91 C)
47	SCREW
48	MAY W10280771
49	MAY W10211930
50	GRILL, OUTLET
51	MAY W10505663
52	MAY W10510098
53	MAY W10347739
54	MAY W10348621
55	THERMISTOR, GAS INLET
56	MAY 8529007
57	ASSEMBLY, HOUSING AND DOOR
58	MAY W10656504
59	ACCESSORY PARTS, CONNECTOR, HOSE -"Y"
