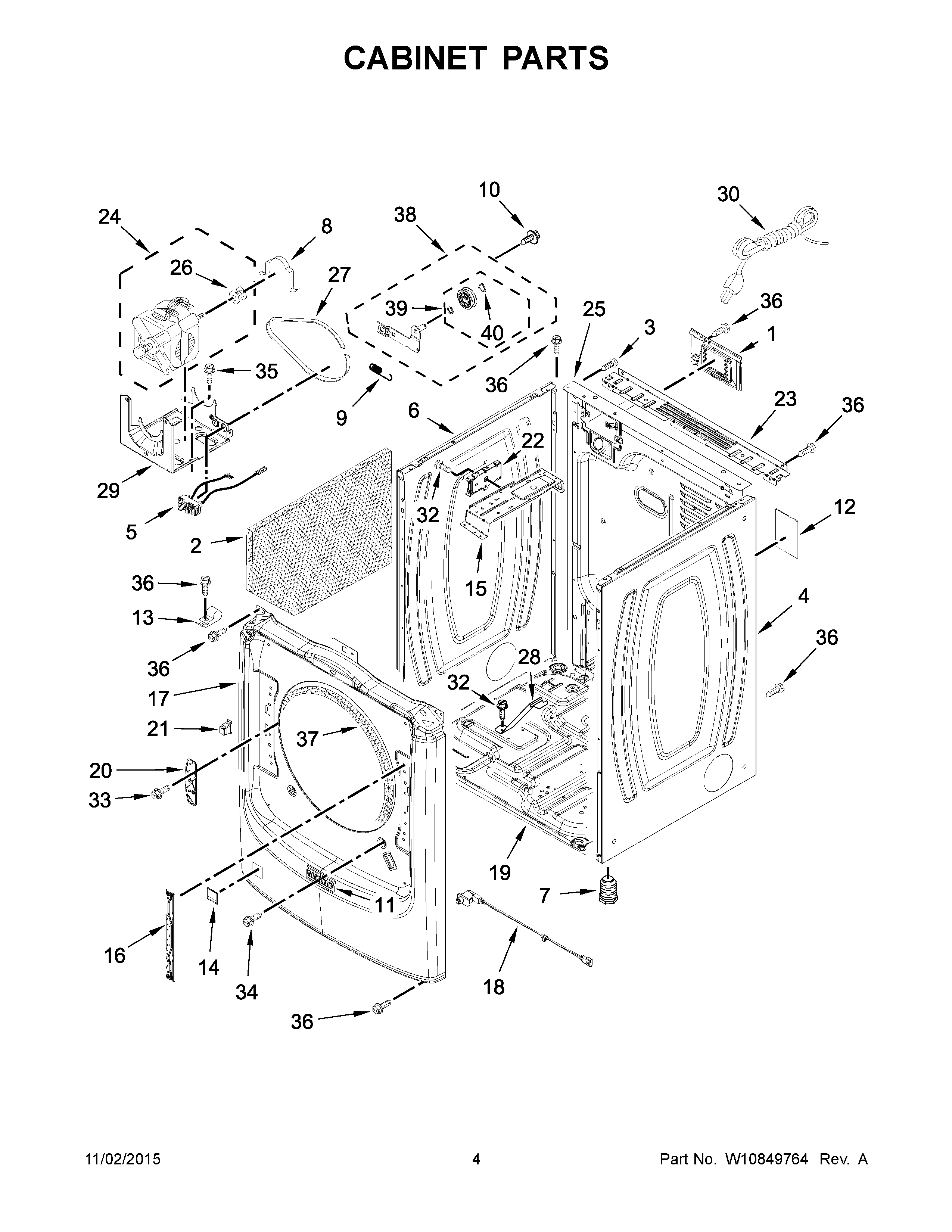

MGD8100DC1 03 – CABINET PARTS

Products

Position	Product
NI	KIT, 4-WAY VENT
NI	MAY 279810
1	MAY 8317339
2	MAY W10123956
3	MAY 8533974
4	PANEL, SIDE (RIGHT) (WHITE)
4A	PANEL, SIDE (RIGHT) (CHROME SHADOW)
5	SWITCH, BROKEN BELT
6A	PANEL, SIDE (CHROME SHADOW)
6	MAY W10468495
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY W10446781
10	SCREW
11	BADGE, MAYTAG
12	MAY W10504381
13	MAY 3978776
14	PLUG, FRONT PANEL (WHITE)
14A	PLUG, FRONT PANEL (CHROME SHADOW)
15	MAY W10259611
16	MAY W10315109
17A	PANEL, FRONT (CHROME SHADOW)
17	PANEL, FRONT (WHITE)
18	DOOR SWITCH, SNAP IN
19	MAY 8565046
20	MAY W10208250
21	MAY W10208401
22	MAY W10804446
23	MAY W10208382
24	MAY W10806760
25	MAY W10487430
26	Pulley, Motor
27	MAY W10112954
28	MAY 8529757
29	MAY W10242878
30	MAY 3401401
31	MAY W10344699
32	Screw
33	MAY W10288126
34	SCREW
35	SCREW
36	SCREW
37	MAY 3387242
38	ASSEMBLY, IDLER
39	MAY W10468057
40	WASHER, TRI RING
