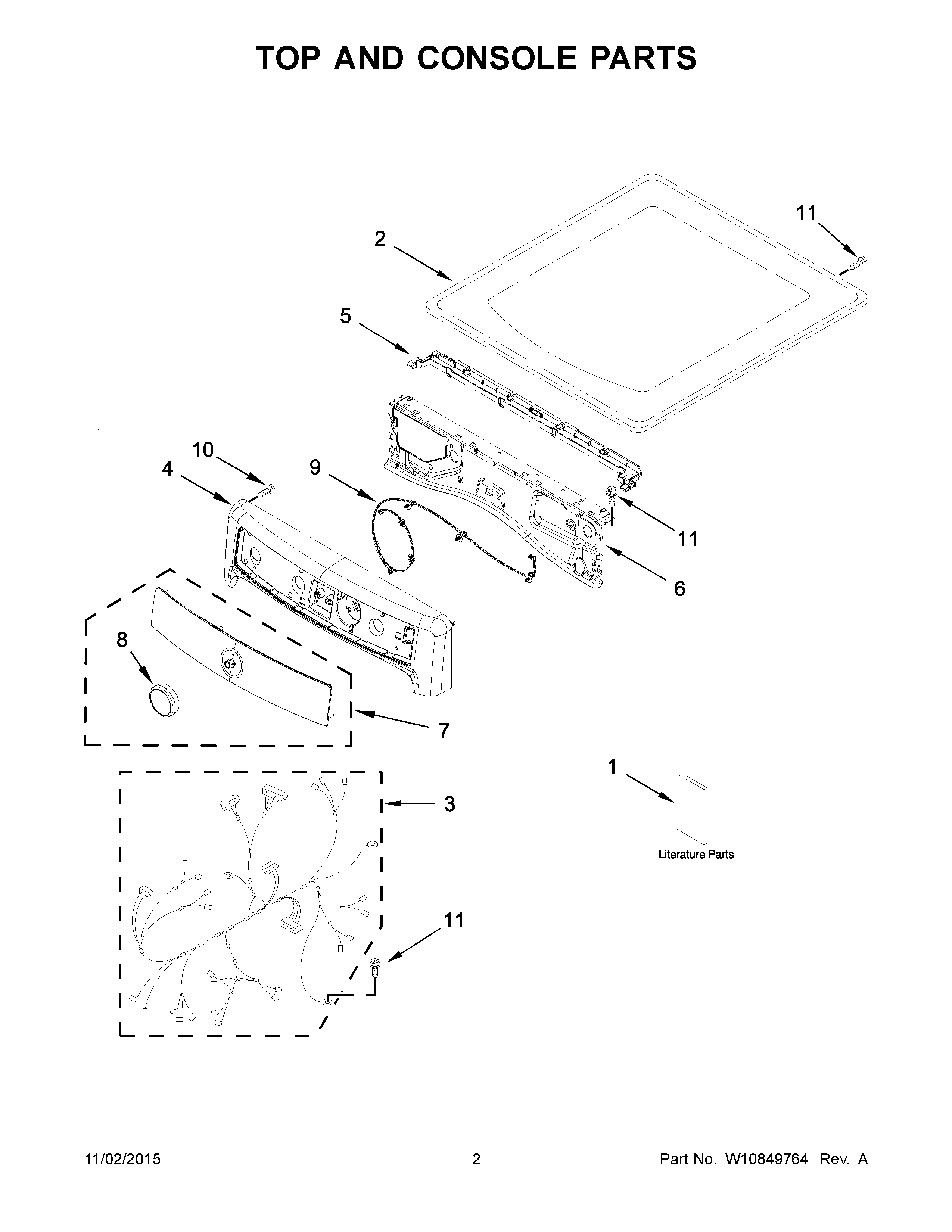

MGD8100DW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1DQUICK START GUIDE
1BTECH SHEET
1USE AND CARE GUIDE
1AMAY W10676163
2ATOP (CHROME SHADOW)
2MAY W10208383
3HARNESS, MAIN WIRING
4MAY W10391555
4ACONSOLE ASSEMBLY (CHROME SHADOW)
5WATER CHANNEL
6MAY W10208198
7MAY W10800519
7AMAY W10800520
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11Screw
