MGD8200FC0 02 – TOP AND CONSOLE PARTS

MGD8200FC0 02 – TOP AND CONSOLE PARTS

Written by

in

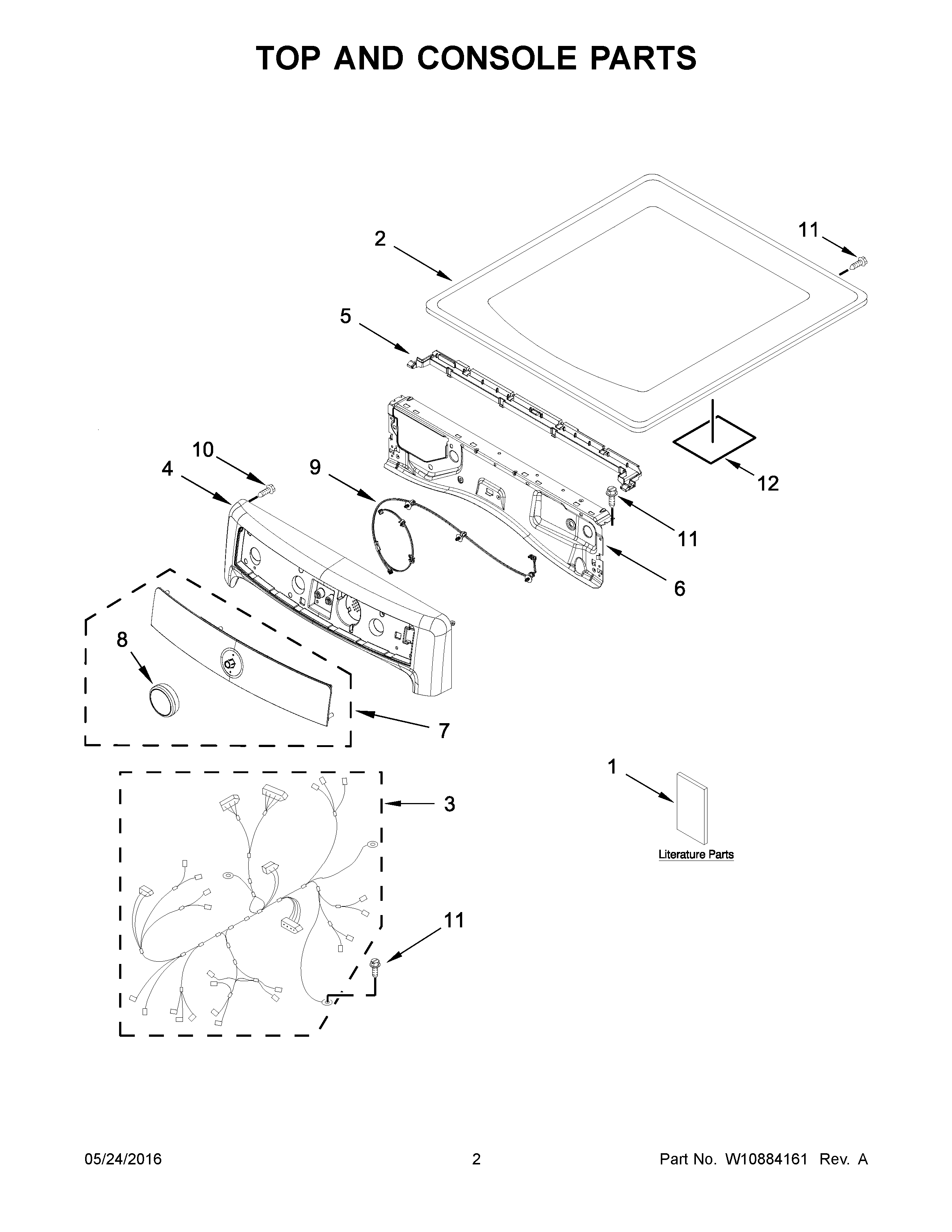

MGD8200FC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1CWIRING DIAGRAM
1AMAY W10775221
1DQUICK START GUIDE
1USE AND CARE GUIDE
2MAY W10208383
2ATOP (CHROME SHADOW)
3HARNESS, MAIN WIRING
4ACONSOLE ASSEMBLY (CHROME SHADOW)
4MAY W10391555
5WATER CHANNEL
6MAY W10208198
7MAY W10783694
7AMAY W10783696
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11Screw
12MAY W10836097
