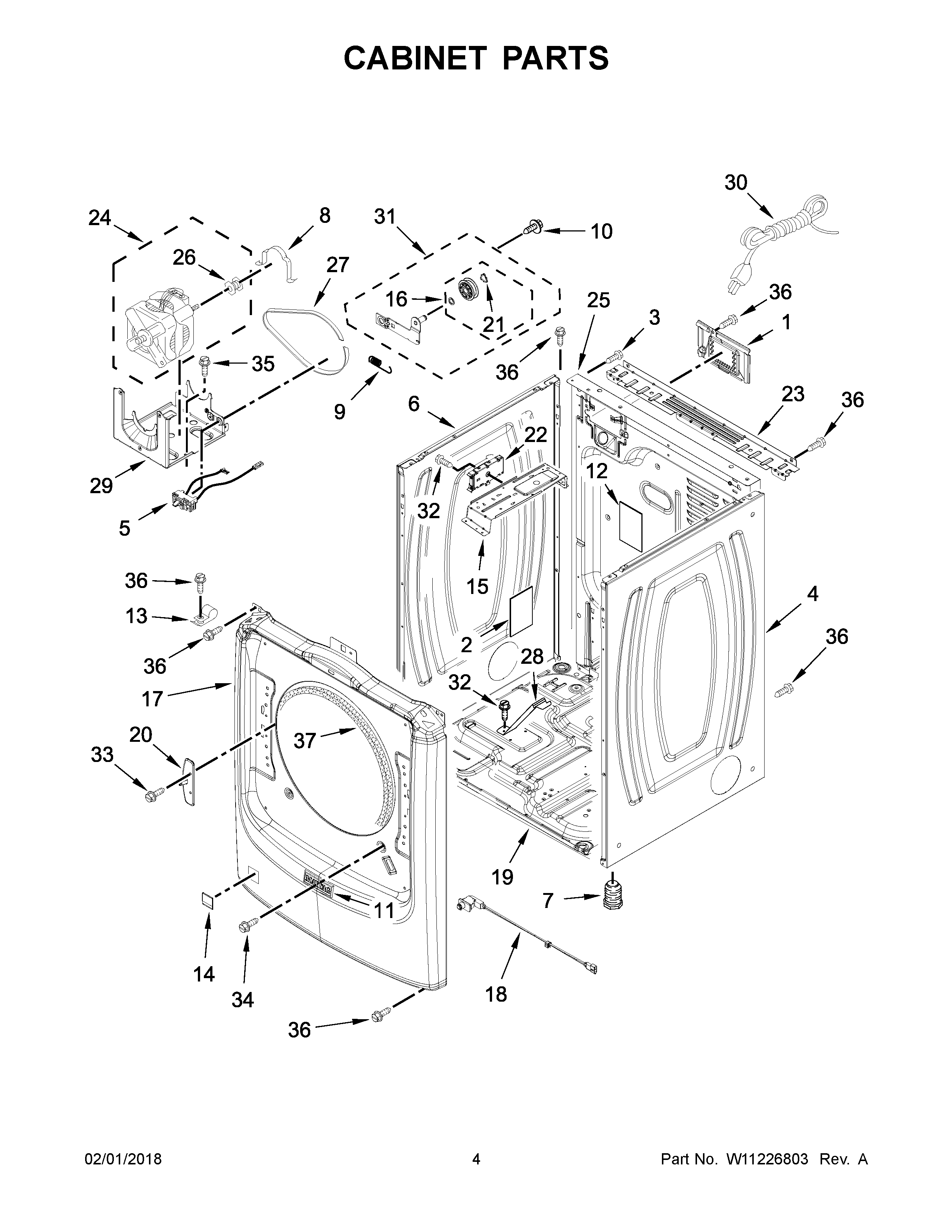

MGD8200FW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	KIT, 4-WAY VENT
1	MAY 8317339
2	MAY W10836097
3	SCREW
4	PANEL, SIDE (RIGHT) (WHITE)
4A	PANEL, SIDE (RIGHT) (CHROME SHADOW)
5	SWITCH, BROKEN BELT
6A	PANEL, SIDE (CHROME SHADOW)
6	MAY W10468495
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY W10446781
10	SCREW
11	BADGE, MAYTAG
12	MAY W10504381
13	MAY 3978776
14A	PLUG, FRONT PANEL (CHROME SHADOW)
14	PLUG, FRONT PANEL (WHITE)
15	MAY W10259611
16	MAY W10468057
17	PANEL, FRONT (WHITE)
17A	PANEL, FRONT (CHROME SHADOW)
18	MAY W10569114
19	MAY 8565046
20	MAY W10208250
21	WASHER, TRI RING
22	CONTROL BOARD
23	MAY W10208382
24	ASSEMBLY, MOTOR
25	MAY W10487430
26	Pulley, Motor
27	MAY W10112954
28	MAY 8529757
29	MAY W10242878
30	CORD, POWER
31	ASSEMBLY, IDLER
32	Screw
33	MAY W10288126
34	SCREW
35	SCREW
36	SCREW
37	MAY 3387242
