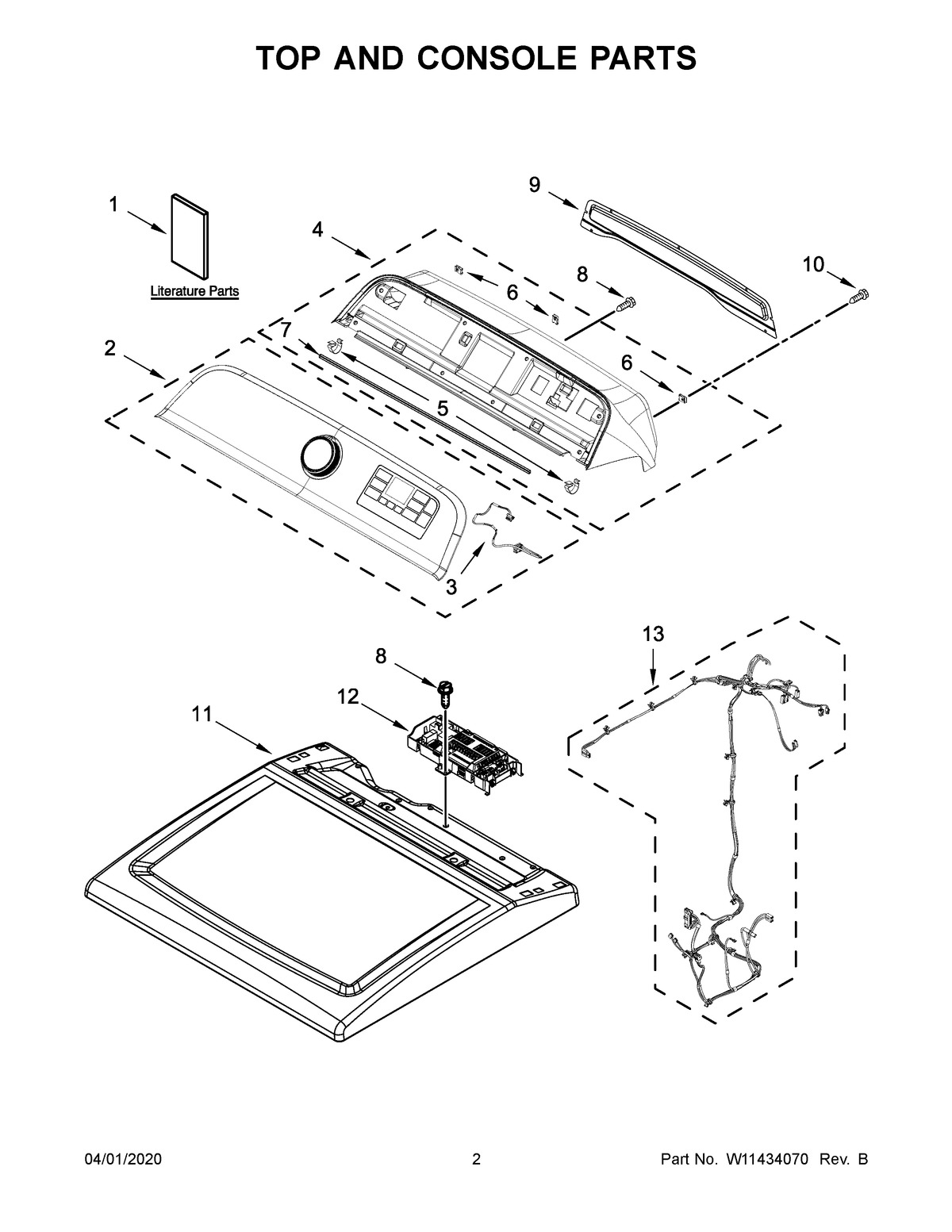

MGD8230HC0 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1B	QUICK START GUIDE
1A	MAY W11175222
1	INSTALLATION INSTRUCTIONS
2	ASSEMBLY, CONSOLE FASCIA (COMPLETE)
3	HARNESS, USER INTERFACE (HMI)
4	CONSOLE (CHROME SHADOW)
5	MAY 8312709
6	NUT, "U"
7	SEAL CONSOLE
8	SCREW
9	MAY W10622402
10	MAY W10567155
11	MAY W10681117
12	CONTROL, ELECTRONIC (ACU)
13	MAIN HARNESS
