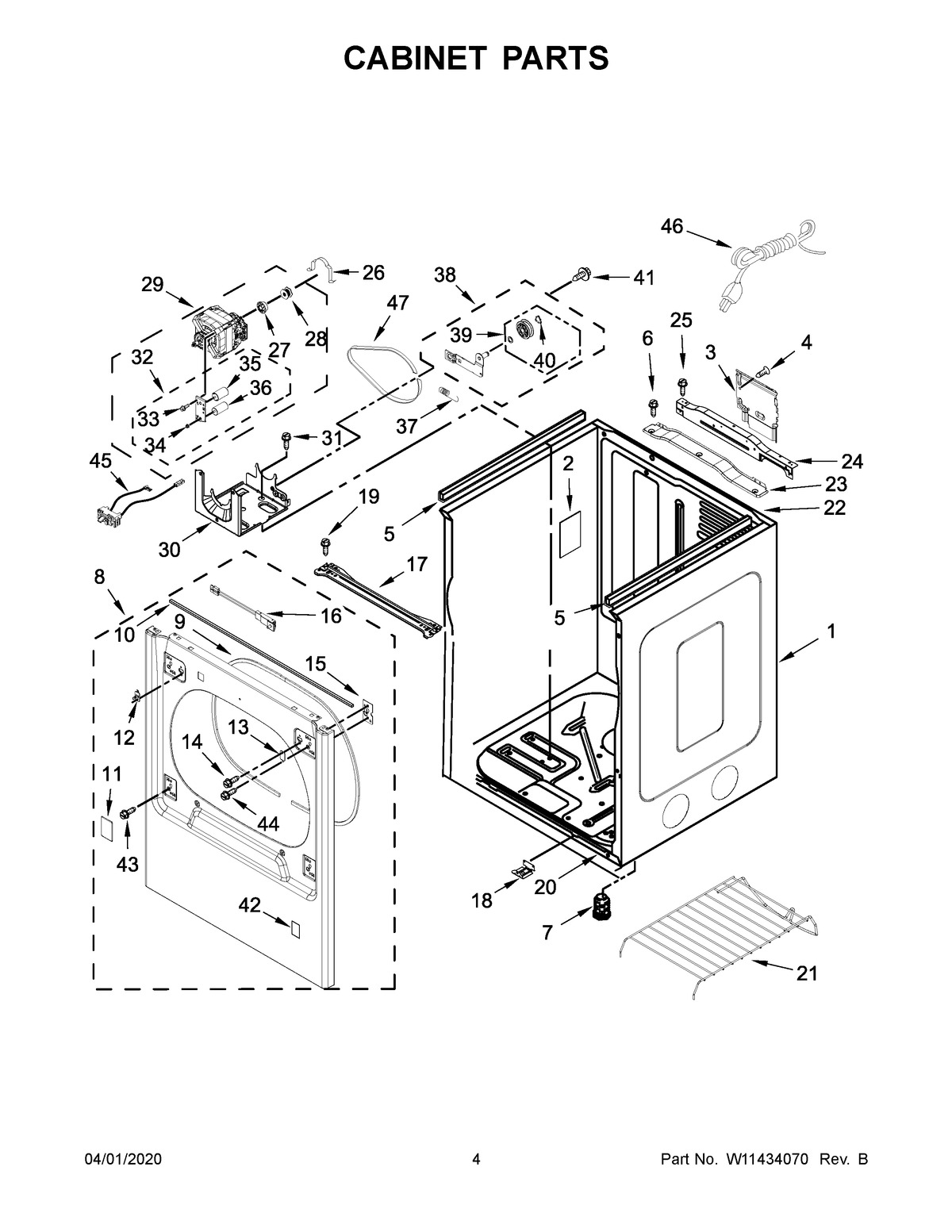

MGD8230HC0 03 – CABINET PARTS

Products

Position	Product
1	PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
2	PANEL, DAMPENING
3	MAY 8317339
4	MAY W10460893
5	MAY W10316616
6	SCREW
7	MAY 3392100
8	PANEL, FRONT (CHROME SHADOW)
9	MAY 3387242
10	SEAL, FOAM
11	PLUG, HINGE (CHROME SHADOW)
12	MAY W10778071
13	MAY W10111888
14	SCREW
15	MAY W10596959
16	MAY W10459026
17	MAY W10722502
18	MAY W10632347
19	SCREW
20	MAY W10613683
21	MAY W10693998
22	PANEL, REAR
23	BULKHEAD BRACKET, REAR PANEL
24	MAY W10622391
25	MAY W10567155
26	CLAMP, MOTOR MOUNT
27	PULLEY, MOTOR
28	MAY 3393657
29	MOTOR ASSEMBLY
30	MAY W10578053
31	SCREW
32	BRACKET ASSEMBLY
33	SCREW
34	NUT
35	CAPACITOR, MOTOR START
36	CAPACITOR, MOTOR RUN
37	MAY W10446781
38	ASSEMBLY, IDLER
39	MAY W10468057
40	WASHER, TRI RING
41	SCREW
42	PLUG, FRONT PANEL (CHROME SHADOW)
43	SCREW
44	MAY W10636208
45	SWITCH, BROKEN BELT
46	CORD, POWER
47	BELT, DRIVE
