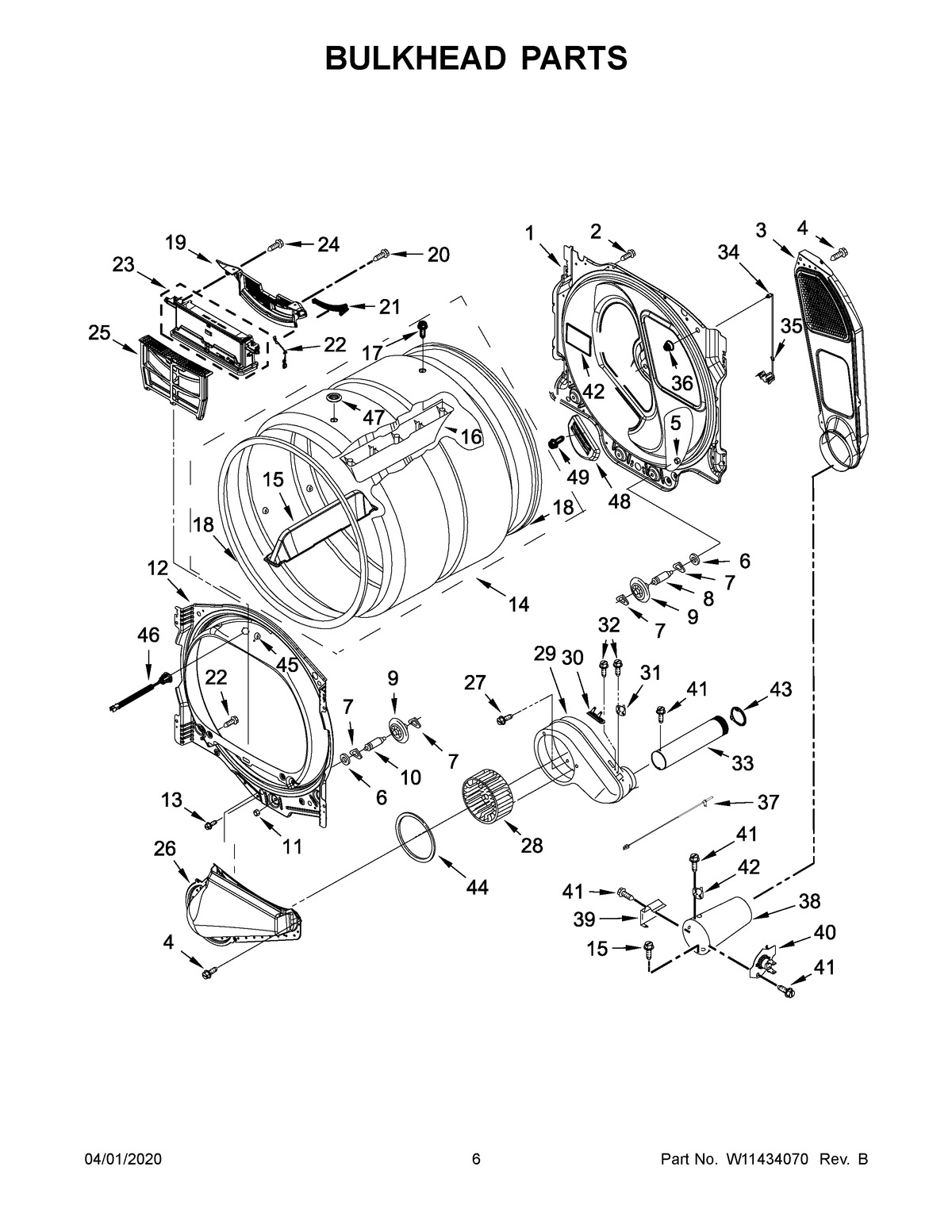

MGD8230HC0 04 – BULKHEAD PARTS

Products

Position	Product
NI	ACCESSORY PARTS, KIT, DRYER – PREMIUM STEAM HOSE (INCLUDES (1) 2' HOSE AND (1) 5' HOSE, (1) Y ADAPTER AND (5) RUBBER WAS
NI	ACCESSORY PARTS, KIT, DRYER – STEAM HOSE (INCLUDES (1) 2' HOSE, (1) 5' HOSE, (1) Y ADAPTER, (2) EXPORT (BRITISH) ADAPTER
NI	ACCESSORY PARTS, INLET HOSE, 5 FT (COLD WATER)
NI	ACCESSORY PARTS, KIT, DRYER – STEAM HOSE (INCLUDES (1) 3' HOSE, (1) 5' HOSE, (1) Y ADAPTER AND (4) RUBBER WASHERS.)
1	MAY W10712886
2	SCREW
3	DUCT, INLET ASSEMBLY
4	MAY 8533971
5	NUT, HEX (LEFT HAND THREAD)
6	WASHER
7	WASHER, TRI RING
8	SHAFT, DRUM ROLLER – LEFT HAND THREAD
9	ROLLER, SUPPORT
10	SHAFT, DRUM ROLLER RIGHT HAND THREAD
11	NUT, HEX
12	MAY W10861007
13	SCREW
14	ASSEMBLY, DRUM
15	MAY W10767074
16	MAY W10767090
17	MAY W10219342
18	MAY W10664120
19	MAY W10608806
20	Screw, 8-18 x 1/2
21	MAY W10608814
22	MAY W10657328
23	MAY W10608813
24	SCREW
25	WHITE
26	MAY W10868982
27	Screw
28	MAY 697772
29	MAY W10667717
30	FUSE, THERMAL (91C)
31	THERMISTOR
32	Screw
33	MAY W10608817
34	VALVE HOSE ASSY.
35	MAY 3391018
36	NOZZLE, CAP
37	THERMISTOR, GAS INLET
38	MAY 8573824
39	MAY 338906
40	CUT-OFF, THERMAL
41	SCREW,8-18 X 3/8
42	THERMOSTAT, HI LIMIT
43	MAY W10344699
44	MAY W10868675
45	CAP
46	MAY W10629046
47	CAP, PLUG
48	SENSOR ASSEMBLY, QUAD BULKHEAD
49	SCREW
