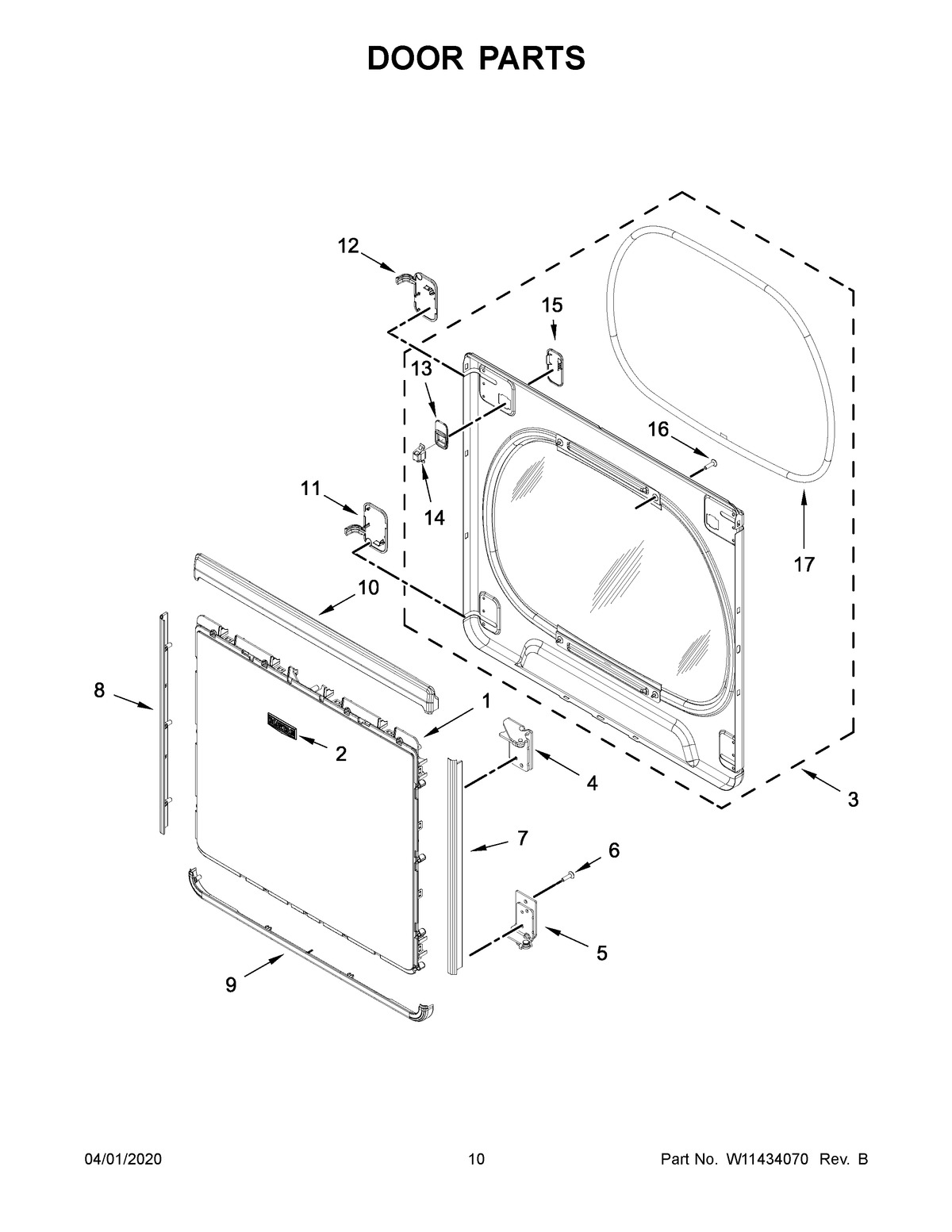

MGD8230HC0 06 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, OUTER DOOR
2	BADGE
3	ASSEMBLY, INNER DOOR (CHROME SHADOW)
4	MAY W10783754
5	MAY W10783755
6	Screw
7	TRIM, SIDE (LEFT)
8	TRIM, SIDE (RIGHT)
9	TRIM, SIDE (BOTTOM)
10	MAY W10608739
11	HINGE COVER, BOTTOM (CHROME SHADOW)
12	HINGE COVER, TOP (CHROME SHADOW)
13	BEZEL, DOOR CATCH (CHROME SHADOW)
14	MAY W10610880
15	COVER, DOOR CATCH (CHROME SHADOW)
16	MAY 342055
17	MAY W10763835
