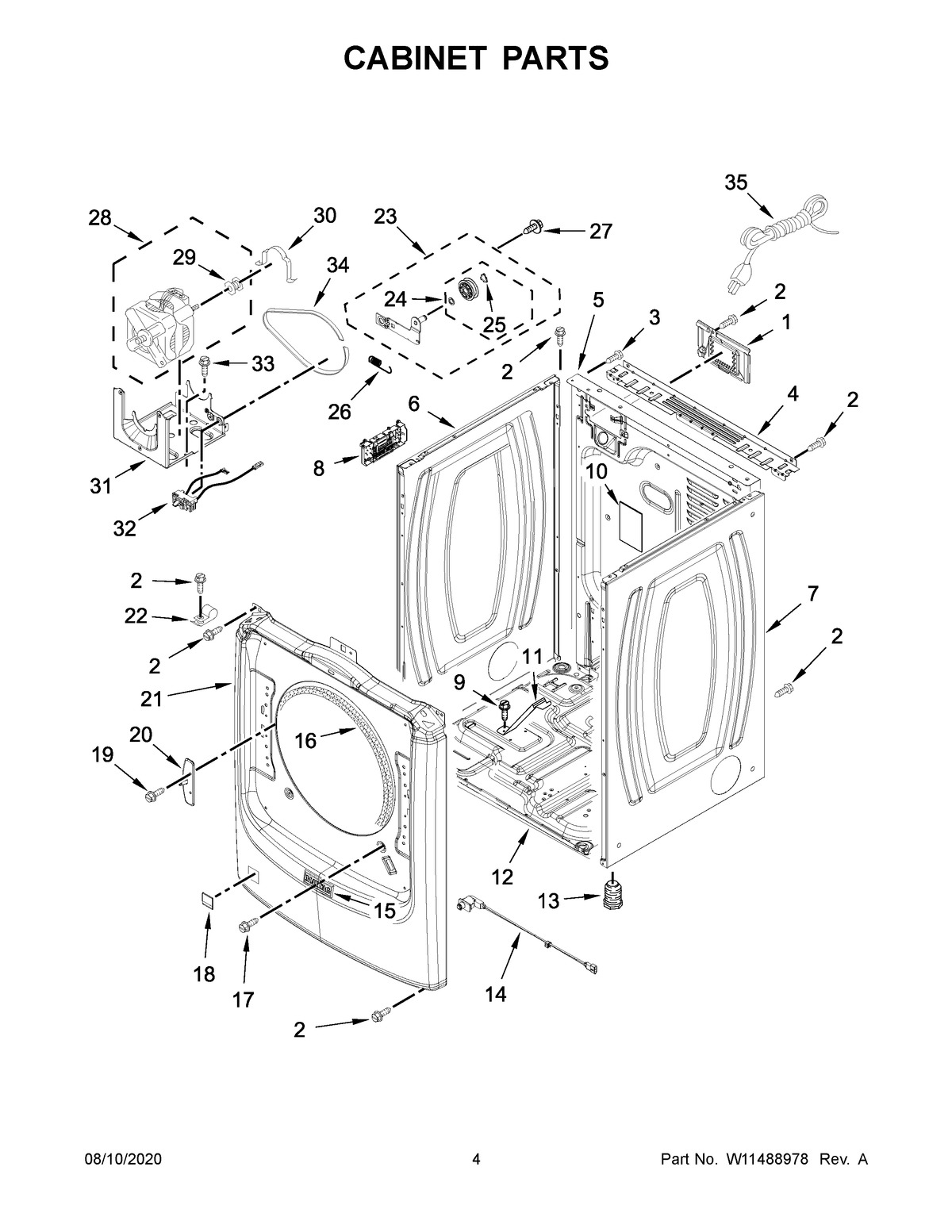

MGD8630HC2 03 – CABINET PARTS

Products

Position	Product
NI	KIT, 4-WAY VENT
NI	MAY 279810
1	MAY 8317339
2	SCREW
3	SCREW
4	MAY W10208382
5	MAY W10487430
6A	MAY W11177570
6	MAY W11177568
7	MAY W11177569
7A	MAY W11177571
8	MAY W11461214
9	Screw
10	MAY W10504381
11	MAY 8529757
12	MAY 8565046
13	MAY 3392100
14	ASSEMBLY, DOOR SWITCH
15	BADGE, MAYTAG
16	MAY 3387242
17	SCREW
18A	PLUG, FRONT PANEL (CHROME SHADOW)
18	PLUG, FRONT PANEL (WHITE)
19	MAY W10288126
20	MAY W10208250
21	MAY W11421266
21A	MAY W11421262
22	MAY 3978776
23	ASSEMBLY, IDLER
24	MAY W10468057
25	WASHER, TRI RING
26	MAY W10446781
27	SCREW
28	ASSEMBLY, MOTOR
29	Pulley, Motor
30	CLAMP, MOTOR MOUNT
31	BRACKET, MOTOR MOUNTING
32	SWITCH, BROKEN BELT
33	SCREW
34	MAY 3387610
35	MAY W11308561
