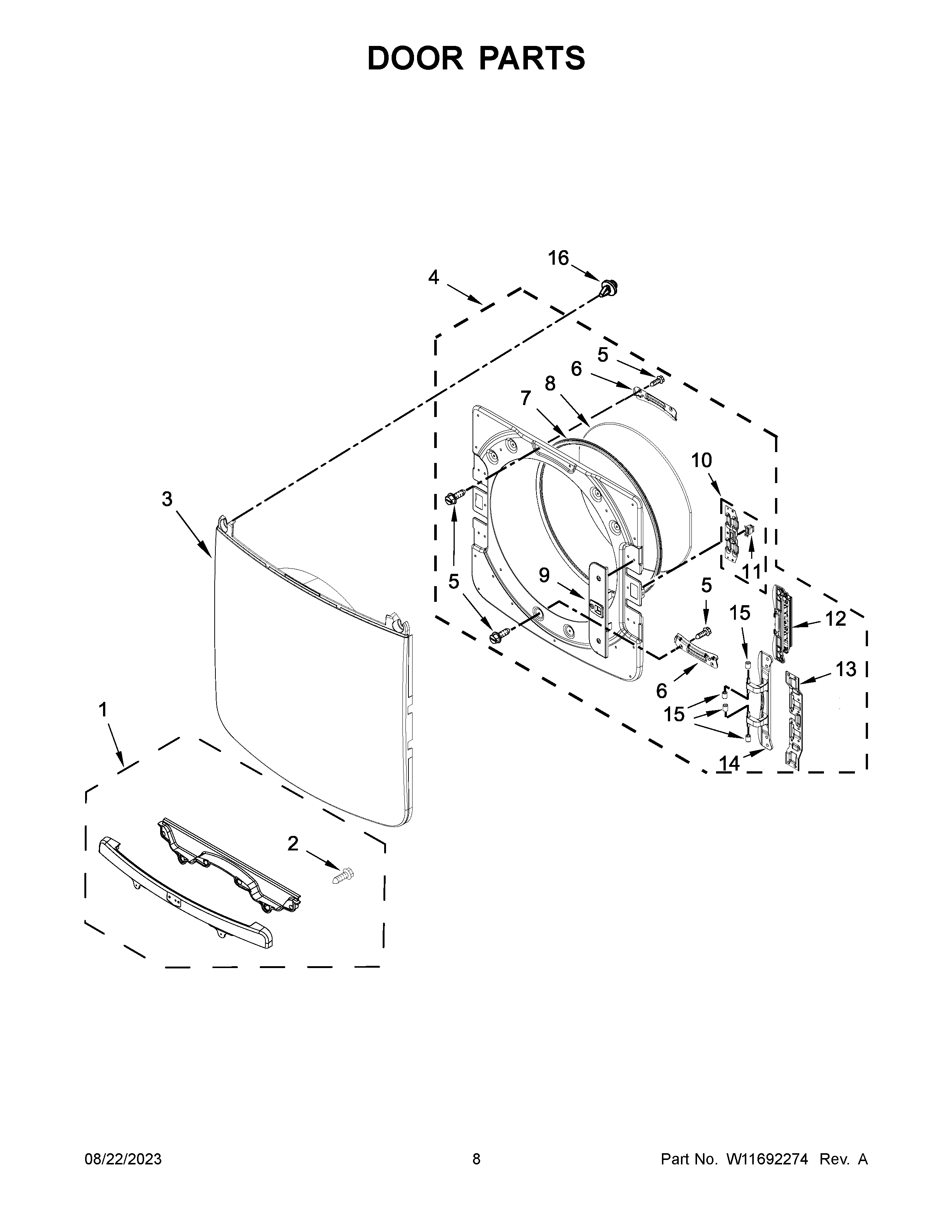

MGD8630HC4 05 – DOOR PARTS

MGD8630HC4 05 – DOOR PARTS

Written by

in

MGD8630HC4 05 – DOOR PARTS

Products

Position	Product
1	W10626038 Whirlpool Handle
2	SCREW
3	W11310052 Whirlpool Door
4	W11465962 Whirlpool Door Assembly
5	SCREW
6	BRACKET, GLASS
7	W11310035 Whirlpool Seal
8	W11310036 Whirlpool Door Glass
9	W11310050 Whirlpool Cover Assembly
10	WPW10208254 Whirlpool Catch
11	W11240283 Whirlpool Catch Assembly
12	HINGE
13	WPW10208419 Whirlpool Plate
14	HINGE
15	WPW10208398 Whirlpool Hinge Pin Cap
16	W11310051 Whirlpool Bumper
