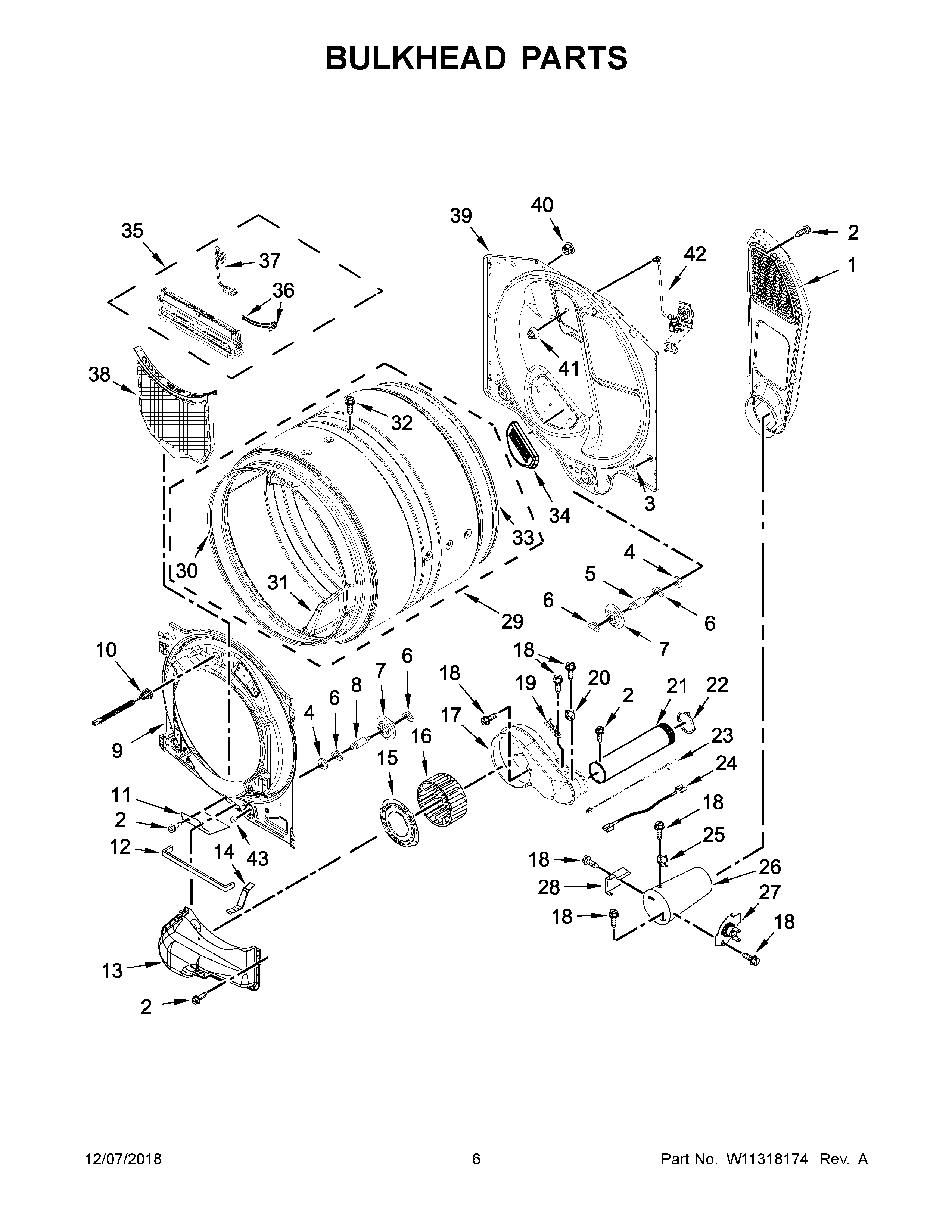

MGD8630HW0 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY W10295533
2	SCREW
3	NUT, HEX (LEFT HAND THREAD)
4	WASHER
5	SHAFT, DRUM ROLLER – LEFT HAND THREAD
6	WASHER, TRI RING
7	ROLLER, SUPPORT
8	SHAFT, DRUM ROLLER RIGHT HAND THREAD
9	BULKHEAD, FRONT
10	MAY W11203983
11	MAY W10128629
12	MAY W10211950
13	MAY W10211896
14	MAY W10414388
15	MAY W11254843
16	MAY 697772
17	MAY W10211911
18	Screw
19	FUSE, THERMAL (91C)
20	THERMISTOR
21	MAY W10342188
22	MAY W10344699
23	THERMISTOR, GAS INLET
24	MAY W10920818
25	THERMOSTAT, HI LIMIT
26	MAY 8573824
27	CUT-OFF, THERMAL
28	MAY 338906
29	MAY W10541657
30	MAY W10521122
31	MAY W10280771
32	MAY W10219342
33	MAY W10521118
34	SENSOR ASSEMBLY, QUAD BULKHEAD
35	ASSEMBLY, OUTLET GRILL AND HOUSING
36	SENSOR, ELECTRODE
37	MAY W10298258
38	LINT SCREEN (WHITE)
39	MAY W11209934
40	MAY 8529007
41	NOZZLE, CAP
42	VALVE AND HOSE ASSEMBLY
43	NUT, HEX
