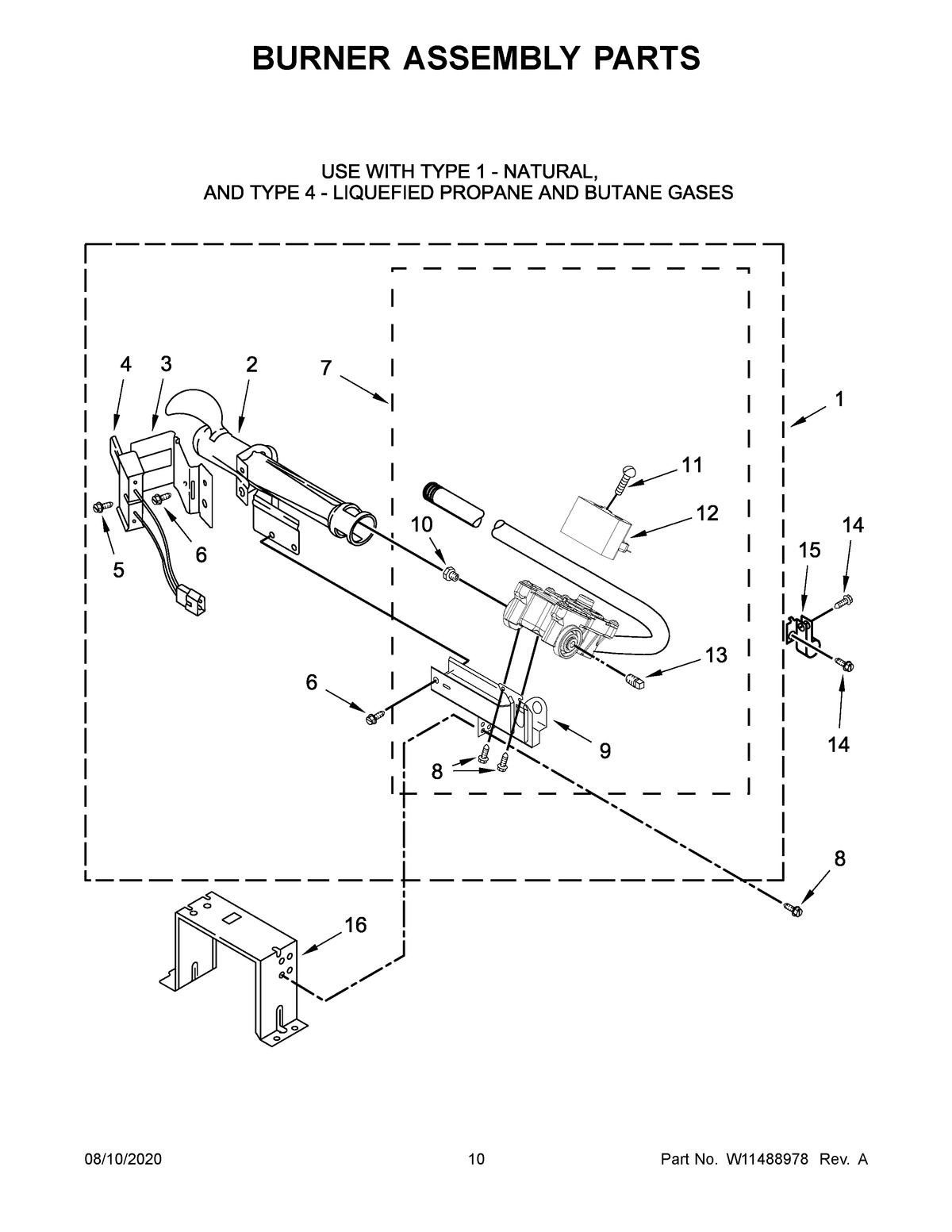

MGD8630HW2 06 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	CONVERSION KIT (TYPE 1 TO TYPE 4 LPG)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W11192399
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY W10366705
6	SCREW
7	MAY W11192400
8	SCREW
9	MAY 3389871
10A	ORIFICE, BURNER (TYPE 4 (BUTANE))
10	ORIFICE, BURNER (TYPE 1 (NATURAL))
10B	Orifice, Burner (Type 4 (Propane))
11	MAY 326049536
12	MAY W10328463
13	MAY W10295523
14	SCREW
15	MAY 3387561
16	MAY 3389889
