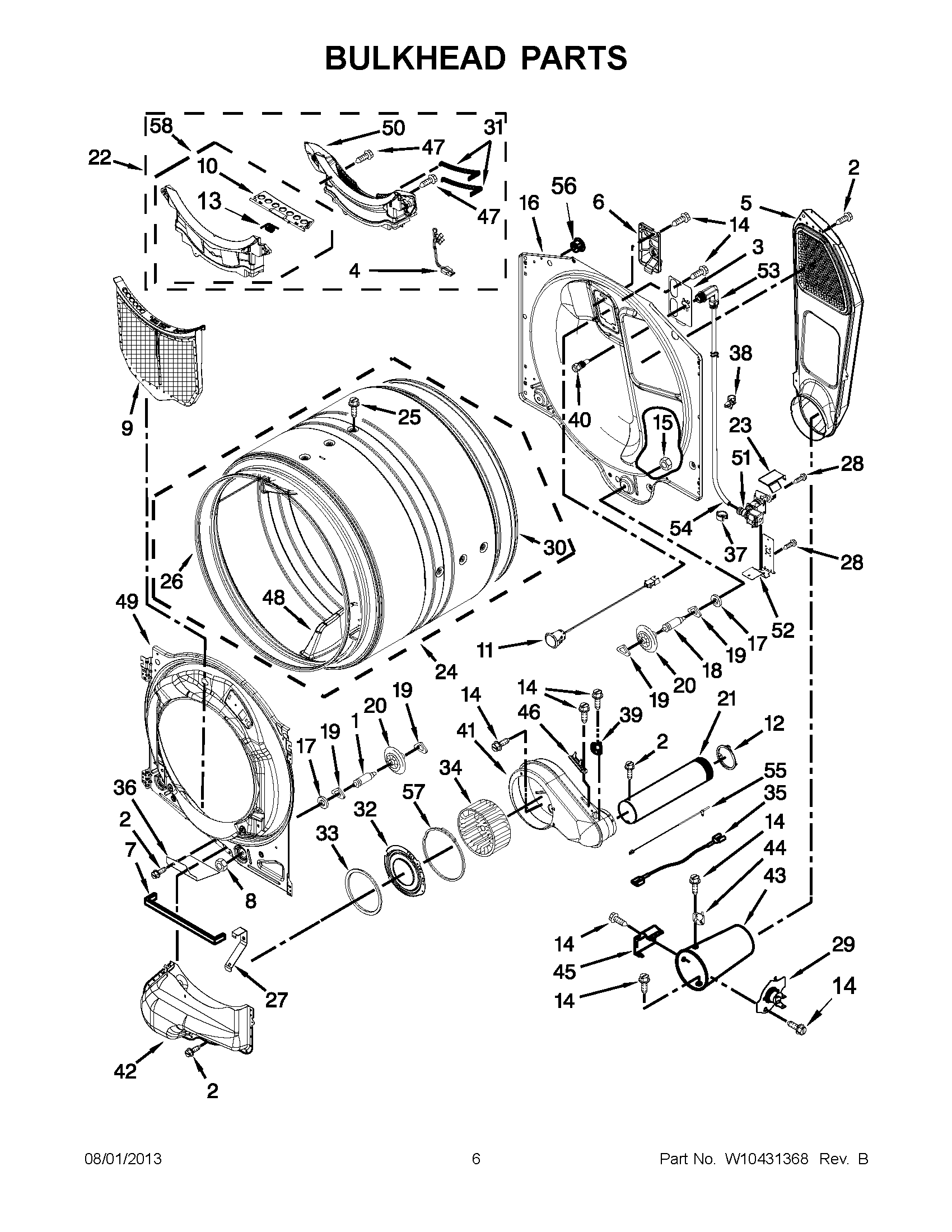

MGD9000YR1 03 – BULKHEAD PARTSadmin2025-04-26T13:06:44+00:00MGD9000YR1 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | SCREW |
| 3 | MAY W10249422 |
| 4 | MAY W10298258 |
| 5 | MAY W10295533 |
| 6 | MAY W10208422 |
| 7 | MAY W10211950 |
| 8 | NUT, HEX |
| 9 | MAY W10370972 |
| 10 | MAY W10219016 |
| 11 | MAY W10236079 |
| 12 | MAY W10344699 |
| 13 | MAY W10219015 |
| 14 | Screw |
| 15 | NUT, HEX (LEFT HAND THREAD) |
| 16 | MAY W10211946 |
| 17 | WASHER |
| 18 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 19 | WASHER, TRI RING |
| 20 | ROLLER, SUPPORT |
| 21 | MAY W10342188 |
| 22 | MAY W10219012 |
| 23 | MAY W10530670 |
| 24 | MAY W10280782 |
| 25 | MAY W10219342 |
| 26 | MAY W10273050 |
| 27 | MAY W10414388 |
| 28 | SCREW,8-18 X 3/8 |
| 29 | CUT-OFF, THERMAL |
| 30 | MAY 697694 |
| 31 | SENSOR, ELECTRODE |
| 32 | MAY W10211901 |
| 33 | MAY W10211899 |
| 34 | MAY W10211915 |
| 35 | Jumper-Tco Hi-Limit |
| 36 | MAY W10128629 |
| 37 | MAY W10044599 |
| 38 | MAY 3391018 |
| 39 | THERMISTOR |
| 40 | MAY W10277503 |
| 41 | MAY W10211911 |
| 42 | MAY W10211896 |
| 43 | MAY 8573824 |
| 44 | THERMOSTAT, HI LIMIT |
| 45 | MAY 338906 |
| 46 | Fuse, Thermal (91 C) |
| 47 | SCREW |
| 48 | MAY W10280771 |
| 49 | MAY W10211930 |
| 50 | MAY W10211903 |
| 51 | MAY W10505663 |
| 52 | MAY W10510098 |
| 53 | MAY W10347739 |
| 54 | MAY W10348621 |
| 55 | MAY W10419068 |
| 56 | MAY 8529007 |
| 57 | SEAL, PLATE COVER |
| 58 | MAY W10219013 |
