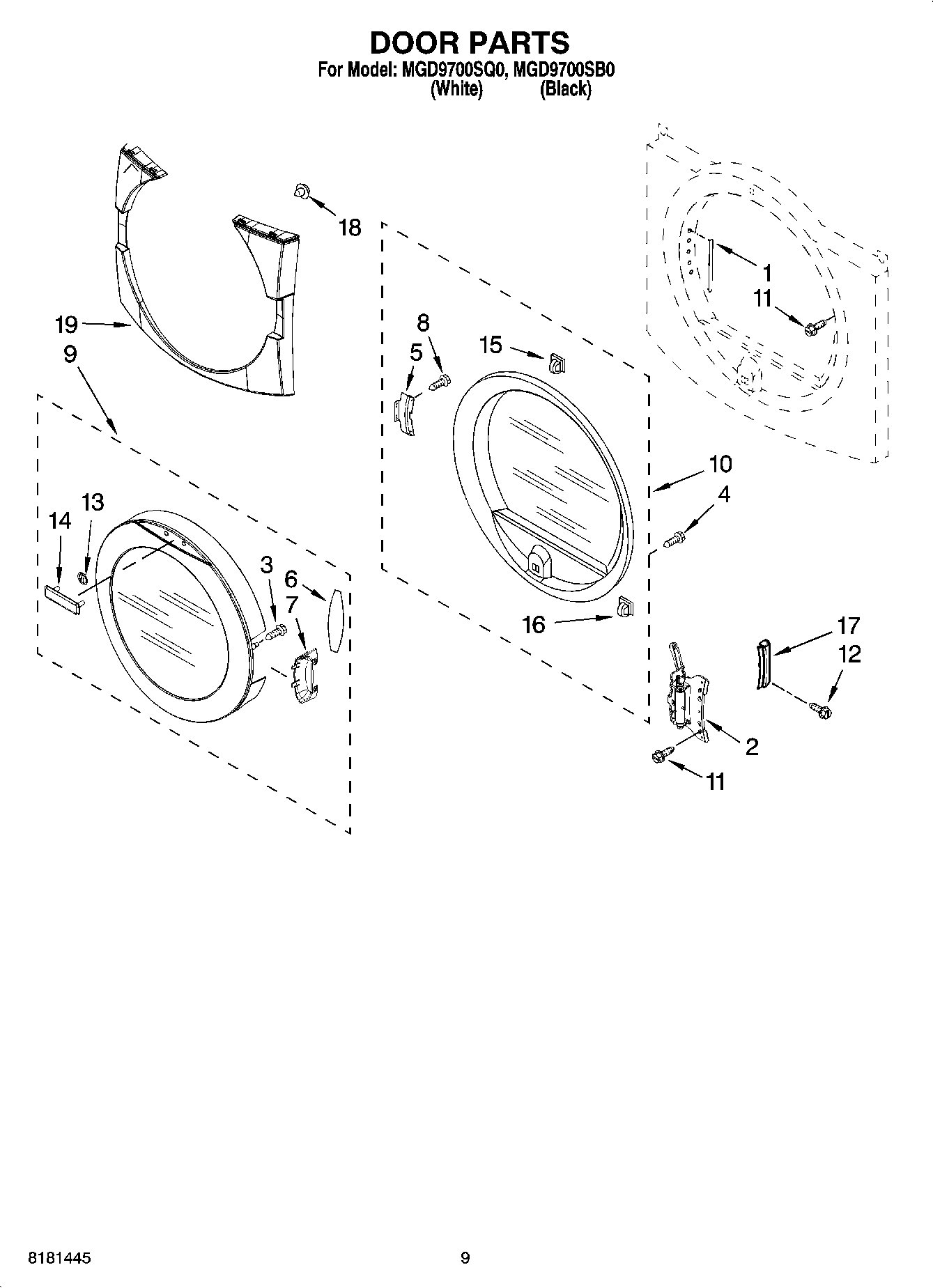

MGD9700SQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	ACCESSORY PARTS, KIT, HOLD DOWN
	ACCESSORY PARTS, KIT, DRYER REPAIR
	MAY 8541503
	MAY 786020
	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
	PAINT, TOUCH-UP (1/2OZ. BLACK)
	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	Plug-Strip Front Panel
2	MAY W10111141
3	Screw
4	Screw
5	MAY 8529539
6	MAY 8541011
7	Filler, Door Handle (White)
8	SCREW, 10-16 X 1/2
9	Door & Window Assembly (Includes Illus. 6, 7, 13 & 14) (Black)
9	Door & Window Assembly (Includes Illus. 6, 7, 13 & 14) (White)
10	Inner Door Assembly (Includes Illus. 5, 8 16 & 20)
11	MAY 355515
12	Screw, 8-18 x 7/32
13	MAY 8558182
14	MAY W10116209
15	Catch, Door
16	DOOR CATCH ASSEMBLY
17	MAY 8566486
17	MAY 8579980
18	MAY 8547091
19	MAY 8562596
19	MAY 8579981
