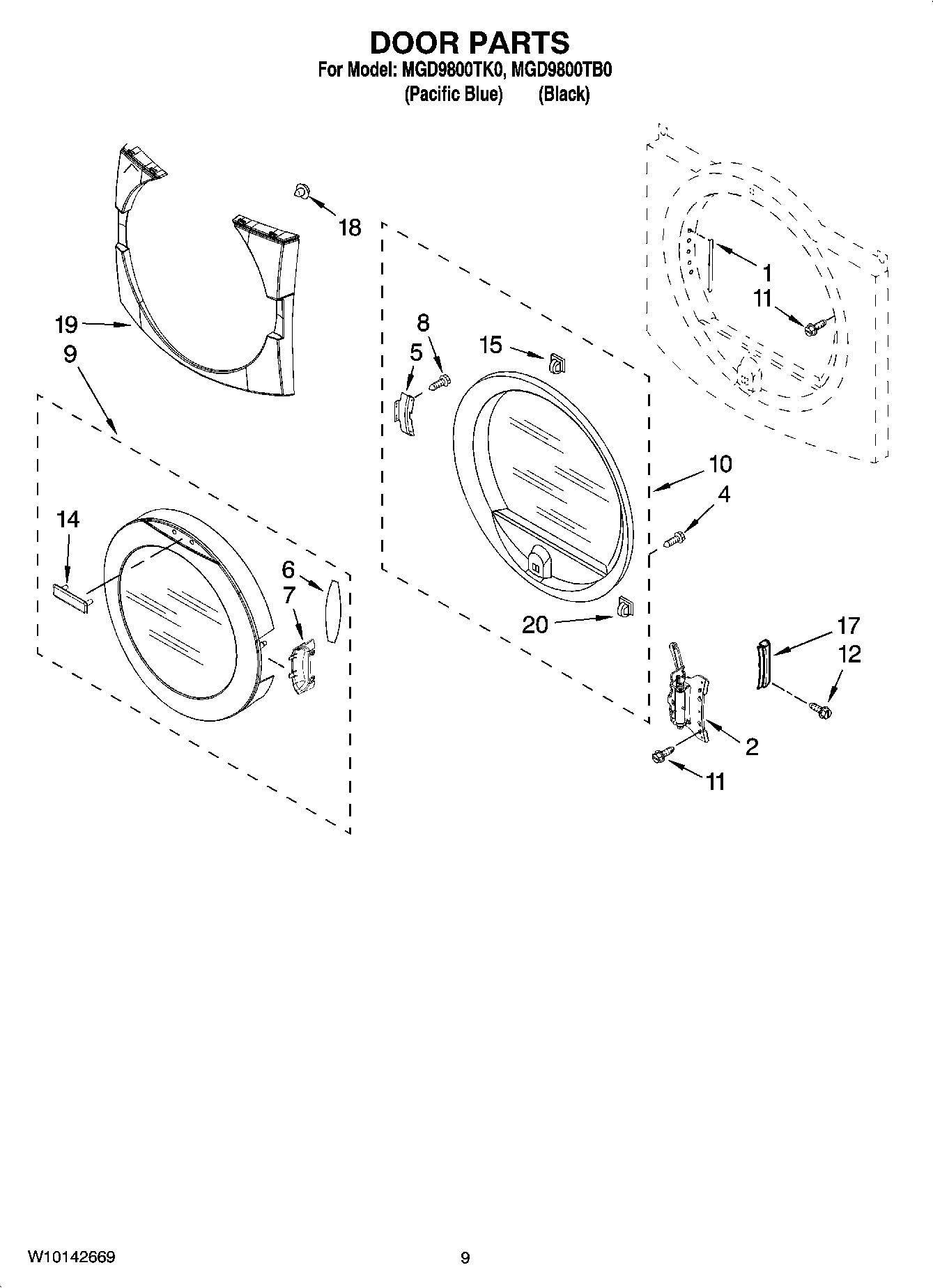

MGD9800TB0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 786020
NI	MAY 4396816
NI	MAY 8541503
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	MAY 4396603
1	MAY W10085230
2	MAY W10111141
4	Screw
5	MAY 8529539
6	MAY 8541011
7	Filler, Door Handle (White)
8	SCREW, 10-16 X 1/2
9	Door & Window Assembly (Includes Illus. 6, 7, 13 & 14) (White)
10	Inner Door Assembly (Includes Illus. 5, 8 16 & 20)
11	MAY 355515
12	Screw, 8-18 x 7/32
14	MAY W10116209
15	Catch, Door
17	MAY W10133961
17	Cover Hinge, Rotating (Pacific Blue)
18	MAY 8547091
19	MAY W10133977
19	Trim & Clip Assembly (Pacific Blue)
20	DOOR CATCH ASSEMBLY
