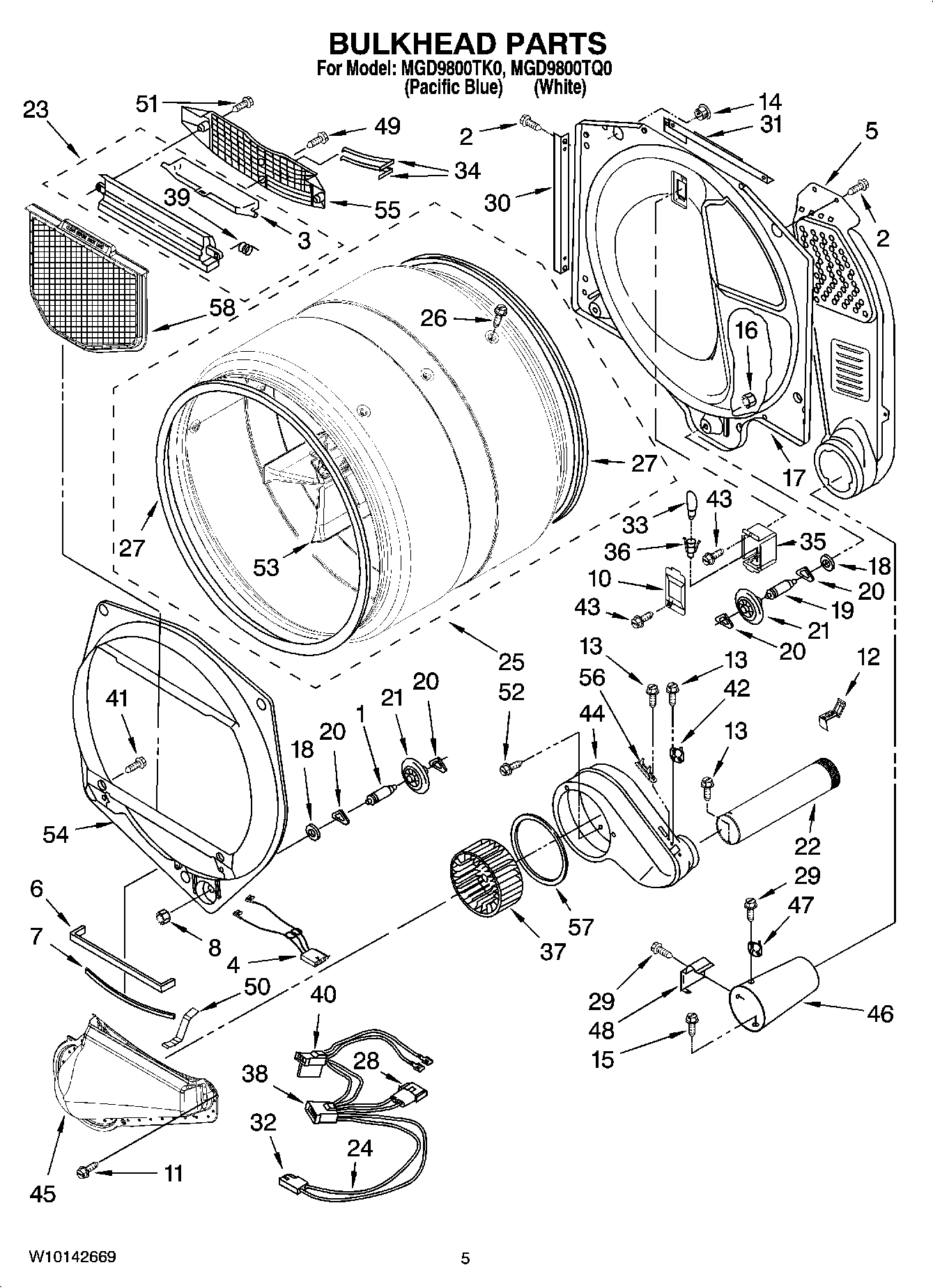

MGD9800TK0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY 3394984
4	SENSOR HARNESS
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
10	MAY 3402841
11	Screw
12	CLIP, EXHAUST
13	MAY 8533971
14	MAY 8529007
15	Screw
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	MAY W10121334
21	MAY 8536973
22	MAY 8563745
23	MAY 3394985
24	Harness, Gas
25	MAY W10113138
26	MAY W10109200
27	MAY 697694
28	Connector Sensor
29	SCREW,8-18 X 3/8
30	MAY 8519221
31	MAY 8571651
32	Plug, 2-Way Terminal
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 3977373
36	MAY W10136369
37	MAY 697772
38	MAY 3403498
39	Spring, Lint Screen Door
40	CONNECTOR, 2-POSITION (GAS VALVE)
41	Screw, 8-18 x 1/2
42	THERMISTOR
43	MAY 487909
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8066047
47	MAY 8573028
48	MAY 338906
49	SCREW
50	CLIP-SPRING
51	SCREW
52	MAY 359625
53	MAY W10113136
54	MAY 8519245
55	MAY 8299979
56	Fuse, Thermal (91 C)
57	SEAL, PLATE COVER
58	MAY W10049370
