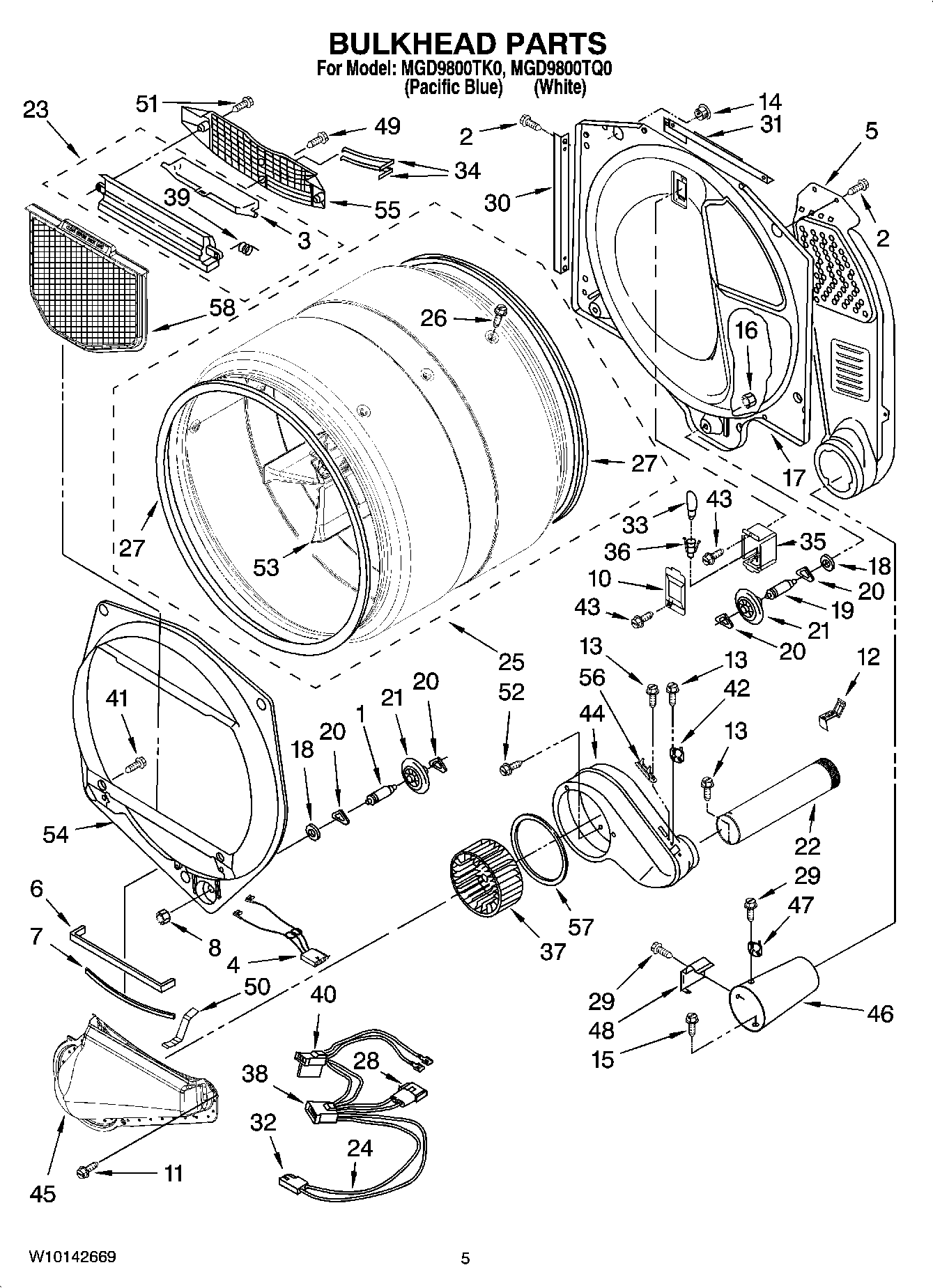

MGD9800TQ0 03 – BULKHEAD PARTSadmin2025-04-26T13:07:04+00:00MGD9800TQ0 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8575324 |
| 2 | SCREW |
| 3 | MAY 3394984 |
| 4 | SENSOR HARNESS |
| 5 | MAY 3394346 |
| 6 | MAY 697813 |
| 7 | MAY 697814 |
| 8 | NUT, HEX |
| 10 | MAY 3402841 |
| 11 | Screw |
| 12 | CLIP, EXHAUST |
| 13 | MAY 8533971 |
| 14 | MAY 8529007 |
| 15 | Screw |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | MAY 8520836 |
| 18 | WASHER |
| 19 | MAY 8575325 |
| 20 | MAY W10121334 |
| 21 | MAY 8536973 |
| 22 | MAY 8563745 |
| 23 | MAY 3394985 |
| 24 | Harness, Gas |
| 25 | MAY W10113138 |
| 26 | MAY W10109200 |
| 27 | MAY 697694 |
| 28 | Connector Sensor |
| 29 | SCREW,8-18 X 3/8 |
| 30 | MAY 8519221 |
| 31 | MAY 8571651 |
| 32 | Plug, 2-Way Terminal |
| 33 | MAY 3406124 |
| 34 | SENSOR, ELECTRODE |
| 35 | MAY 3977373 |
| 36 | MAY W10136369 |
| 37 | MAY 697772 |
| 38 | MAY 3403498 |
| 39 | Spring, Lint Screen Door |
| 40 | CONNECTOR, 2-POSITION (GAS VALVE) |
| 41 | Screw, 8-18 x 1/2 |
| 42 | THERMISTOR |
| 43 | MAY 487909 |
| 44 | MAY 8544362 |
| 45 | Lint Duct Assembly |
| 46 | MAY 8066047 |
| 47 | MAY 8573028 |
| 48 | MAY 338906 |
| 49 | SCREW |
| 50 | CLIP-SPRING |
| 51 | SCREW |
| 52 | MAY 359625 |
| 53 | MAY W10113136 |
| 54 | MAY 8519245 |
| 55 | MAY 8299979 |
| 56 | Fuse, Thermal (91 C) |
| 57 | SEAL, PLATE COVER |
| 58 | MAY W10049370 |
