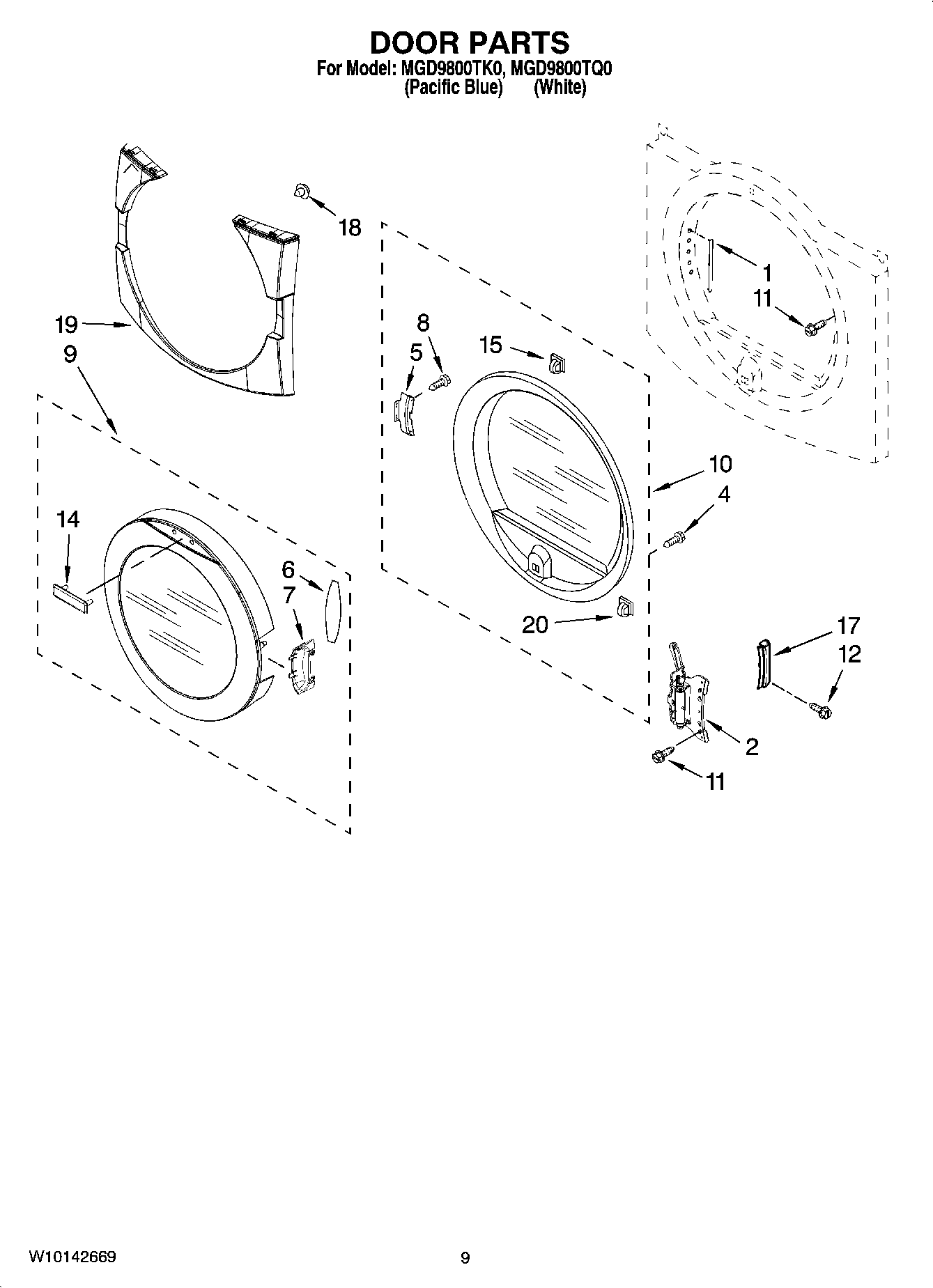

MGD9800TQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

MGD9800TQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

MGD9800TQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIMAY 4396816
NIMAY 8541503
NIACCESSORY PARTS, KIT, HOLD DOWN
NIACCESSORY PARTS, KIT, DRYER REPAIR
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
NIACCESSORY PARTS (KIT, DRYER VENT TESTING)
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIMAY 4396603
1MAY W10085230
2MAY W10111141
4Screw
5MAY 8529539
6MAY 8541011
7Filler, Door Handle (White)
8SCREW, 10-16 X 1/2
9Door & Window Assembly (Includes Illus. 6, 7, 13 & 14) (White)
10Inner Door Assembly (Includes Illus. 5, 8 16 & 20)
11MAY 355515
12Screw, 8-18 x 7/32
14MAY W10116209
15Catch, Door
17Cover Hinge, Rotating (Pacific Blue)
17MAY 8566486
18MAY 8547091
19MAY 8562596
19Trim & Clip Assembly (Pacific Blue)
20DOOR CATCH ASSEMBLY
