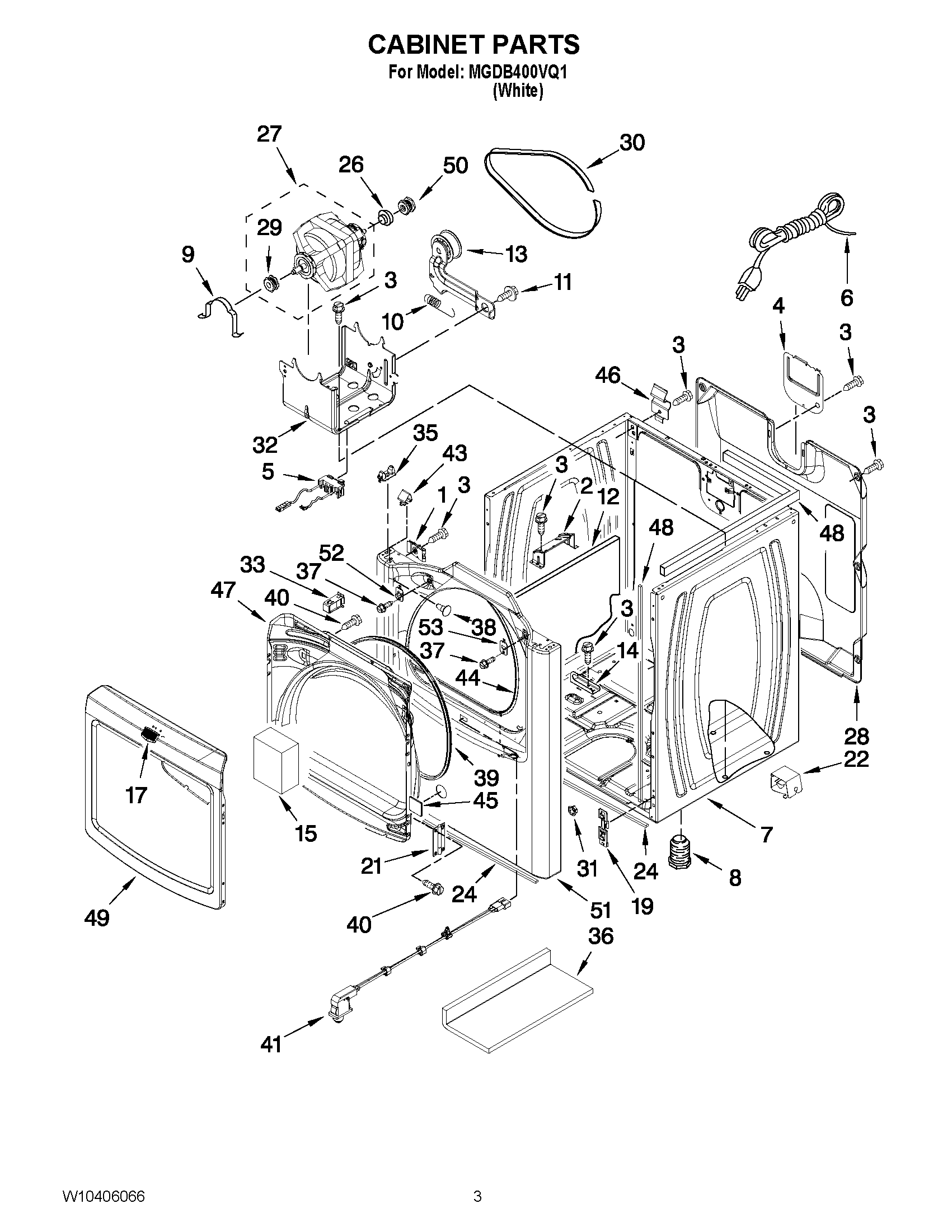

MGDB400VQ1 02 – CABINET PARTS
Written by
in
MGDB400VQ1 02 – CABINET PARTS
Products
Position
Product
NI
MAY 279810
1
Clip, Ground (2)
2
MAY 8544753
3
SCREW
4
MAY 8558833
5
MAY W10314253
6
MAY 344020
7
CABINET (INCLUDES ITEM 51 )
8
MAY 3392100
9
MAY 660658
10
MAY 3387374
11
SCREW
12
MAY W10123956
13
MAY 8547160
14
BRACKET, PIPE
15
MAY W10111867
17
MAY W10323735
19
MAY 3394083
21
HINGE ASSEMBLY
22
Cover-Gas Valve
24
MAY W10224768
26
MAY 3393657
27
MAY W10136932
28
MAY 8558830
29
MAY W10139247
30
MAY W10136934
31
Plug, Hole
32
MAY W10308685
33
MAY W10111905
35
LOCATOR, SNAP-DOWN
36
MAY W10215725
37
MAY 3400805
38
MAY W10144494
39
MAY W10221653
40
MAY 342055
41
MAY W10201785
43
Lock-Top Front (2)
44
MAY W10044490
45
PLUG, FRONT PANEL (WHITE)
46
MAY 238088
47
MAY W10111879
48
Seal, Foam
49
MAY W10111876
50
MAY W10136930
51
PANEL, FRONT (WHITE)
52
Strike, Door
53
MAY W10111888
←
