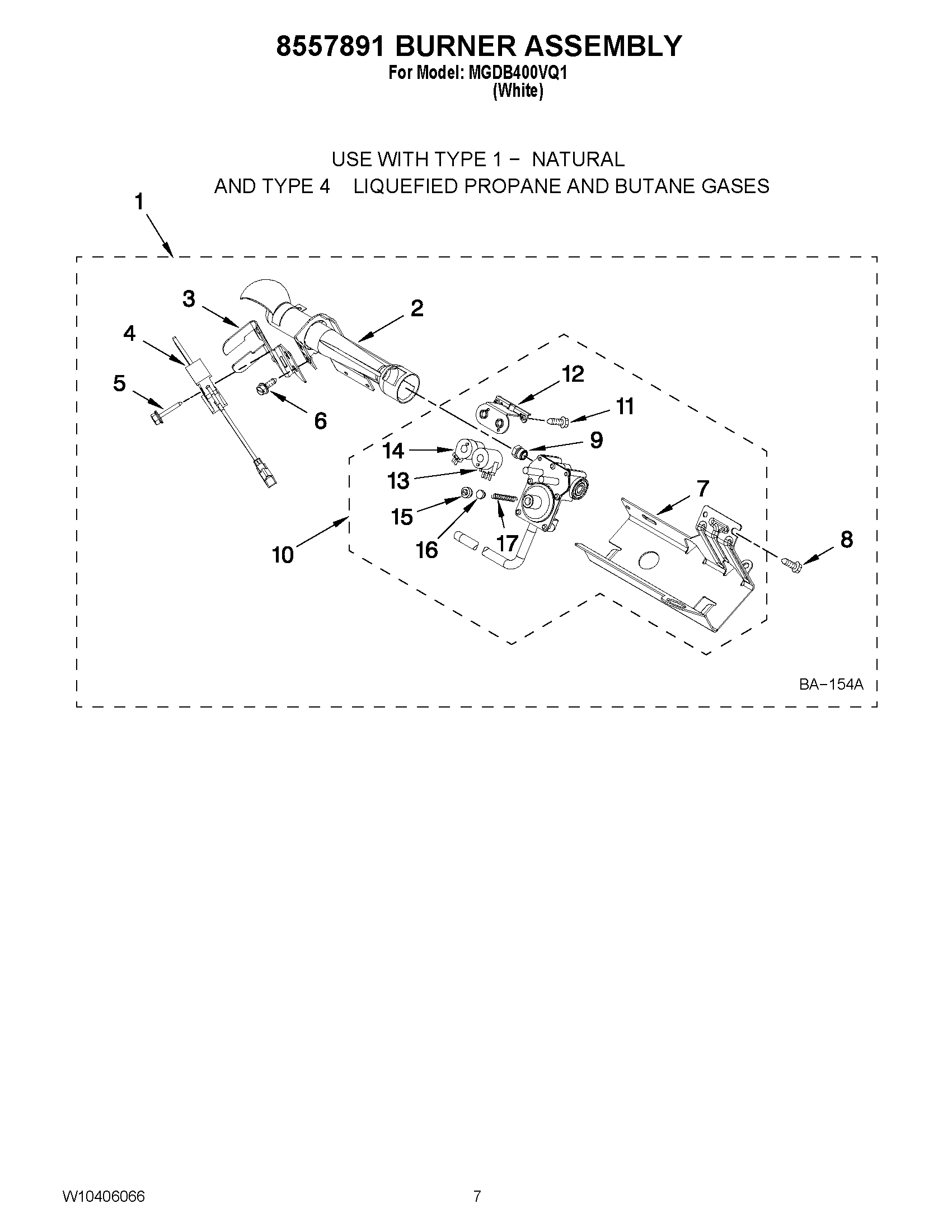

MGDB400VQ1 04 – 8557891 BURNER ASSEMBLY

MGDB400VQ1 04 – 8557891 BURNER ASSEMBLY

Written by

in

MGDB400VQ1 04 – 8557891 BURNER ASSEMBLY

Products

PositionProduct
NIConversion Kit (Type (1) to Type (4) LPG).
1MAY 8557891
2MAY 8573010
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY 8544751
8SCREW
9Orifice, Burner (Type 4 (Butane))
9Orifice, Burner (Type 4 (Propane))
9ORIFICE, BURNER (TYPE 1 (NATURAL))
10MAY 8573071
11SCREW, COIL
12MAY 8182790
13MAY 694540
14COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15MAY 694424
16MAY 694423
17MAY 694422
