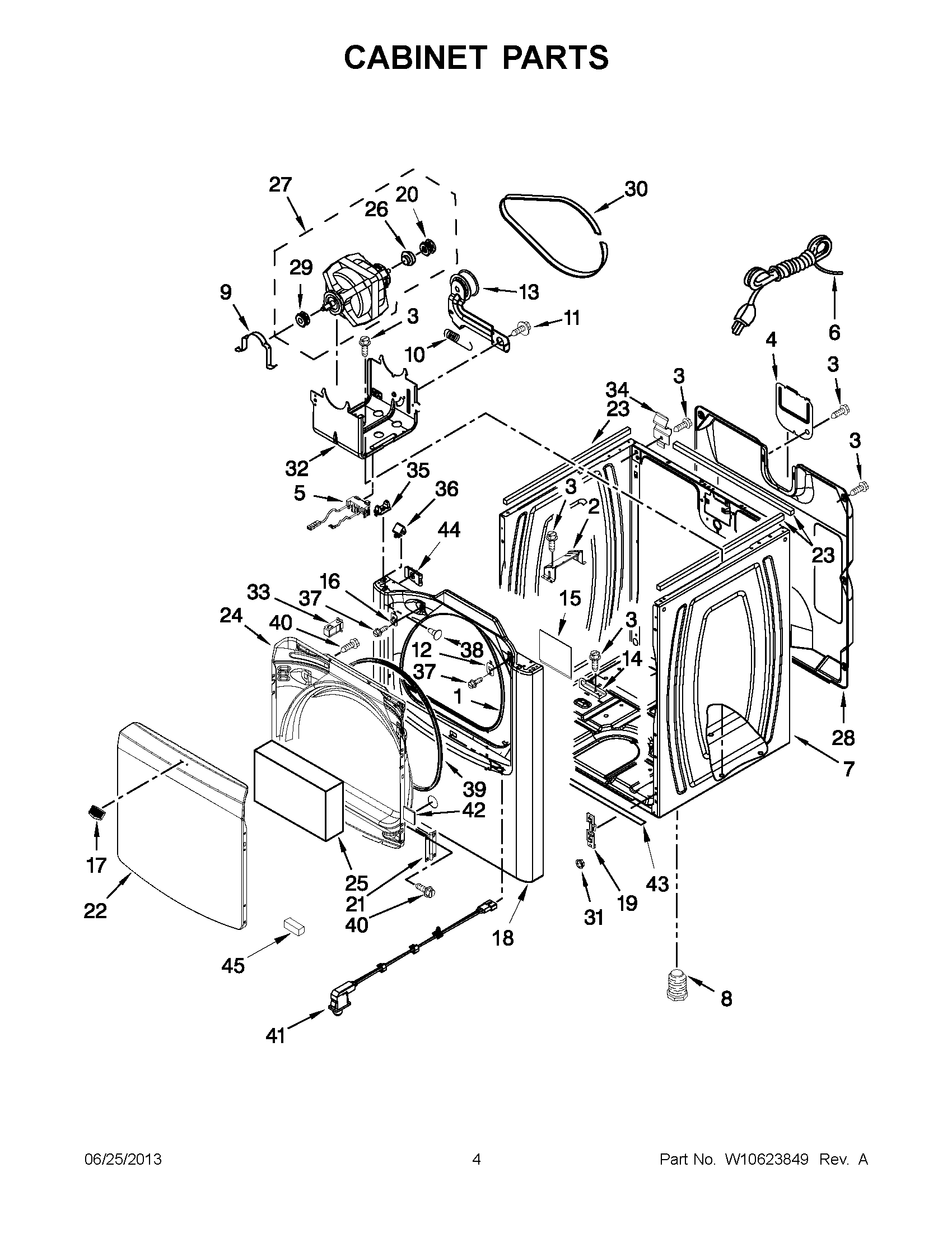

MGDB700BW0 02 – CABINET PARTS
Written by
in
MGDB700BW0 02 – CABINET PARTS
Products
Position
Product
1
MAY W10044490
2
MAY 8544753
3
SCREW
4
MAY 8558833
5
MAY W10411937
6
MAY W10440460
7
CABINET (INCLUDES ITEM 23) (WHITE)
8
MAY W10561321
9
MAY 660658
10
MAY W10446781
11
SCREW
12
MAY W10111888
13
IDLER ASSEMBLY
14
BRACKET, PIPE
15
MAY W10123956
16
Strike, Door
17
MAY W10492808
18
MAY W10594754
19
MAY 3394083
20
MAY W10136930
21
HINGE ASSEMBLY (WHITE)
22
MAY W10111876
23
SEAL, FOAM
24
MAY W10111879
25
MAY W10111867
26
MAY 3393657
27
MAY W10460374
28
MAY 8558830
29
MAY W10139247
30
MAY W10136934
32
MAY 8547158
33
MAY W10111905
34
MAY 238088
35
LOCATOR, SNAP-DOWN
36
Lock-Top Front (2)
37
MAY 3400805
38
MAY W10144494
39
MAY W10221653
40
MAY 342055
41
MAY W10350909
42
PLUG, FRONT PANEL (WHITE)
43
MAY W10224768
44
Clip, Ground
45
MAY 3350013
←
