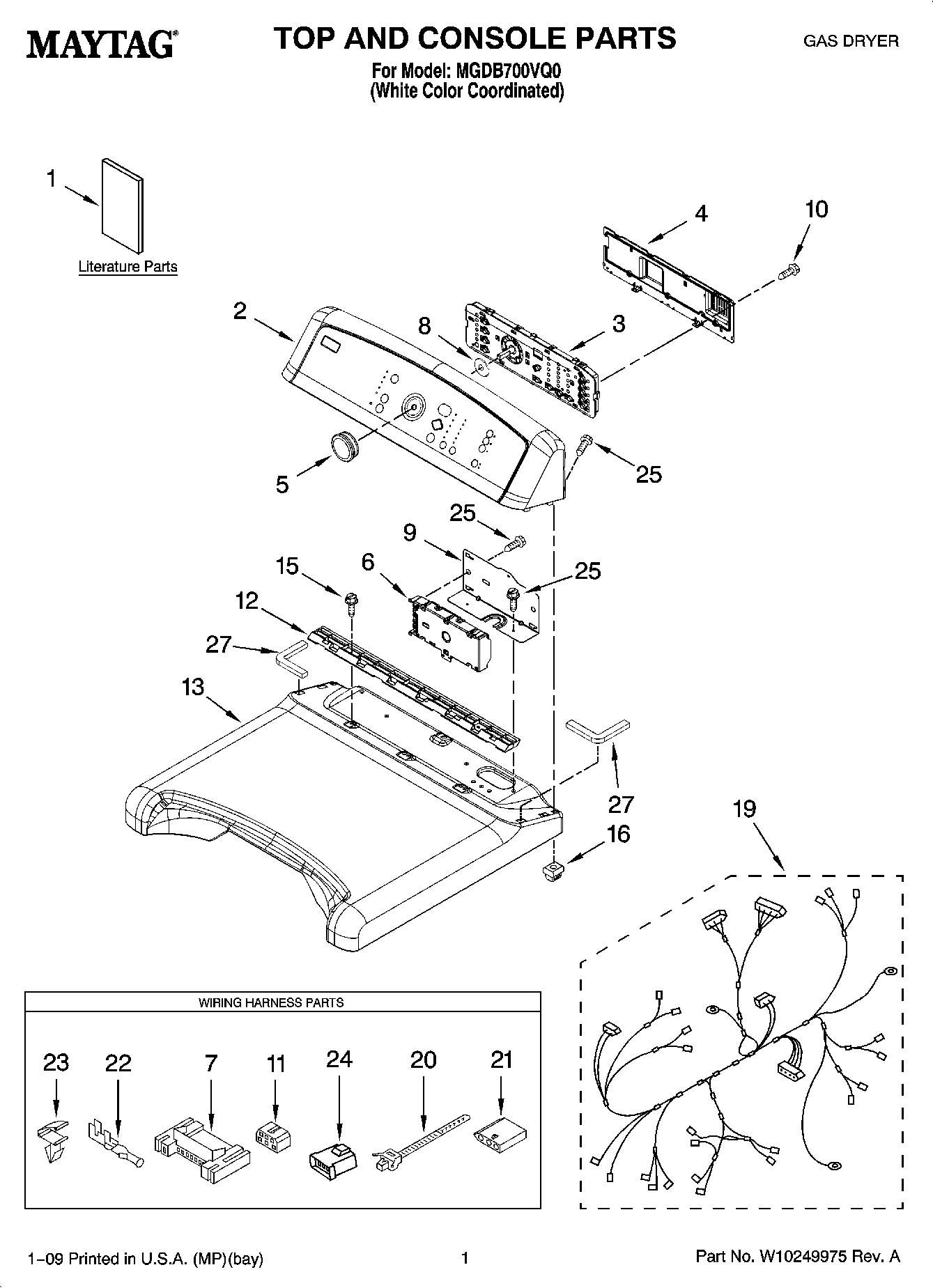

MGDB700VQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10201175
1	MAY W10201170
1	MAY W10200966
1	MAY W10156734
2	MAY W10110297
3	User Interface
4	COVER, REAR
5	MAY W10051126
6	MAY W10111621
7	CONNECTOR (MOTOR)
8	SEAL, UI
9	MAY 8563853
10	Screw, 6-19 x 3/64
11	Connector
12	MAY W10110295
13	Top (Includes Item. 8 )
15	Screw, 8-18 x 3/4
16	SCREW, GROMMET
19	MAY W10111056
20	MAY 3391018
21	MAY 3936144
22	Terminal
23	CLIP, HARNESS
24	MAY 3403498
25	Screw
27	Foam-Top (Left-Side)
27	Foam-Top (Right-Side)
