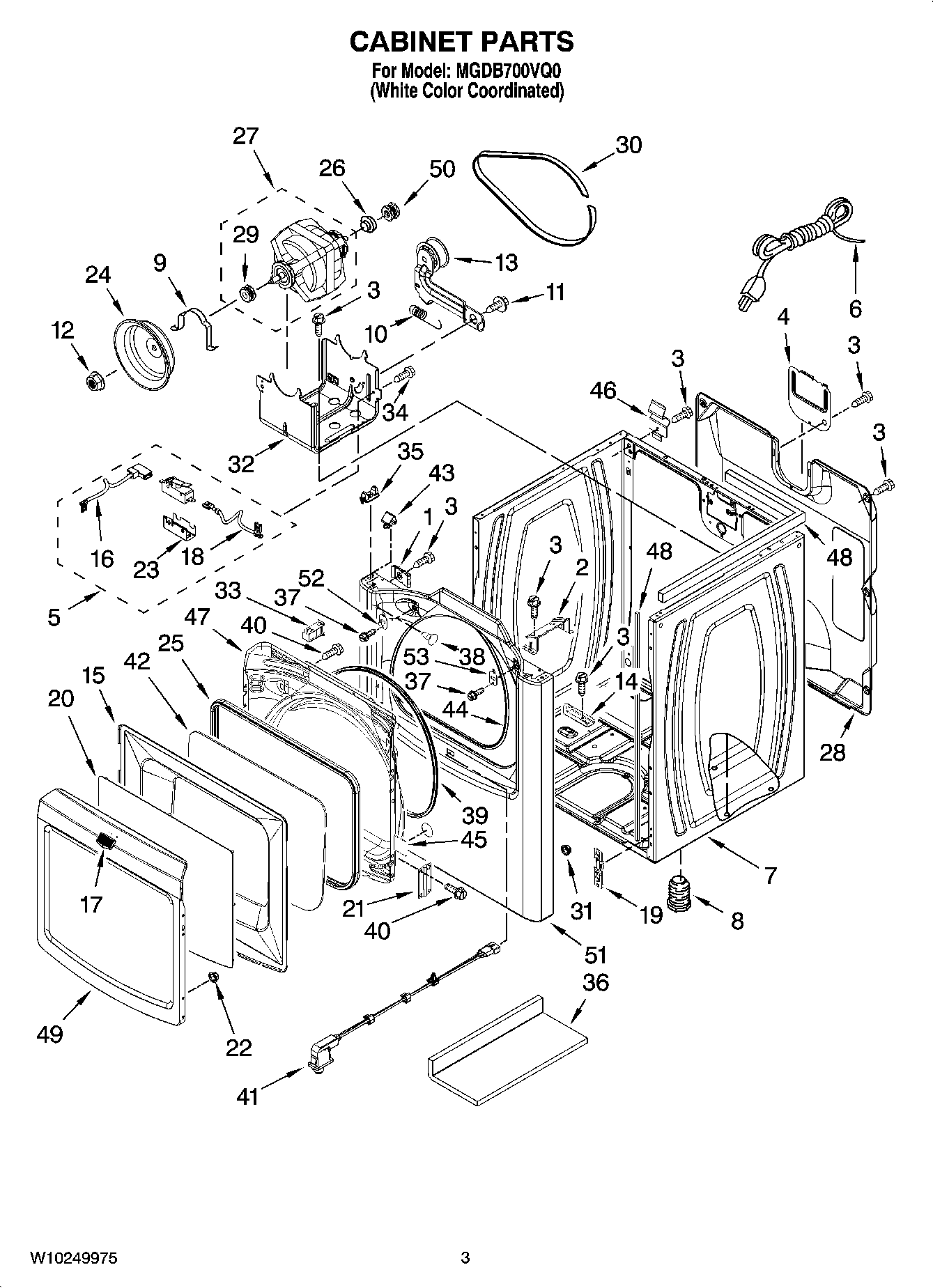

MGDB700VQ0 02 – CABINET PARTS

MGDB700VQ0 02 – CABINET PARTS

Written by

in

MGDB700VQ0 02 – CABINET PARTS

Products

PositionProduct
1Clip, Ground (2)
2MAY 8544753
3SCREW
4MAY 8558833
5MAY 8564012
6MAY 344020
7Cabinet (Includes Item 51 )
8MAY 3392100
8MAY 279810
9MAY 660658
10MAY 3387374
11SCREW
12MAY W10001340
13MAY 8547160
14BRACKET, PIPE
15MAY W10111880
16MAY 8539892
17MAY W10153170
18Wire, Belt (To Protector)
19MAY 3394083
20MAY W10111858
21HINGE ASSEMBLY
22SCREW, 10-16 X 1/2
23MAY 8564011
24Fly Wheel
25MAY W10111859
26MAY 3393657
27MAY W10136931
28MAY 8558830
29MAY W10139247
30MAY W10136934
31Plug, Hole
32MAY 8547158
33MAY W10111905
34Bolt, 6-20 x 1 1/4
35LOCATOR, SNAP-DOWN
36MAY W10215725
37MAY 3400805
38MAY W10144494
39MAY W10215728
40MAY 342055
41MAY W10201785
42MAY W10111857
43Lock-Top Front (2)
44MAY W10044490
45PLUG, FRONT PANEL (WHITE)
46MAY 238088
47Door, Inner
48Seal, Foam
49Door, Outer
50MAY W10136930
51Front Panel
52Strike, Door
53MAY W10111888
