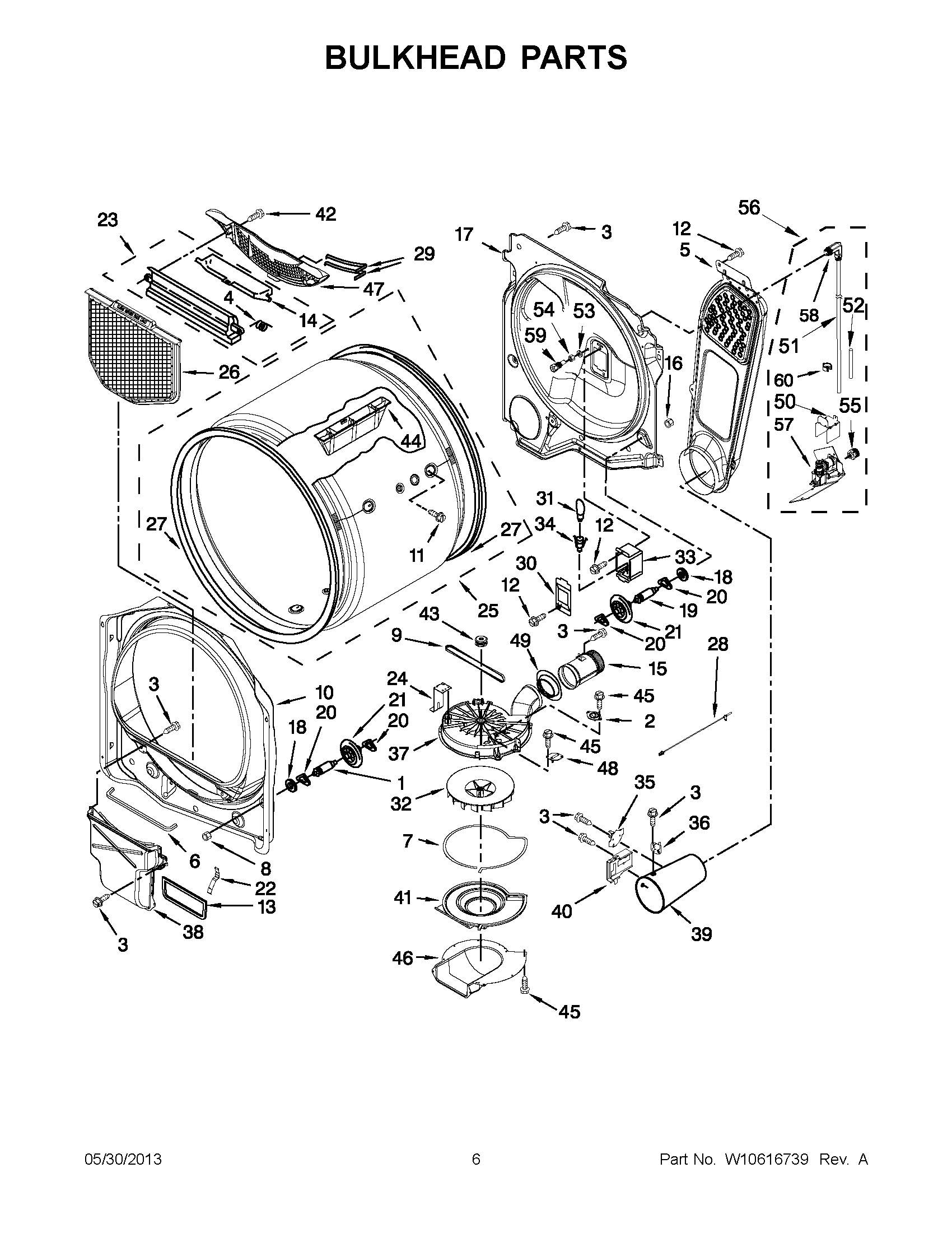

MGDB725BW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	THERMISTOR
3	SCREW,8-18 X 3/8
4	Spring, Lint Screen Door
5	MAY W10385948
6	MAY 697814
7	MAY 8573068
8	NUT, HEX
9	MAY 8544742
10	MAY 8557244
11	MAY W10219342
12	SCREW
13	MAY 8544721
14	MAY 3394984
15	MAY W10533417
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10139797
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 8573070
23	MAY 3394985
24	BRACKET, HOUSING BLOWER
25	DRUM ASSEMBLY
26	LINT SCREEN (WHITE)
27	MAY W10521119
28	MAY W10419068
29	SENSOR, ELECTRODE
30	MAY 3402841
31	MAY 3406124
32	MAY 8544737
33	MAY 3977373
34	MAY W10214261
35	CUT-OFF, THERMAL
36	THERMOSTAT, HI LIMIT
37	MAY W10256512
38	MAY 8544786
39	MAY 8573824
40	MAY 338906
41	BLOWER, COVER (INCLUDES, ITEM 11)
42	SCREW
43	MAY 8544739
44	MAY 8563860
45	MAY 3350424
46	MAY 8544718
47	Grille, Outlet
48	THERMAL FUSE (91C)
49	MAY W10475158
50	MAY W10160575
51	LINER (NOT A SERVICEABLE PART)
52	MAY W10435653
53	MAY W10044579
54	Nut, Brass 9/16 – 24 x 1/2
55	MAY W10044605
56	Valve & Hose (Complete)
57	MAY W10129424
58	ASSEMBLY, NOZZLE & HOSE (INCLUDES NOZZLE & SCREEN ASSEMBLY)
59	MAY W10277503
60	MAY W10044599
