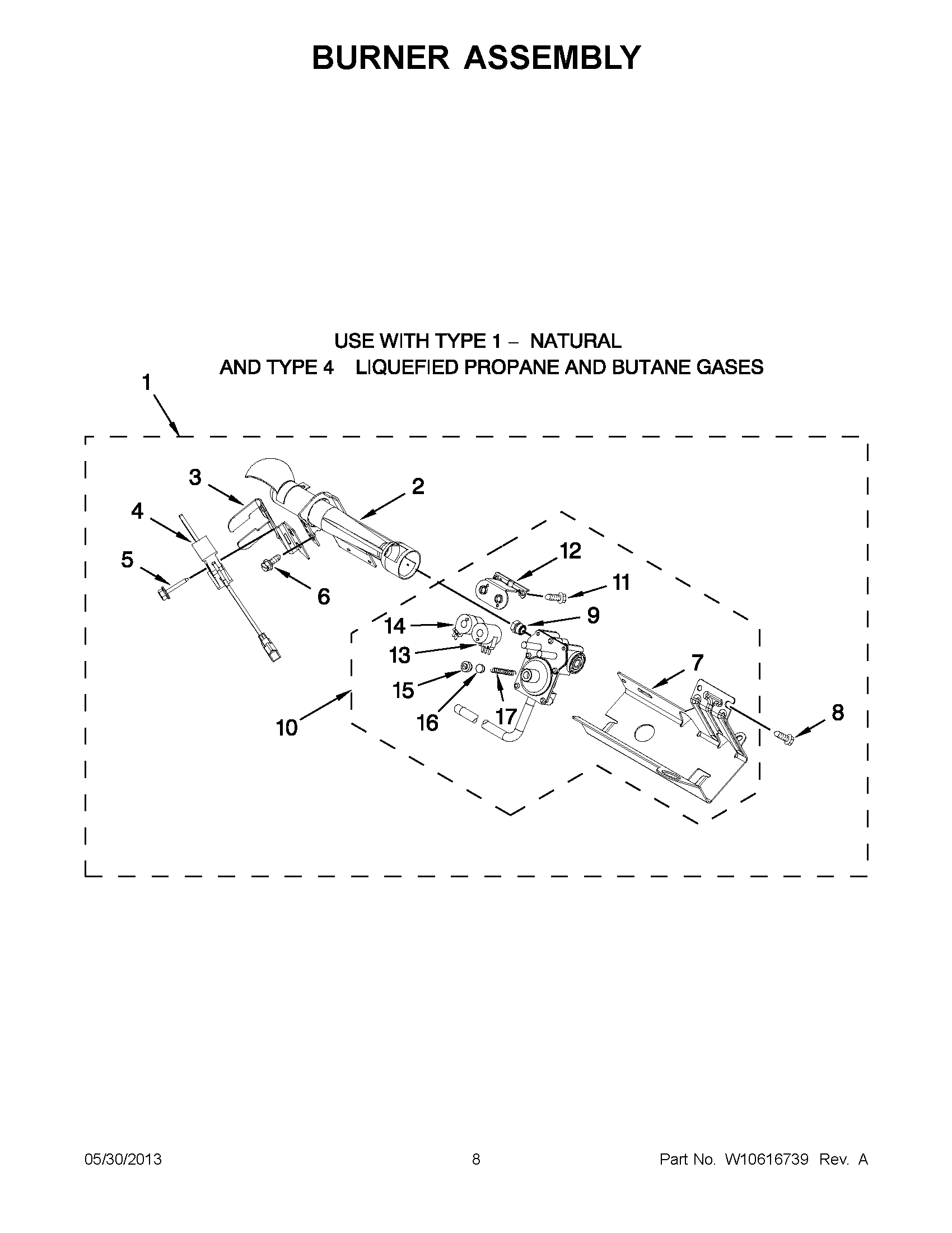

MGDB725BW0 04 – BURNER ASSEMBLY

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Conversion Kit (Type (1) to Type (4) LPG).
1	MAY 8557891
2	MAY W10536683
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY W10183823
8	SCREW
9	Orifice, Burner (Type 4 (Butane))
9	Orifice, Burner (Type 4 (Propane))
9	ORIFICE, BURNER (TYPE 1 (NATURAL))
10	MAY 8573071
11	SCREW, COIL
12	MAY 8182790
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
