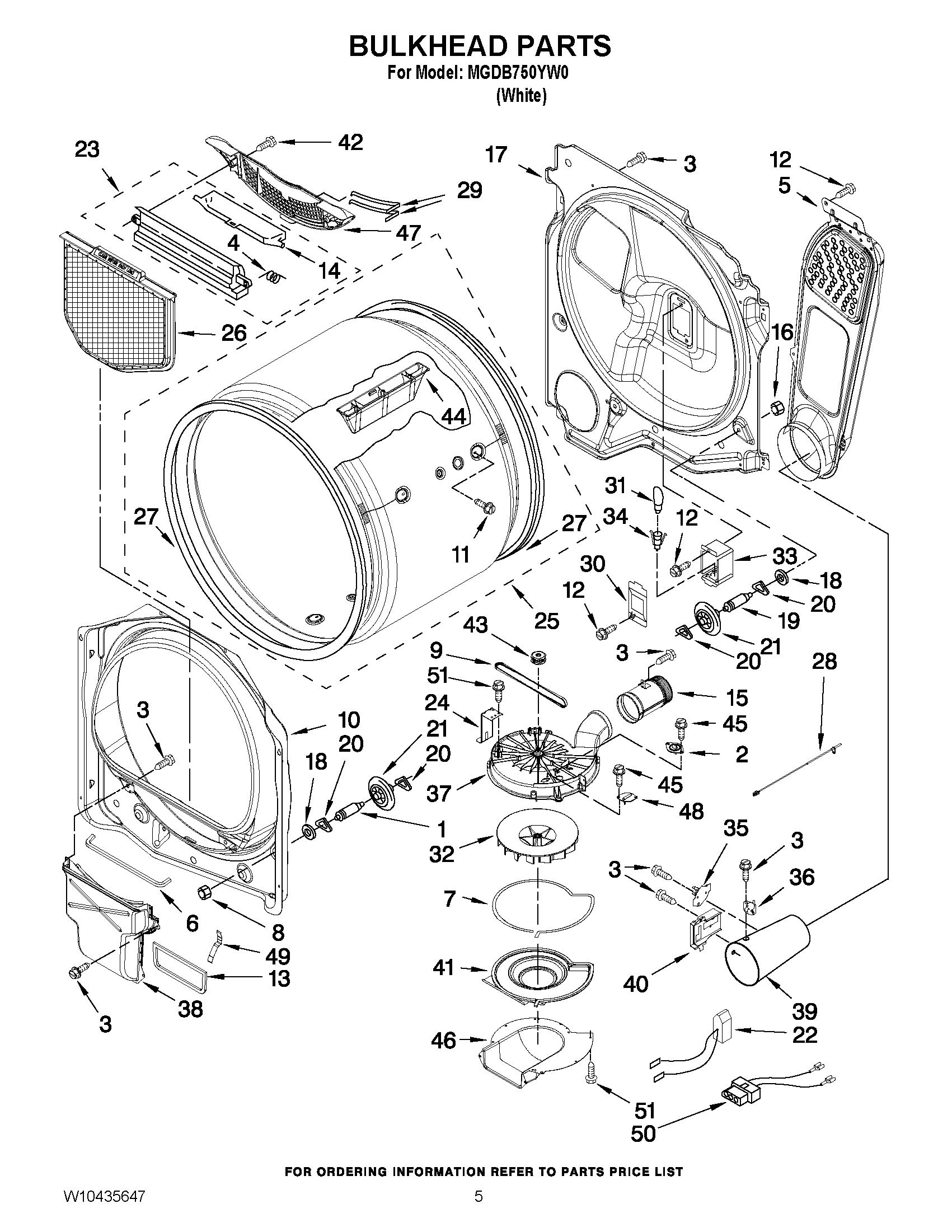

MGDB750YW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	THERMISTOR
3	SCREW,8-18 X 3/8
4	Spring, Lint Screen Door
5	MAY W10385948
6	MAY 697813
7	MAY 8573068
8	NUT, HEX
9	MAY 8544742
10	MAY 8557244
11	MAY W10219342
12	SCREW
13	MAY 8544721
14	MAY 3394984
15	MAY 8544755
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8557234
18	WASHER
19	SHAFT, DRUM ROLLER - LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 8539889
23	MAY 3394985
24	BRACKET, HOUSING BLOWER
25	MAY 8557269
26	MAY W10049370
27	MAY W10116344
28	MAY W10419068
29	SENSOR, ELECTRODE
30	MAY 3402841
31	MAY 3406124
32	MAY 8544737
33	MAY 3977373
34	MAY W10214261
35	CUT-OFF, THERMAL
36	THERMOSTAT, HI LIMIT
37	MAY W10256512
38	MAY 8544786
39	MAY 8573824
40	MAY 338906
41	BLOWER, COVER (INCLUDES, ITEM 11)
42	SCREW
43	MAY 8544739
44	MAY 8563860
45	MAY 3350424
46	MAY 8544718
47	Grille, Outlet
48	THERMAL FUSE (91C)
49	MAY 8573070
50	Connector Sensor
51	MAY 97787
