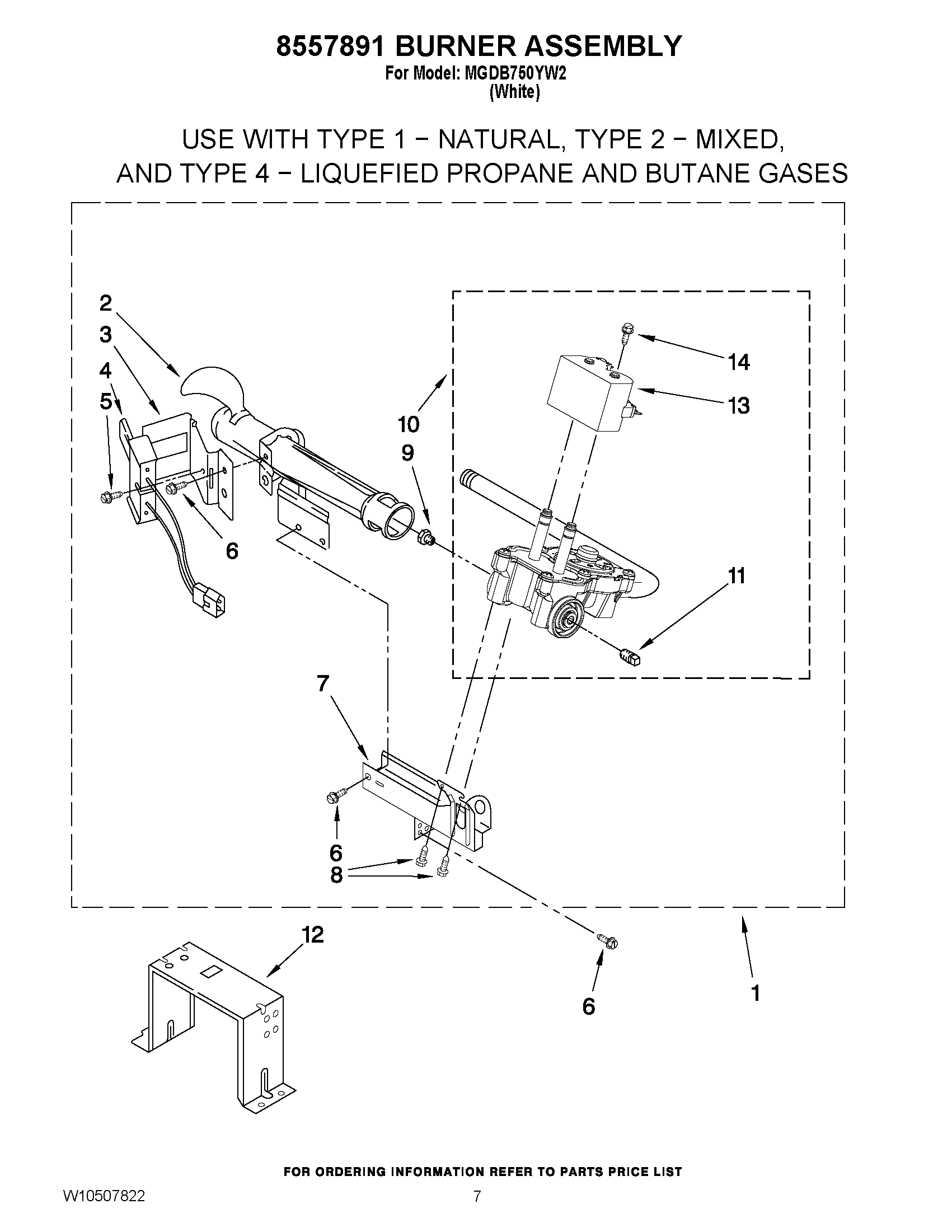

MGDB750YW2 04 – 8557891 BURNER ASSEMBLY

MGDB750YW2 04 – 8557891 BURNER ASSEMBLY

Written by

in

MGDB750YW2 04 – 8557891 BURNER ASSEMBLY

Products

PositionProduct
NICONVERSION KIT
1MAY W10398742
2MAY 8573010
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY W10183823
8SCREW
9LINER (NOT A SERVICEABLE PART)
10MAY W10304606
11MAY W10295523
12MAY 8544753
13MAY W10368268
14MAY 326049536
