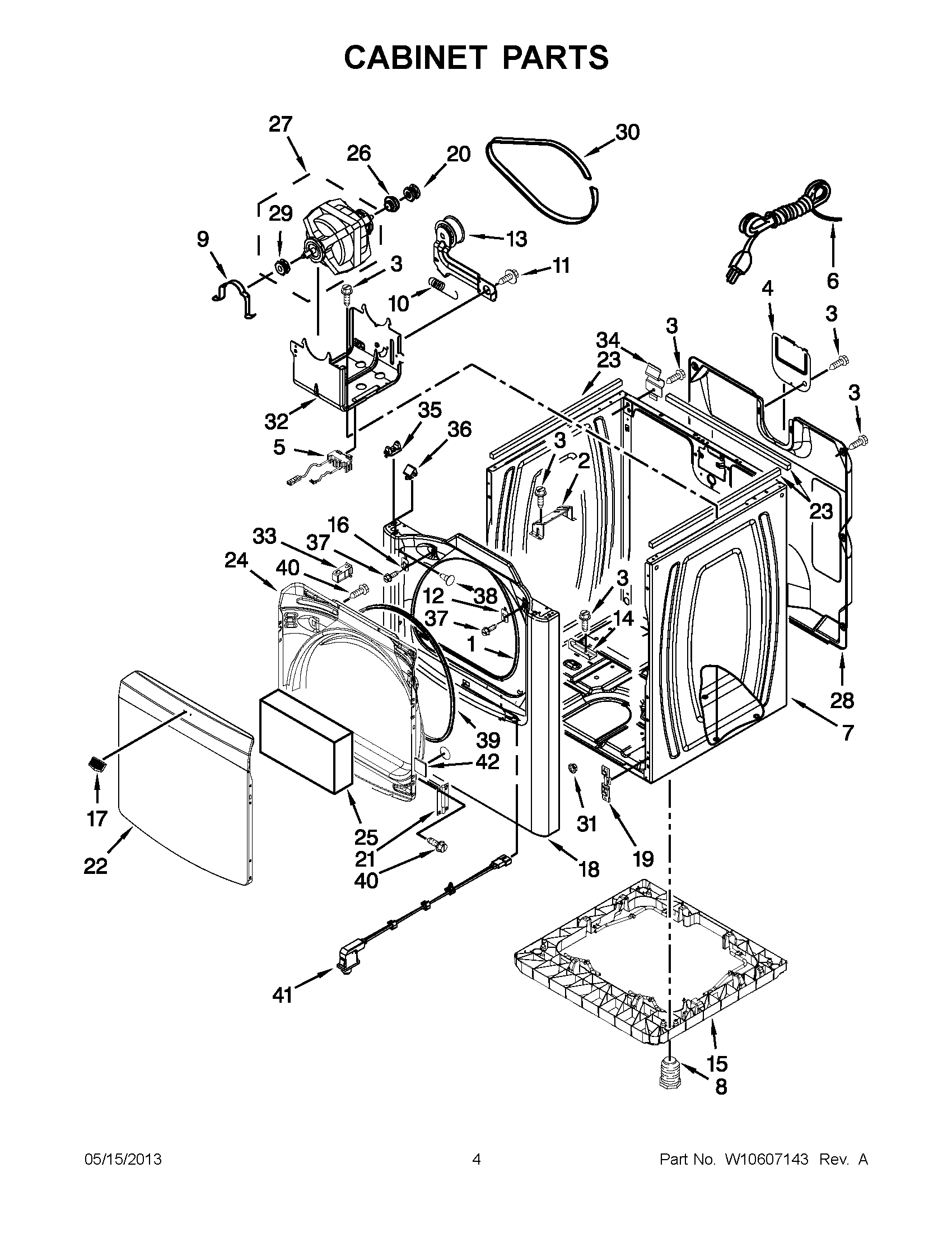

MGDB750YW3 02 – CABINET PARTS

Products

Position	Product
1	MAY W10044490
2	MAY 8544753
3	SCREW
4	MAY 8558833
5	MAY W10411937
6	MAY W10440460
7	Cabinet (Includes Item 51 )
8	MAY W10363894
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY W10111888
13	IDLER ASSEMBLY
14	BRACKET, PIPE
15	RISER, FULL
16	Strike, Door
17	MAY W10492808
18	MAY W10463262
19	MAY 3394083
20	MAY W10136930
21	HINGE ASSEMBLY (WHITE)
22	MAY W10111876
23	SEAL, FOAM
24	MAY W10111879
25	MAY W10111867
26	MAY 3393657
27	MAY W10460374
28	MAY 8558830
29	MAY W10139247
30	MAY W10136934
32	MAY 8547158
33	MAY W10111905
34	MAY 238088
35	LOCATOR, SNAP-DOWN
36	Lock-Top Front (2)
37	MAY 3400805
38	MAY W10144494
39	MAY W10221653
40	MAY 342055
41	MAY W10350909
42	PLUG, FRONT PANEL (WHITE)
